Gigabyte GA-8S648 User Manual

- 17 - Hardware Installation Process
English

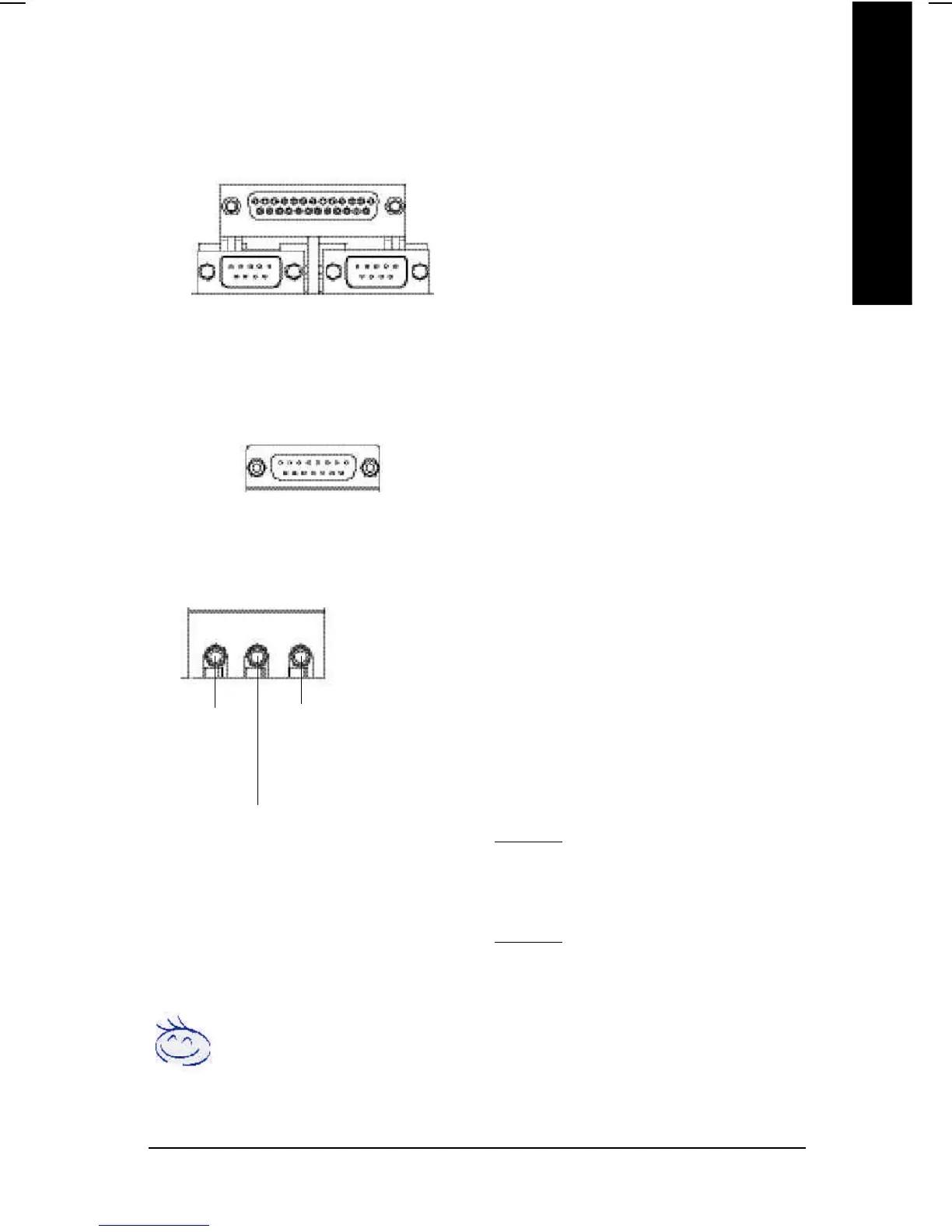

x Game /MIDI Ports
y Audio Connectors
Ø This connector supports joystick, MIDI
keyboard and other relate audio devices.
Ø After install onboard audio driver, you may
connect speaker to Line Out jack, micro phone
to MIC In jack.
Device like CD-ROM , walkman etc can be
connected to Line-In jack.
Please note:
You are able to use 2-/4-/6- channel audio
feature by S/W selection.
If you want to enable 6-channel function, you
have2 choose for hardware connection.
Method1:
Connect "Front Speaker" to "Line Out"
Connect "Rear Speaker" to "Line In"
Connect "Center and Subwoofer" to "MIC Out".
Method2:
You can refer to page 24, and contact your
nearest dealer for optional SUR_CEN cable.
w Parallel Port and Serial Ports (COMA/COMB)
Ø This connector supports 2 standard COM ports
and 1 Parallel port. Device like printer can be
connected to Parallel port ; mouse and modem
etc can be connected to Serial ports.
Parallel Port
(25 pin Female)
Joystick/ MIDI (15 pin Female)
If you want the detail information for 2-/4-/6-channel audio setup
installation, please refer to page 61.
COMA COMB
Serial Port (9 pin Male)
MIC In
(Center and Subwoofer)
Line In
(Rear Speaker)
Line Out
(Front
Speaker)
