- 23 - Hardware Installation Process
English

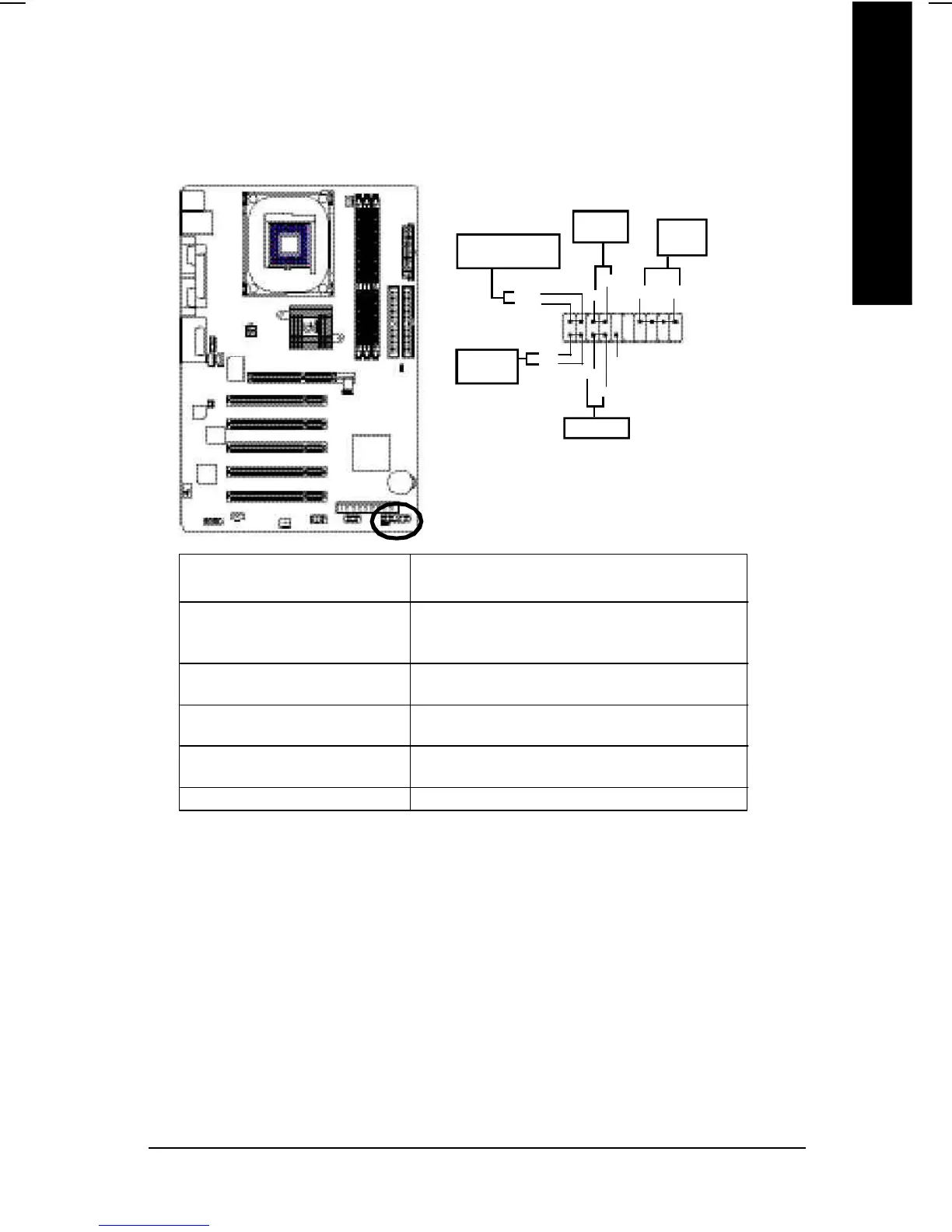

9) F_PANEL (2x10 pins connector)
Please connect the power LED, PC peaker, reset switch and power switch etc of your chassis front panel
to the F_PANEL connector according to the pin assignment above.
SPK-
SPK+
20
Speaker
Connector
1
19
IDE Hard Disk
Active LED
Reset Switch
2
1
Soft Power
Connector
1
MPD+
MPD-
Message LED/Power/
Sleep LED
PW-
PW+
1
HD+
HD-
1
RSE+
RSE-
NC
1
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
(Blue) Pin 2: LED cathode(-)
SPEAK (Speaker Connector) Pin 1: VCC(+)
(Amber) Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch) Open: Normal Operation
(Green) Close: Reset Hardware System
PW (Soft Power Connector) Open: Normal Operation
(Red) Close: Power On/Off
MSG(Message LED/Power/ Pin 1: LED anode(+)
Sleep LED)(Yellow) Pin 2: LED cathode(-)
NC( Purple) NC
To Next Page
