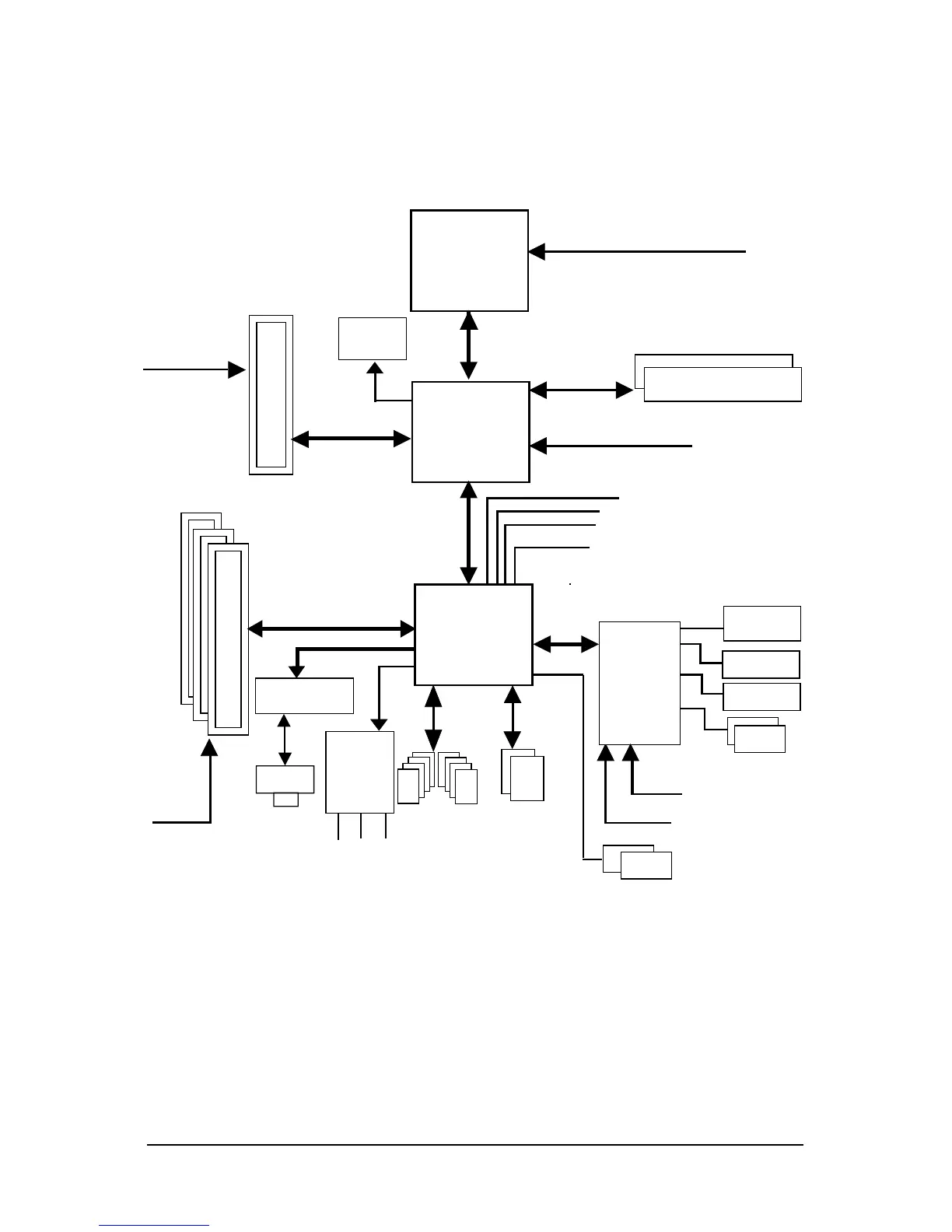

Block Diagram
Pentium 4
Socket 478
CPU
SiS 661GX
SiS 964L
CPUCLK+/- (100/133MHz)
Host
Interface
DDR RAM
266/333/400MHz
HCLK+/- (100/133/200MHz)
133MHz
33 MHz
14.318 MHz
48 MHz
24 MHz
33 MHz
LPC BUS
AGP 4X/8X
AGPCLK
(66MHz)
3 PCI
PCICLK
(33MHz)
AC97 Link
8 USB
Ports
ATA33/66/100/
133 IDE
Channels
Floppy
LPT Port
PS/2
KB/Mouse
COM
Ports
IT8705AF
BIOS
ICS1883*
AC97
CODEC
MIC
LINE-IN
LINE-OUT
RJ45*
VGA Port
"*" Only for GA-8S661GXMP
