Gigabyte GA-970A-DS3P User Manual

- 15 -

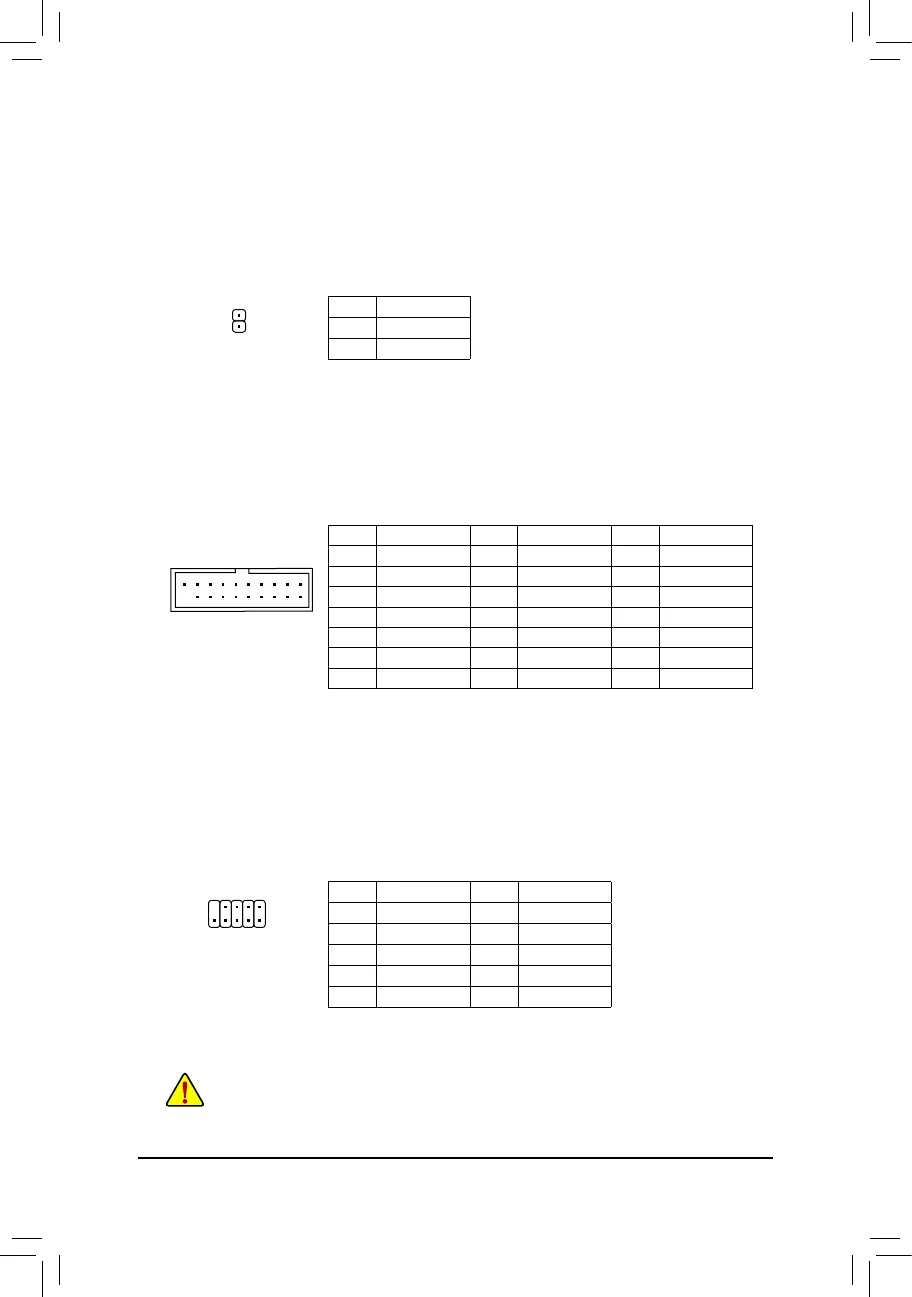

11) SPDIF_O (S/PDIF Out Header)
 

sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for
digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display
to the graphics card and have digital audio output from the HDMI display at the same time. For information
about connecting the S/PDIF digital audio cable, carefully read the manual for your expansion card.
1
Pin No. 
1 SPDIFO
2 GND
13) F_USB1/F_USB2/F_USB3 (USB Headers)
 
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
• 
• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord
from the power outlet to prevent damage to the USB bracket.
10
9
2
1
12) F_USB30 (USB 3.0/2.0 Header)
 
optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer.
10
20
1
11
Pin No.  Pin No. 
1  6 USB DY+
2  7 GND
3 USB DX- 8 GND
4 USB DY- 9 No Pin
5 USB DX+ 10 NC
Pin No.  Pin No.  Pin No. 
1 VBUS 8 D1- 15 SSTX2-
2 SSRX1- 9 D1+ 16 GND
3 SSRX1+ 10 NC 17 SSRX2+
4 GND 11 D2+ 18 SSRX2-
5 SSTX1- 12 D2- 19 VBUS
6 SSTX1+ 13 GND 20 No Pin
7 GND 14 SSTX2+

Gigabyte GA-970A-DS3P Specifications

General

Memory voltage	1.5 V
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000 MHz
System bus rate	4.8 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
USB 2.0 connectors	6
Power fan connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Component for	PC
Motherboard chipset	AMD 970
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 8/7/Vista/XP
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Bundled software	Norton Internet Security
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD

Weight and Dimensions

Depth	225 mm
Width	305 mm
