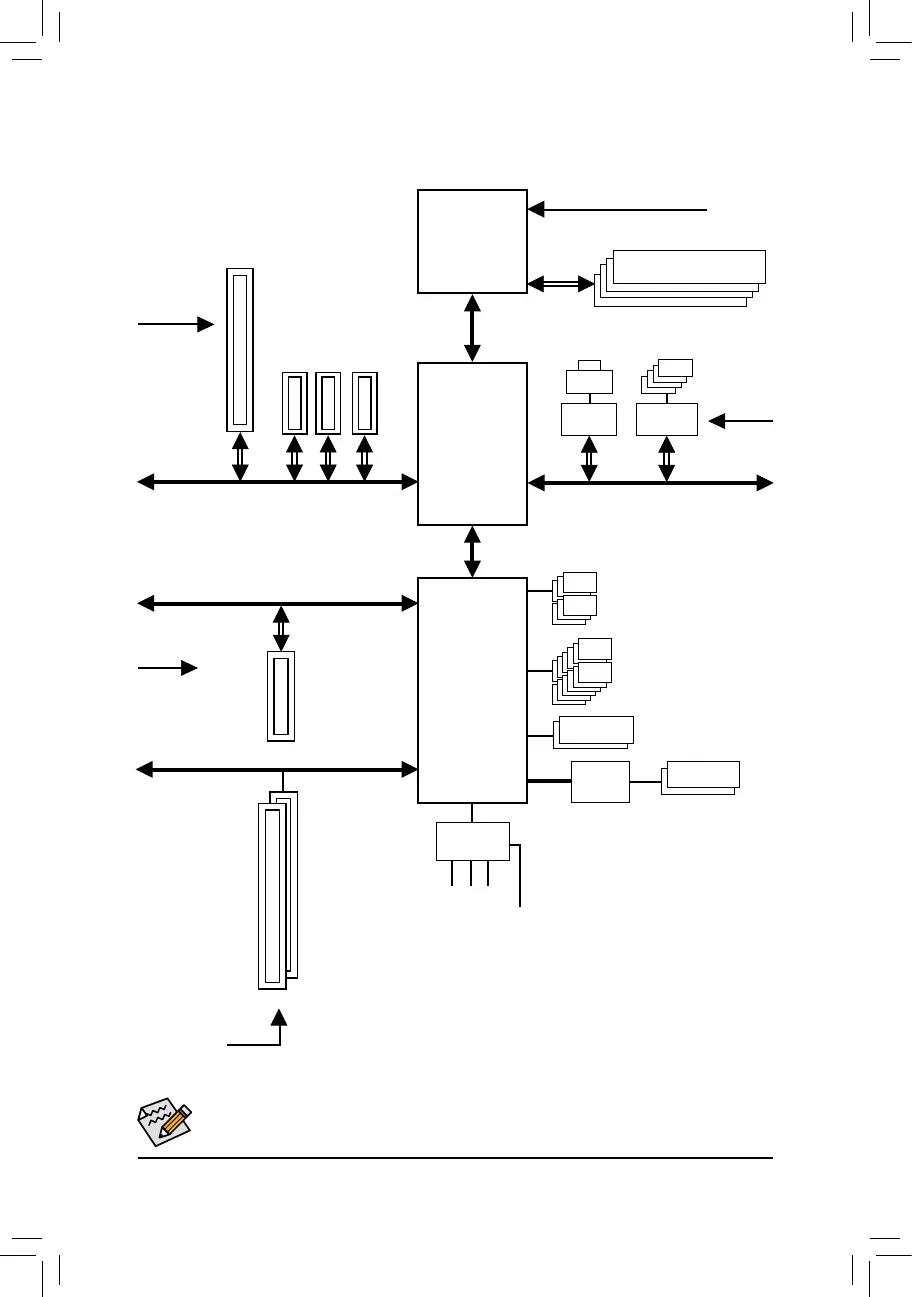

GA-970A-DS3P Motherboard Block Diagram

AMD 970

Dual Channel Memory
PCI Bus
AM3+/AM3 CPU
2 PCI
PCI CLK



iTE
®
Super I/O
LPC
Bus
PS/2 KB/Mouse
Dual BIOS
12 USB 2.0/1.1
6 SATA 6Gb/s
AMD SB950
PCI Express Bus
PCIe CLK

PCIe CLK

1 PCI Express x16
x16
x4
x1 x1 x1
3 PCI Express x1
1 PCI Express x4
x1
LAN
RJ45
Realtek
®
GbE LAN
PCIe CLK

4 USB 3.0/2.0
x1
VIA
®
VL805
Hyper Transport Bus
PCI Express Bus
PCI Express Bus



S/PDIF Out
CODEC

Gigabyte GA-970A-DS3P Specifications

General

Memory voltage	1.5 V
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000 MHz
System bus rate	4.8 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
USB 2.0 connectors	6
Power fan connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Component for	PC
Motherboard chipset	AMD 970
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 8/7/Vista/XP
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Bundled software	Norton Internet Security
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD

Weight and Dimensions

Depth	225 mm
Width	305 mm
