- 4 -

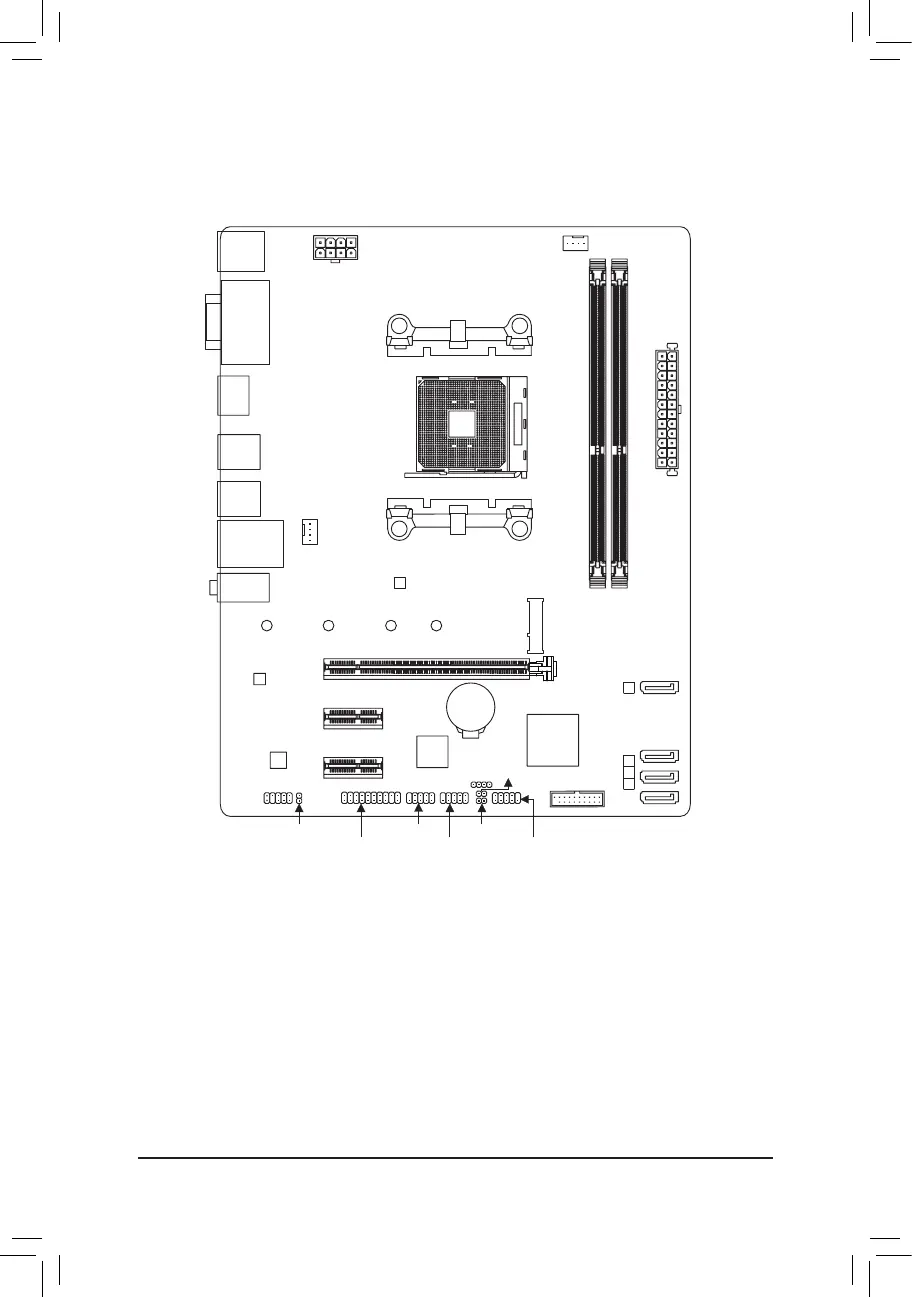

GA-A320M-S2H V2 Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 GA-A320M-S2H V2 motherboard 5 Two SATA cables
5 Motherboard driver disk 5 I/O Shield
5 User's Manual
KB_MS
CPU_FAN
SYS_FAN1
ATX
GA-A320M-S2H V2
AUDIO
DDR4_2
DDR4_1
BAT
ATX_12V
AMD
B350
R_USB30_1
HDMI
CODEC
M_BIOS
VGA
DVI
PCIEX16
PCIEX1_1
PCIEX1_2
iTE
®
Super I/O
Realtek
®
GbE LAN
F_USB30
CI
SPEAKER
F_USB1
F_PANEL
F_USB2SPDIF_O
SATA3
0 1 2
USB_LAN
Socket AM4
R_USB30_2
3
CLR_CMOS
TPM
F_AUDIO
M2F_32G
80 60 42110
SATA3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte GA-A320M-S2H V2 and is the answer not in the manual?

Gigabyte GA-A320M-S2H V2 Specifications

General IconGeneral
Audio chipRealtek ALC887
CertificationCE, FCC
Component for-
Motherboard chipsetAMD B350
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Windows operating systems supportedYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR4-SDRAM
Maximum internal memory32 GB
Supported memory clock speeds2133, 2400, 2667, 2933, 3200 MHz
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon X4, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
RAID levels0, 1, 10
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Maximum resolution4096 x 2160 pixels
Maximum graphics card memory2000 MB
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size16 Mbit
Desktop Management Interface (DMI) version2.7
Bundled softwareNorton® Internet Security (OEM version) cFosSpeed
Harmonized System (HS) code84733020
