- 18 -

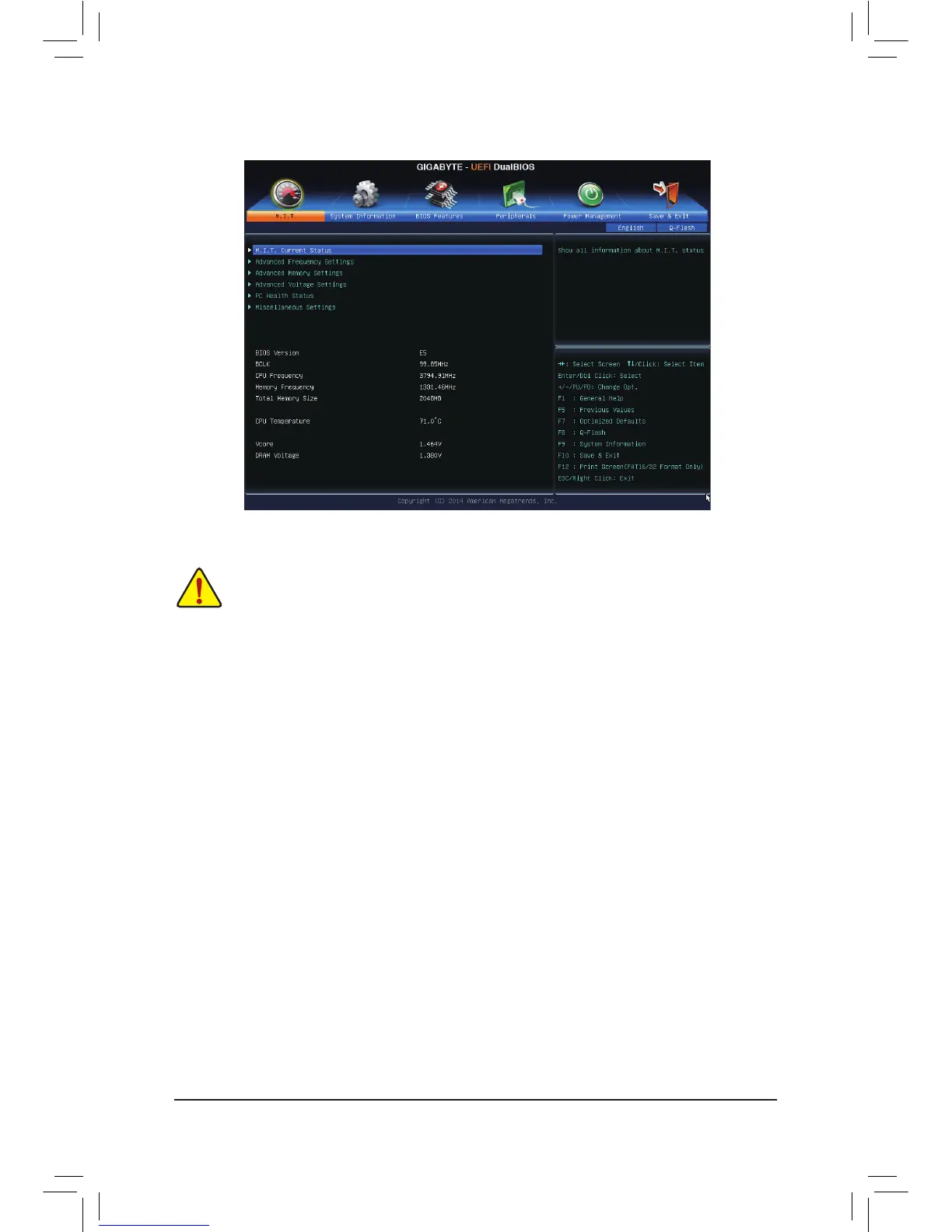

2-2 M.I.T.
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall
system congurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings
may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,
total memory size, CPU temperature, Vcore, and memory voltage.
` M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.
` Advanced Frequency Settings
& CPU Clock Control
Allows you to manually set the CPU base clock in 1 MHz increments. (Default: Auto)
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& Processor Graphics Clock
Allows you to set the onboard graphics clock. The adjustable range is from 300 MHz to 2000 MHz.
& CPUNorthBridgeFrequency
Allows you to manually set the CPU North Bridge frequency. The adjustable range is from 800 MHz to 6000
MHz.
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& CPU Frequency
Displays the current operating CPU frequency.
` Advanced CPU Core Features
& CPU Clock Ratio, CPU Frequency
The settings above are synchronous to those under the same items on the Advanced Frequency Settings
menu.
(Note) This item is present only when you install a CPU that supports this feature.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte GA-F2A68HM-S1 and is the answer not in the manual?

Gigabyte GA-F2A68HM-S1 Specifications

General IconGeneral
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR3-SDRAM
Maximum internal memory64 GB
Supported memory clock speeds1333, 1600, 1866, 2133, 2400 MHz
Processor socketSocket FM2+
Processor manufacturerAMD
Compatible processor seriesAMD A
Maximum number of SMP processors1
S/PDIF out connectorYes
Number of SATA III connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
RAID levels0, 1, 10, JBOD
Supported storage drive interfacesSATA III
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface typeGigabit Ethernet
Component forPC
Power source typeATX
Motherboard chipsetAMD A68H
PC health monitoringFAN, Temperature, Voltage
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
Maximum graphics card memory2048 MB
Parallel processing technology support-
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size64 Mbit
Bundled softwareNorton Internet Security (OEM)
Weight and Dimensions IconWeight and Dimensions
Depth174 mm
Width225 mm
