Gigabyte GA-H270N-WIFI User Manual

(Note) The connector/chip is on the back of the motherboard.
- 5 -
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.

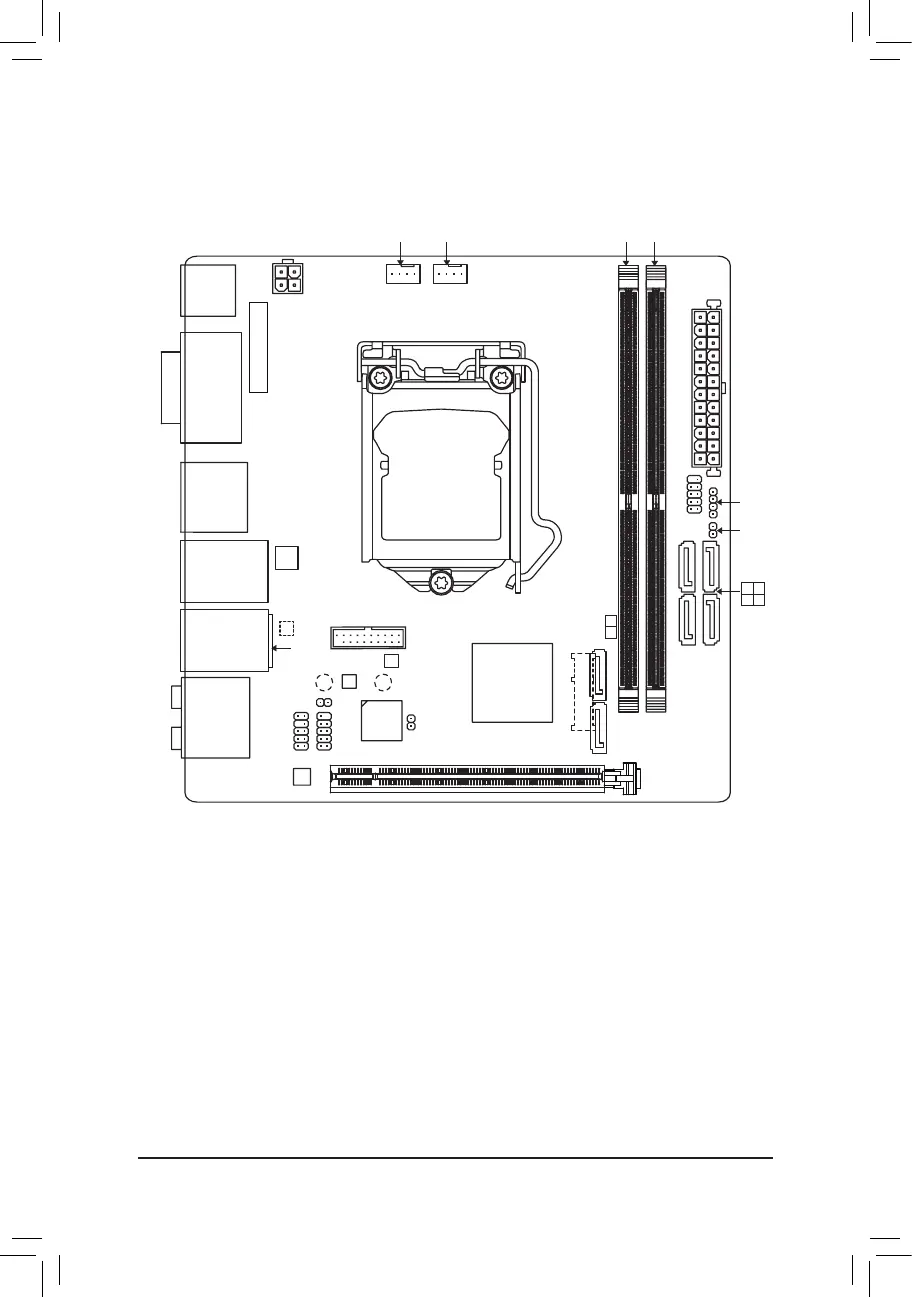

GA-Z270N-WIFI/GA-H270N-WIFI Motherboard Layout
Box Contents
5 GA-Z270N-WIFI or GA-H270N-WIFI motherboard
5 Motherboard driver disk 5 Wireless module driver disk
5 User's Manual
5 Quick Installation Guide
5 One antenna
5 I/O Shield
5 Two SATA cables
M Only for GA-Z270N-WIFI.
N Only for GA-H270N-WIFI.
KB_MS_USB3
DOUBLE_HDMI
SYS_FAN
LGA1151
ATX
GA-Z270N-WIFI GA-H270N-WIFI
F_AUDIO
AUDIO
F_USB1
DDR4_1 DDR4_2
BAT
ATX_12V
Intel
®
Z270M
Intel
®
H270N
DVI ANTENNA-BRACKET
USB30_LAN1
LAN2
CODEC
SPEAKER
iTE
®
Super I/O
F_PANEL
WIFI Module
SPDIF_O
Intel
®
GbE
LAN
Intel
®
GbE
LAN
(Note)
4
5
CPU_FAN
3 1 2 0
SATA3
M2_WIFI
SATA3
CI
M_BIOS
B_BIOS
F_USB30
PCIEX16
TYPE_C
M.2
(Note)
CLR_CMOS

Gigabyte GA-H270N-WIFI Specifications

General

RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H270
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Linux operating systems supported	Yes
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2400, 2133 MHz
Supported memory module capacities	16GB
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet interface type	Fast Ethernet, Gigabit Ethernet

Weight and Dimensions

Width	170 mm
