1-3 Installing the CPU
Read the following guidelines before you begin to install the CPU:
Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
Apply an even and thin layer of thermal grease on the surface of the CPU.
Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics
card, memory, hard drive, etc.

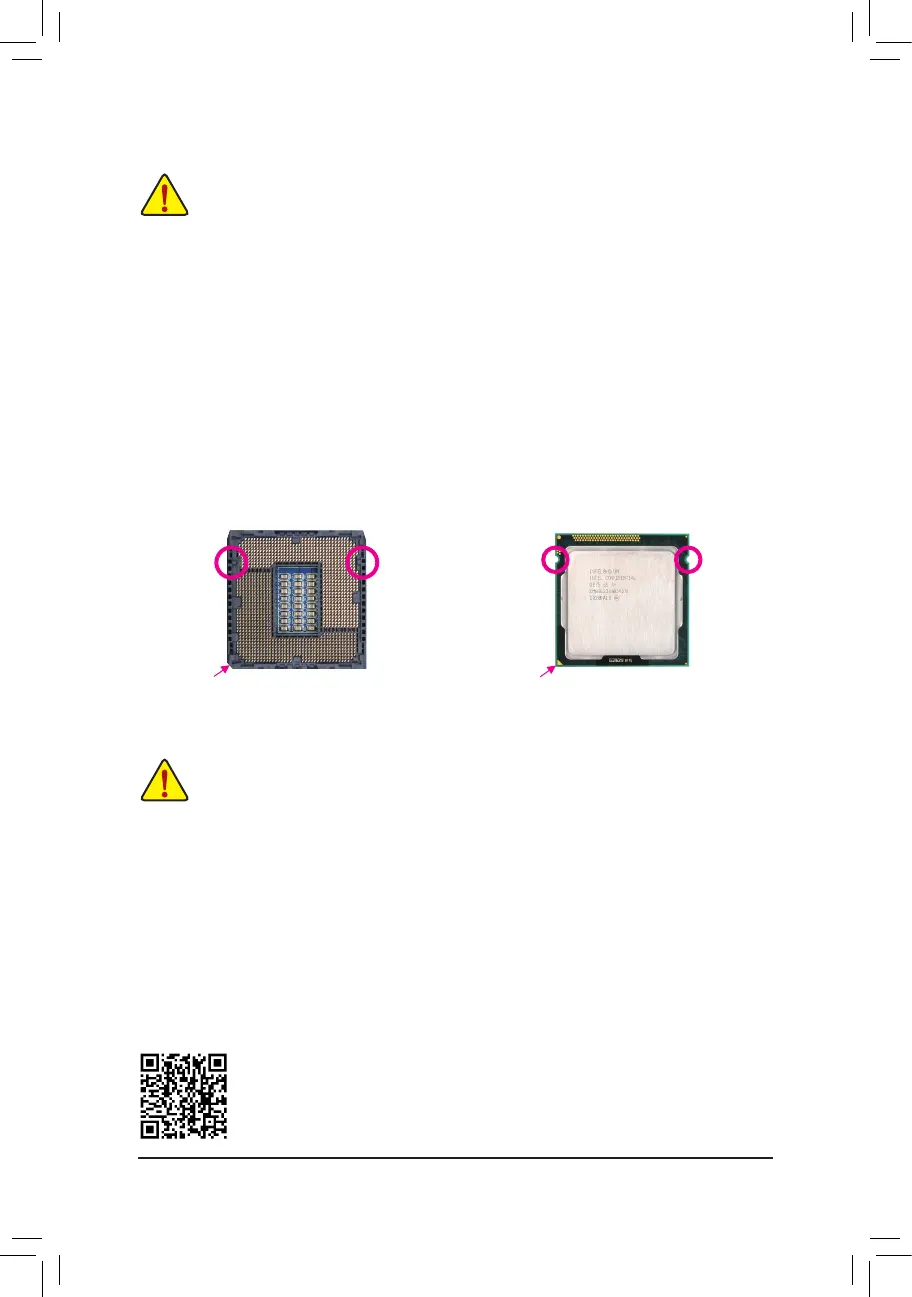

Installing the CPU
Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
DualChannelMemoryConguration
This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory
isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual
Channel memory mode will double the original memory bandwidth.
The two memory sockets are divided into two channels and each channel has one memory socket as following:
Channel A: DDR3_1
Channel B: DDR3_2
Please visit GIGABYTE's website for details on hardware installation.
Notch
Alignment KeyAlignment Key
Notch
LGA1155 CPU
LGA1155 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU
- 8 -

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte GA-H61M-DS2 R2 and is the answer not in the manual?

Gigabyte GA-H61M-DS2 R2 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel H61
CPU SocketLGA 1155
Memory Slots2 x DDR3 DIMM
Maximum Memory16 GB
AudioRealtek ALC887
Storage Interface4 x SATA 3Gb/s
LANRealtek GbE LAN
Expansion Slots1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports8 x USB 2.0
Video Outputs1 x D-Sub
Power Connector24-pin ATX
