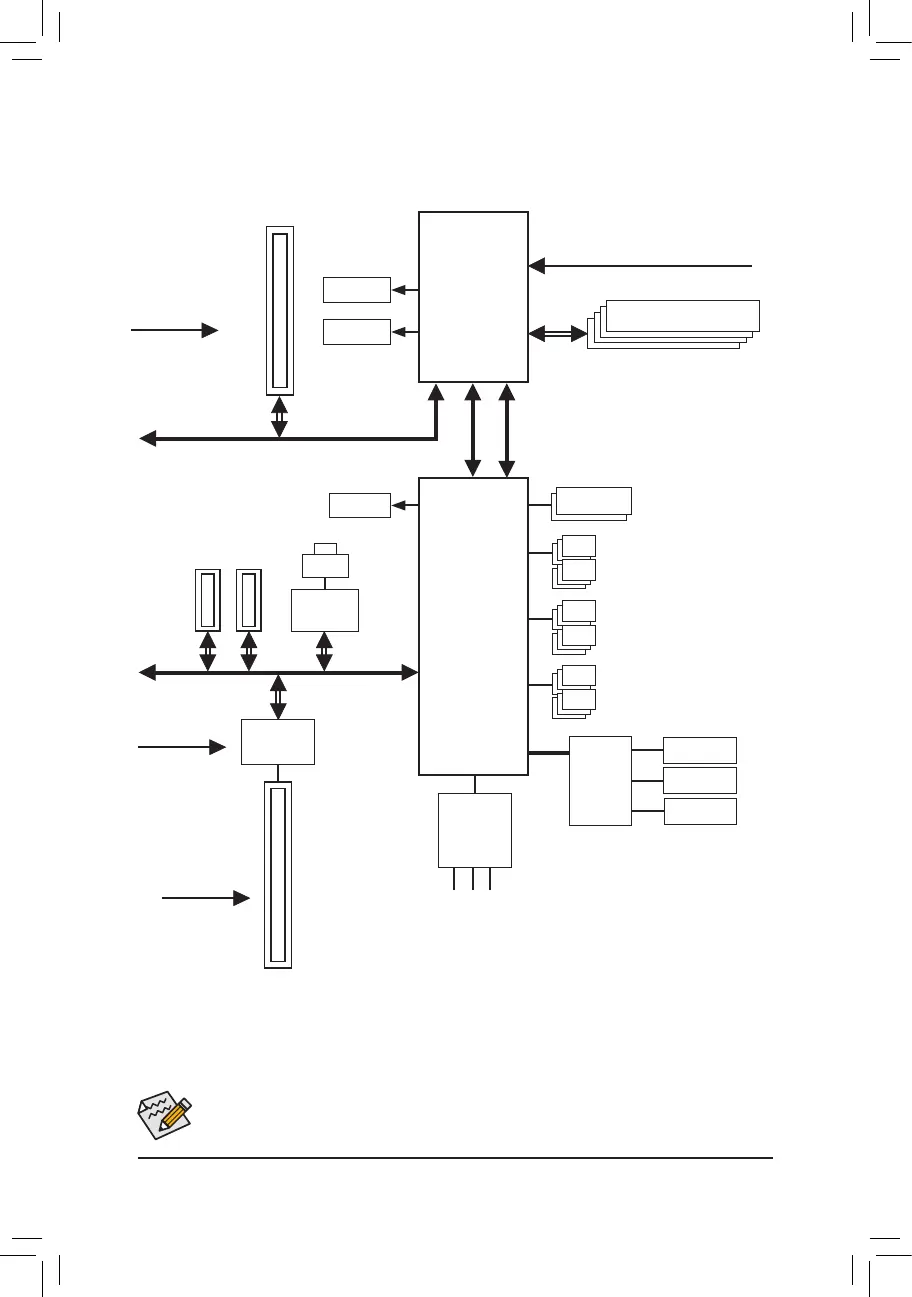

GA-H97M-DS3P Motherboard Block Diagram
For detailed product information/limitation(s), refer to "1-2 Product Specications."
iTE
®
Super I/O
PS/2 KB/Mouse
LGA1150
CPU
Intel
®
H97
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
PCI CLK
(33 MHz)
CPU CLK+/- (100 MHz)
1 PCI Express x16
COM
LPT
6 USB 2.0/1.1
1 PCI
6 USB 3.0/2.0
DDR3 1600/1333 MHz
PCI Express Bus
PCI Express Bus
6 SATA 6Gb/s
HDMI
DVI-D
D-Sub
DMI 2.0
FDI
x16
x1
LAN
RJ45
Intel
®
GbE LAN
PCIe to PCI
Bridge
LPC
Bus
x1x1x1
Dual Channel Memory
Dual BIOS
2 PCI Express x1
Line Out (Front Speaker Out)
MIC (Center/Subwoofer
Speaker Out)
Line In (Rear Speaker Out)
CODEC
