Gigabyte GA-M61PME-S2 User Manual

Appendix- 75 -

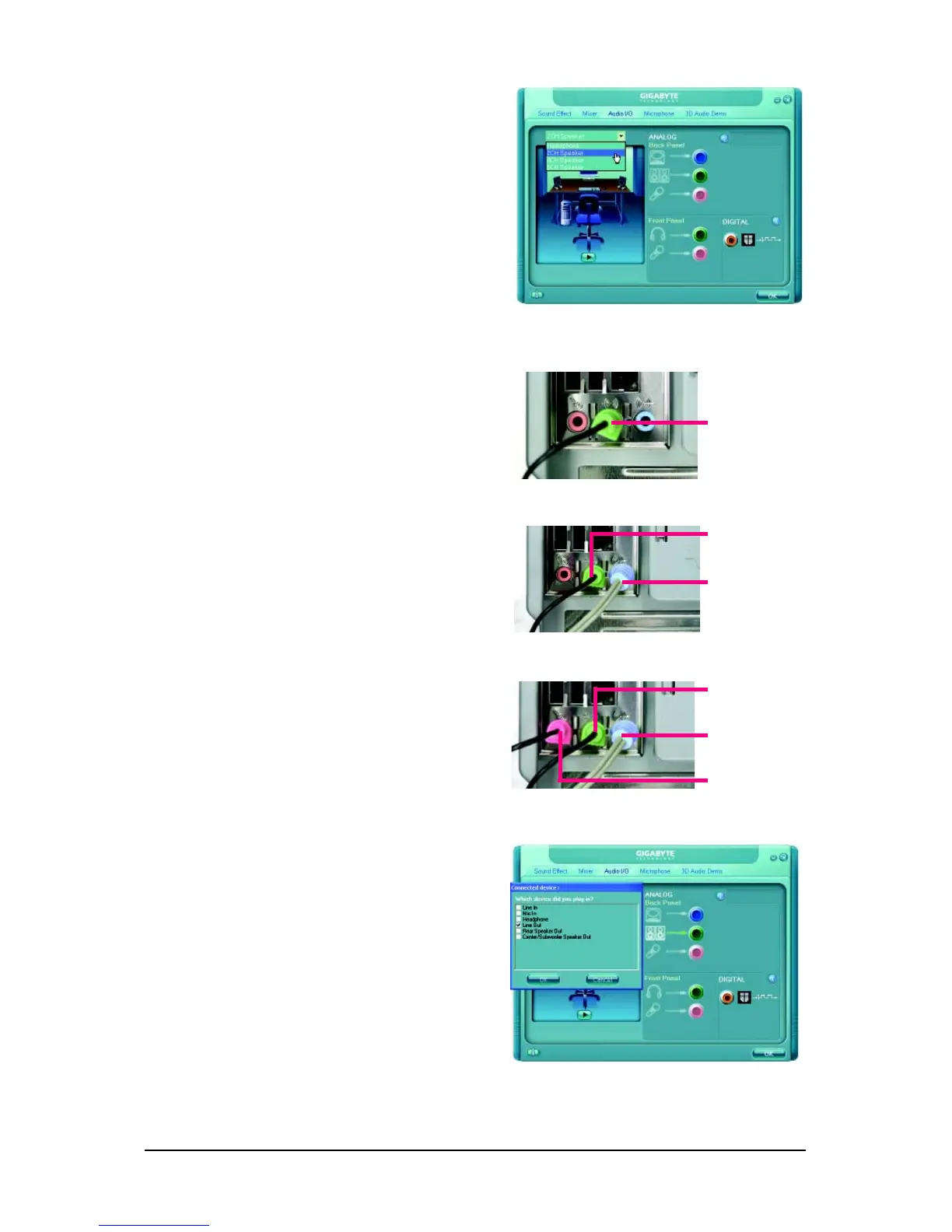

Step 2:
Click the Audio I/O tab. In the speaker list on the
left, select 2CH Speaker, 4CH Speaker, or 6CH
Speaker according to the type of speaker configura-
tion you wish to set up.
Step 4:
Everytime you connect an audio device to an audio
jack, the Connected device box appears. Select
the device according to the type of device you connect.
Then click OK to complete the configuration.
Step 3:
The pictures to the right show the 2-, 4-, 5.1-channel
speaker configurations.
Center/Subwoofer
Speaker Out
5.1-Channel Speakers:
Rear Speaker Out
Front Speaker Out
4-Channel Speakers:
Rear Speaker Out
Front Speaker Out
Speakers or
Headphones
2-Channel Speakers:

Gigabyte GA-M61PME-S2 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Processor system buses supported	2000 MHz
S/PDIF out connector	Yes
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
Headphone outputs	3
USB 2.0 ports quantity	4
BIOS type	AWARD
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Norton Internet Security
Networking features	Gigabit Ethernet
RAID levels	0, 1

Weight and Dimensions

Depth	225 mm
Width	244 mm
