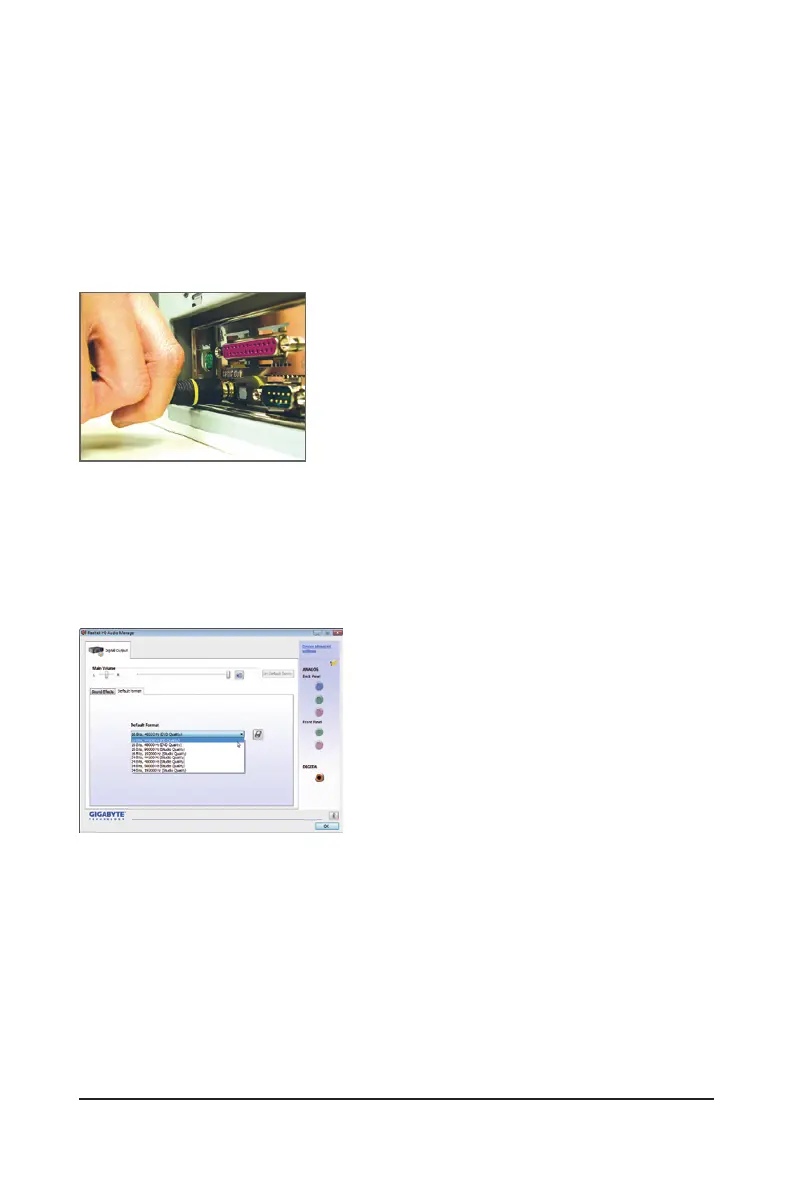

5-1-2 Conguring S/PDIF Out
(Note) The actual locations of the SPDIF Out connectors may differ by model.
Conguring S/PDIF Out:
The S/PDIF Out jacks can transmit audio signals to an external decoder for decoding to get the best audio
quality. To output S/PDIF digital audio signals to an external decoder, connect a S/PDIF coaxial cable to the
coxial S/PDIF out connector on the motherboard back panel.
1. Conneting a S/PDIF Out Cable:
2. Conguring S/PDIF Out:
Step:
On the Digital Output screen, click the Default Format tab and then select the sample rate and bit depth.
Click OK to complete.
S/PDIF Coaxial Cable
