Gigabyte GA-Z170-HD3 User Manual

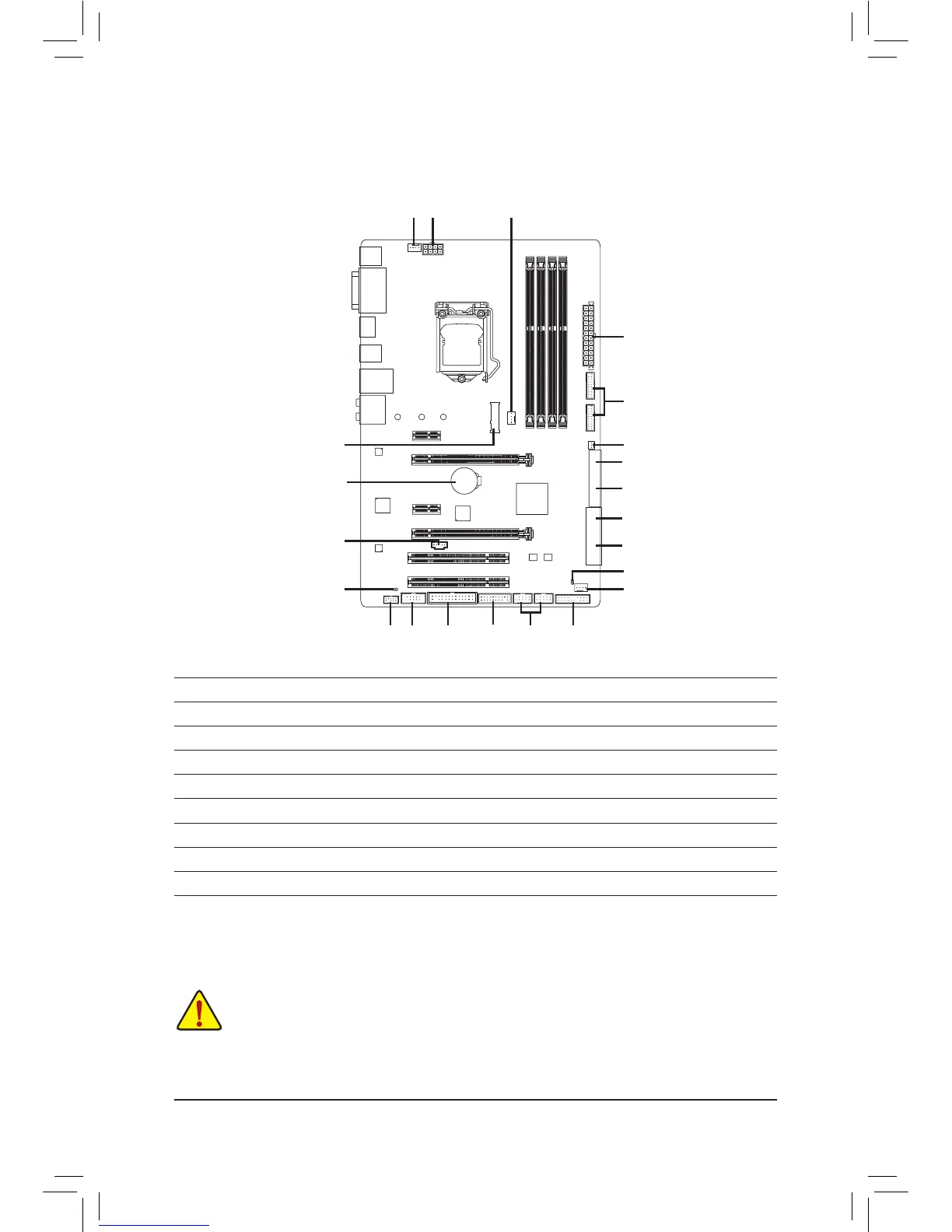

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SATA EXPRESS
6) SATA3 0/1/2/3/4/5
7) M2A_32G
8) F_PANEL
9) F_ AUDIO
10) SPDIF_O
11) F_USB30_1/F_USB30_2
12) F_USB1/F_USB2
13) TPM
14) THB_C
15) LPT
16) COMA
17) BAT
18) CLR_CMOS
2
8
5
11
9
1
4
3
7
17
12
4
5
6
6
4
10
13
14
1516
18
- 13 -

Gigabyte GA-Z170-HD3 Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Component for	PC
Motherboard chipset	Intel® Z170
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64
Cables included	SATA
Bundled software	CFosSpeed Norton Internet Security (OEM version)
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Number of displays supported	3
Parallel processing technology support	2-Way CrossFireX
HDMI version	1.4a
eSATA ports quantity	-
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Number of SATA III connectors	6
Ethernet interface type	Gigabit Ethernet
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	199 mm
Width	305 mm
