Gigabyte GS27FC User Manual

- 9 -

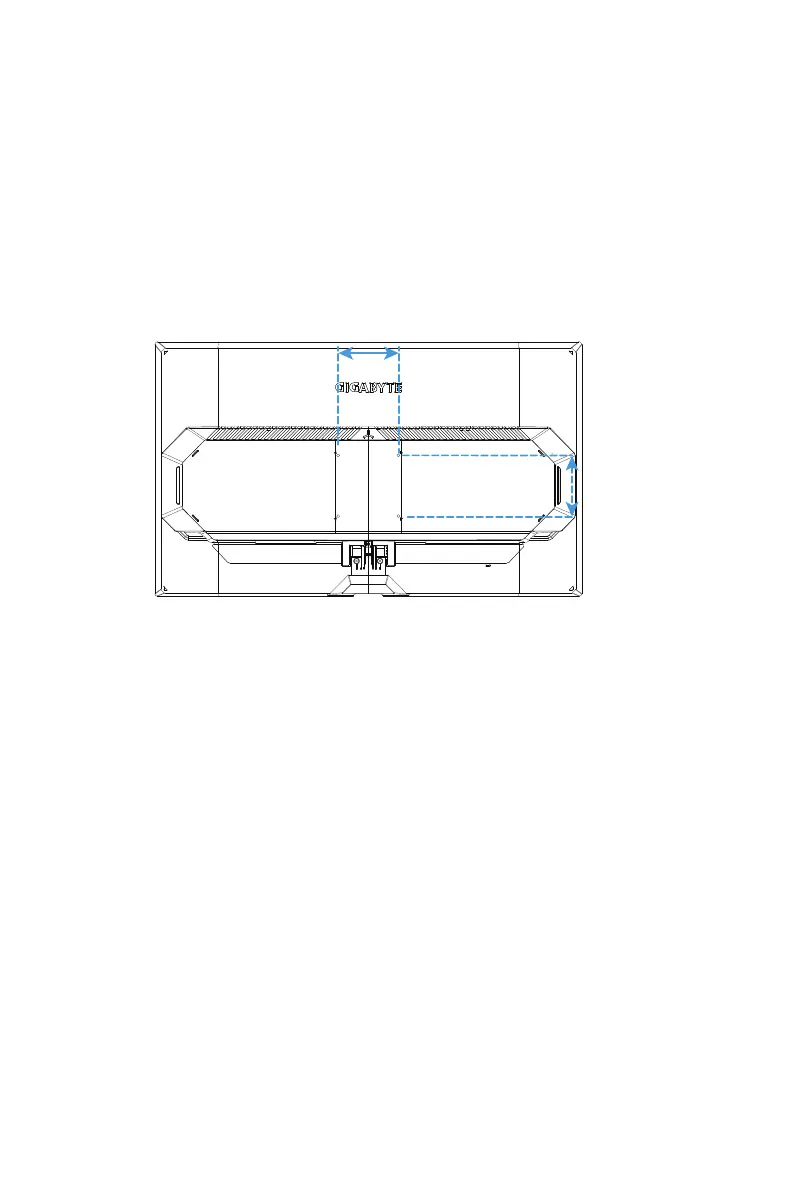

InstallingaWall-MountBracket(Optional)
Use only 100 x 100 mm compliant wall mount kit. Install the wall mount according
to the manufacturer’s instructions.
1. Position the monitor face down with its protective foam or with a nonabrasive
cloth underneath.
2. Align the wall-mount bracket installation holes with the screw holes on the
back of the monitor.
3. Use the screws to secure the bracket in place.
Note: To mount the monitor on the wall, refer to the installation guide that is
included in the wall-mount bracket kit. Required VESA mounting screw quantity: 4,
screw size: M4 x 10mm minimum.
100 mm
100 mm

Gigabyte GS27FC Specifications

General

Panel type	VA
Color gamut	108 %
Pixel pitch	0.3114 x 0.3114 mm
Display diagonal	27 \
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display technology	LCD
Native aspect ratio	-
Maximum refresh rate	180 Hz
Screen curvature rating	1500R
Viewable size, vertical	336.312 mm
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Viewable size, horizontal	597.888 mm
Display brightness (typical)	250 cd/m²
High Dynamic Range (HDR) supported	Yes
DisplayPort version	1.4
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50/60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	32 W
Package type	Box
Package depth	148 mm
Package width	688 mm
Package height	448 mm
Package weight	7100 g
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Cables included	HDMI, Power
Feet color	Black
Market positioning	Gaming
Brand specific technologies	Black Equalizer, Crosshair

Weight and Dimensions

Depth (with stand)	208 mm
Width (with stand)	610.5 mm
Height (with stand)	441 mm
Weight (with stand)	4530 g
Depth (without stand)	78.3 mm
Height (without stand)	362.5 mm
Weight (without stand)	3620 g
