Gigabyte H310M A 2.0 User Manual

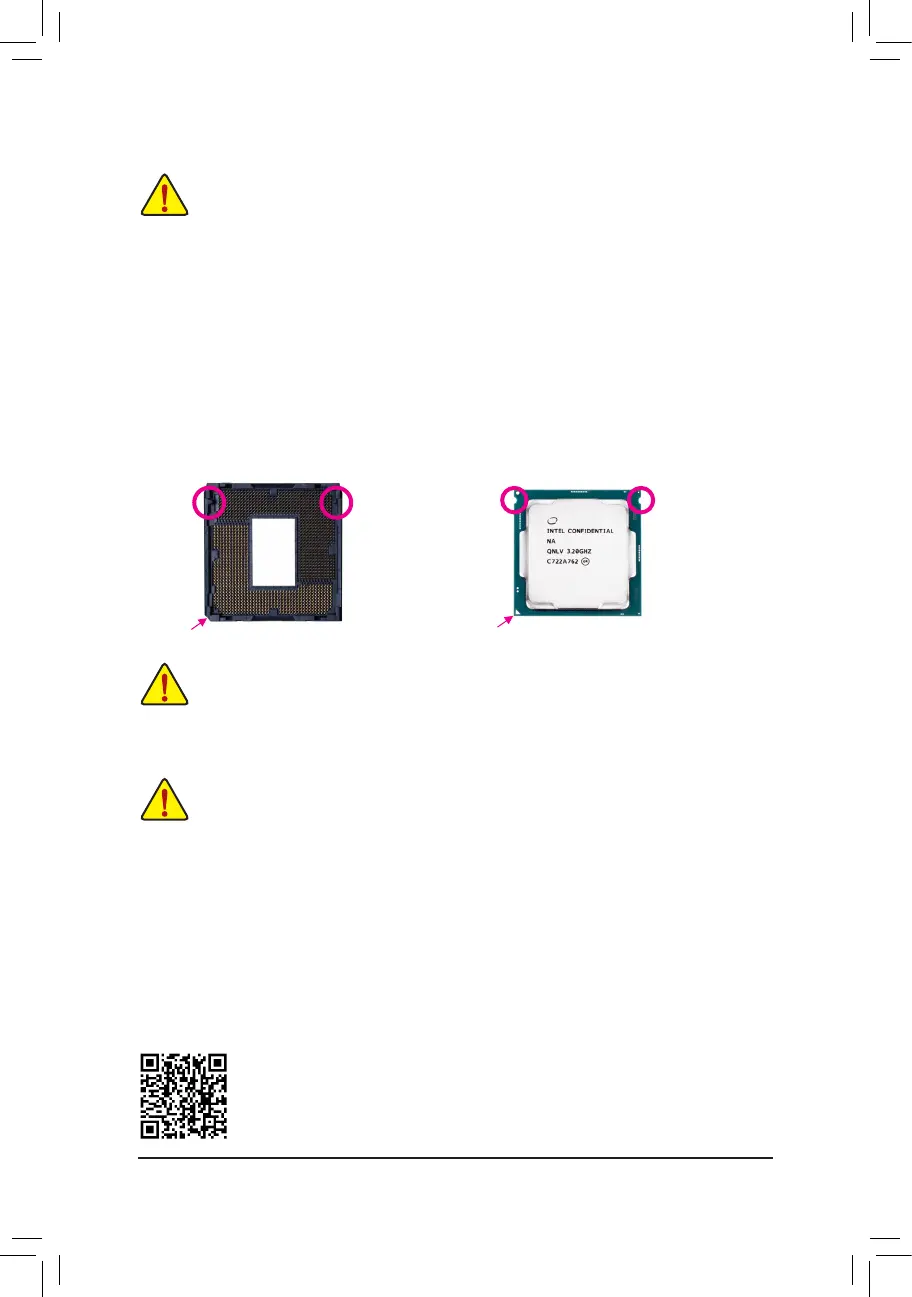

1-3 Installing the CPU
Installing the CPU
Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load
plate automatically during the process of re-engaging the lever after you insert the CPU.
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
• Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
DualChannelMemoryConguration
This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory
isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual
Channel memory mode will double the original memory bandwidth.
Please visit GIGABYTE's website for details on hardware installation.
Triangle Pin One Marking on the CPU
NotchNotch
LGA1151 CPU
Alignment KeyAlignment Key
LGA1151 CPU Socket
Pin One Corner of the CPU Socket
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU
support list.)
• Always turn off the computer and unplug the power cord from the power outlet before installing the CPU
to prevent hardware damage.
• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate
the notches on both sides of the CPU and alignment keys on the CPU socket.)
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage of
the CPU may occur.
• SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommendedthat
thesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthestandard
requirementsfortheperipherals.Ifyouwishtosetthefrequencybeyondthestandardspecications,please
dosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphicscard,memory,harddrive,etc.
- 9 -

Gigabyte H310M A 2.0 Specifications

General

Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	Intel H310 Express
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Compatible operating systems	Windows 10 64-bit
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2600 MHz
Graphics card	HD Graphics
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	-
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x16 (Gen 3.x) slots	1
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Bundled software	Norton® Internet Security cFosSpeed
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	185 mm
Width	226 mm
