Gigabyte H310M DS2 User Manual

2-3 M.I.T.
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall
systemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamagetoCPU,chipset,ormemory
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings
may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)

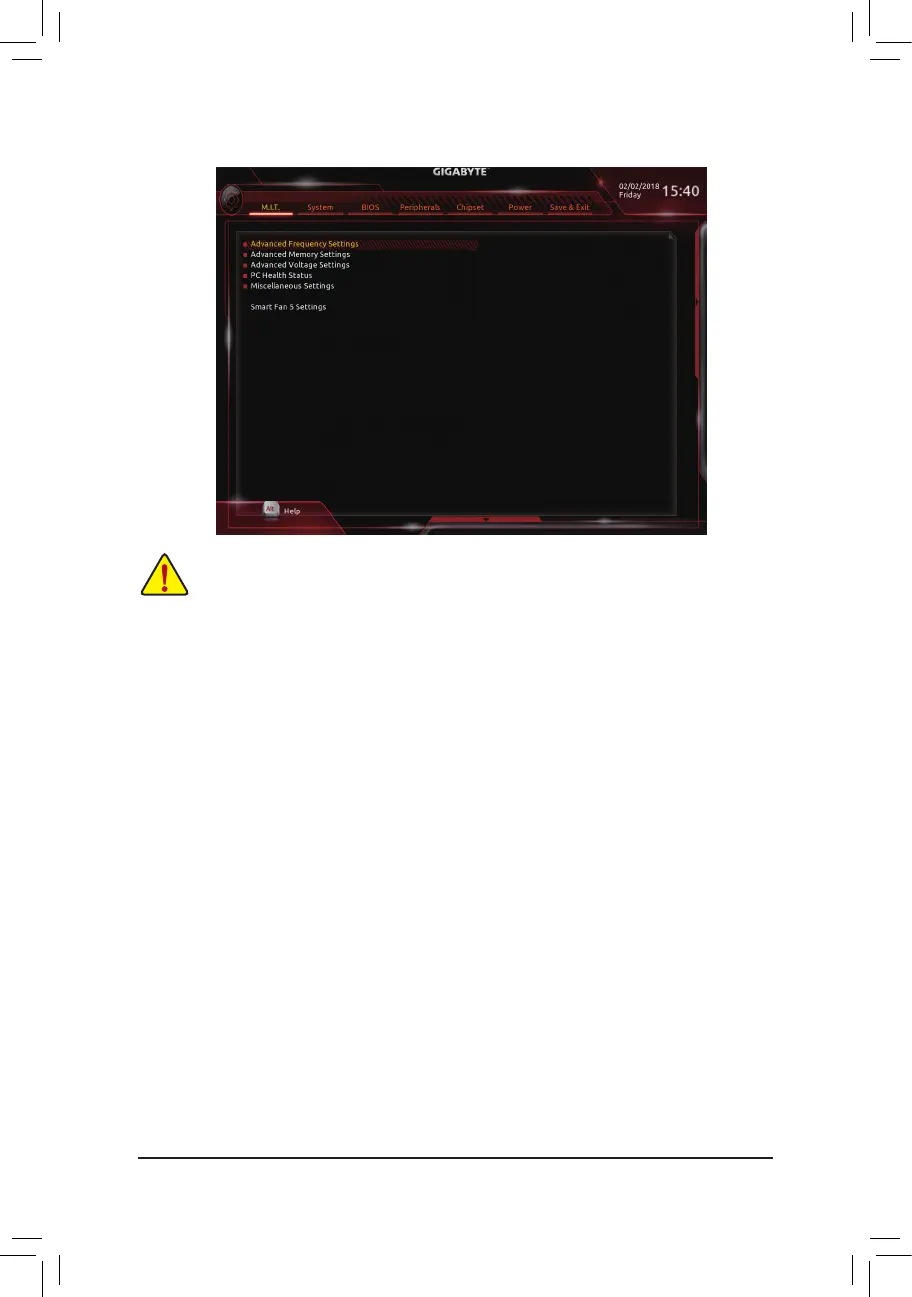

` Advanced Frequency Settings
& Host Clock Value
Displays the current operating Host Clock frequency.
& Graphics Slice Ratio
(Note)
Allows you to set the Graphics Slice Ratio.
& Graphics UnSlice Ratio
(Note)
Allows you to set the Graphics UnSlice Ratio.
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& CPU Frequency
Displays the current operating CPU frequency.
& FCLK Frequency for Early Power On
Allows you to set the FCLK frequency. Options are: Normal(800Mhz), 1GHz, 400MHz. (Default: 1GHz)
` Advanced CPU Core Settings
& CPU Clock Ratio, CPU Frequency, FCLK Frequency for Early Power On
The settings above are synchronous to those under the same items on the Advanced Frequency Settings
menu.
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
- 19 -

Gigabyte H310M DS2 Specifications

General

Microphone in	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
ECC	No
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H310
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10
Maximum resolution	1920 x 1200 pixels
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-8xxx, i5-8xxx, i7-8xxx
Supported storage drive interfaces	SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
System Management BIOS (SMBIOS) version	2.7
Ethernet interface type	Gigabit Ethernet
Cables included	SATA

Weight and Dimensions

Depth	174 mm
Width	226 mm
