Gigabyte H310M DS2 User Manual

- 4 -

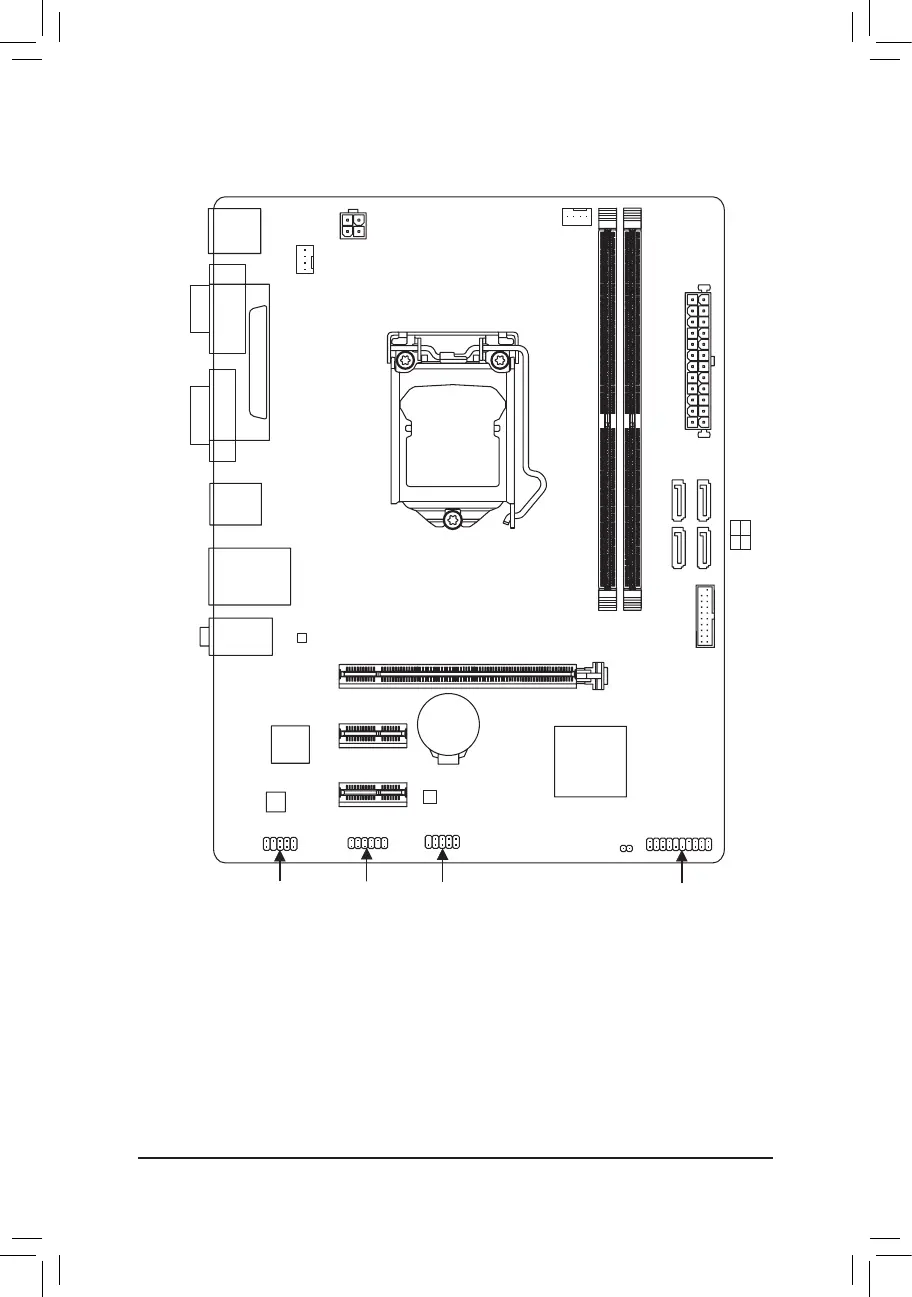

H310M DS2 Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you
obtain. The box contents are subject to change without notice.
Box Contents
5 H310M DS2 motherboard
5 Motherboard driver disk 5 Two SATA cables
5 User's Manual 5 I/O Shield
KB_MS_USB
CPU_FAN
SYS_FAN
LGA1151
ATX
H310M DS2
F_AUDIO
AUDIO
BAT
ATX_12V
Intel
®
H310
R_USB30
CODEC
CLR_CMOS
M_BIOS
LPT
VGA
USB_LAN
PCIEX16
PCIEX1_1
PCIEX1_2
iTE
®
Super
I/O
Realtek
®
GbE LAN
F_USB
F_PANEL
COMA
TPM
F_USB30
DDR4_2 DDR4_1
3 2
1 0
SATA3

Gigabyte H310M DS2 Specifications

General

Microphone in	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
ECC	No
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H310
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10
Maximum resolution	1920 x 1200 pixels
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-8xxx, i5-8xxx, i7-8xxx
Supported storage drive interfaces	SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
System Management BIOS (SMBIOS) version	2.7
Ethernet interface type	Gigabit Ethernet
Cables included	SATA

Weight and Dimensions

Depth	174 mm
Width	226 mm
