Gigabyte Z390 D User Manual

- 4 -

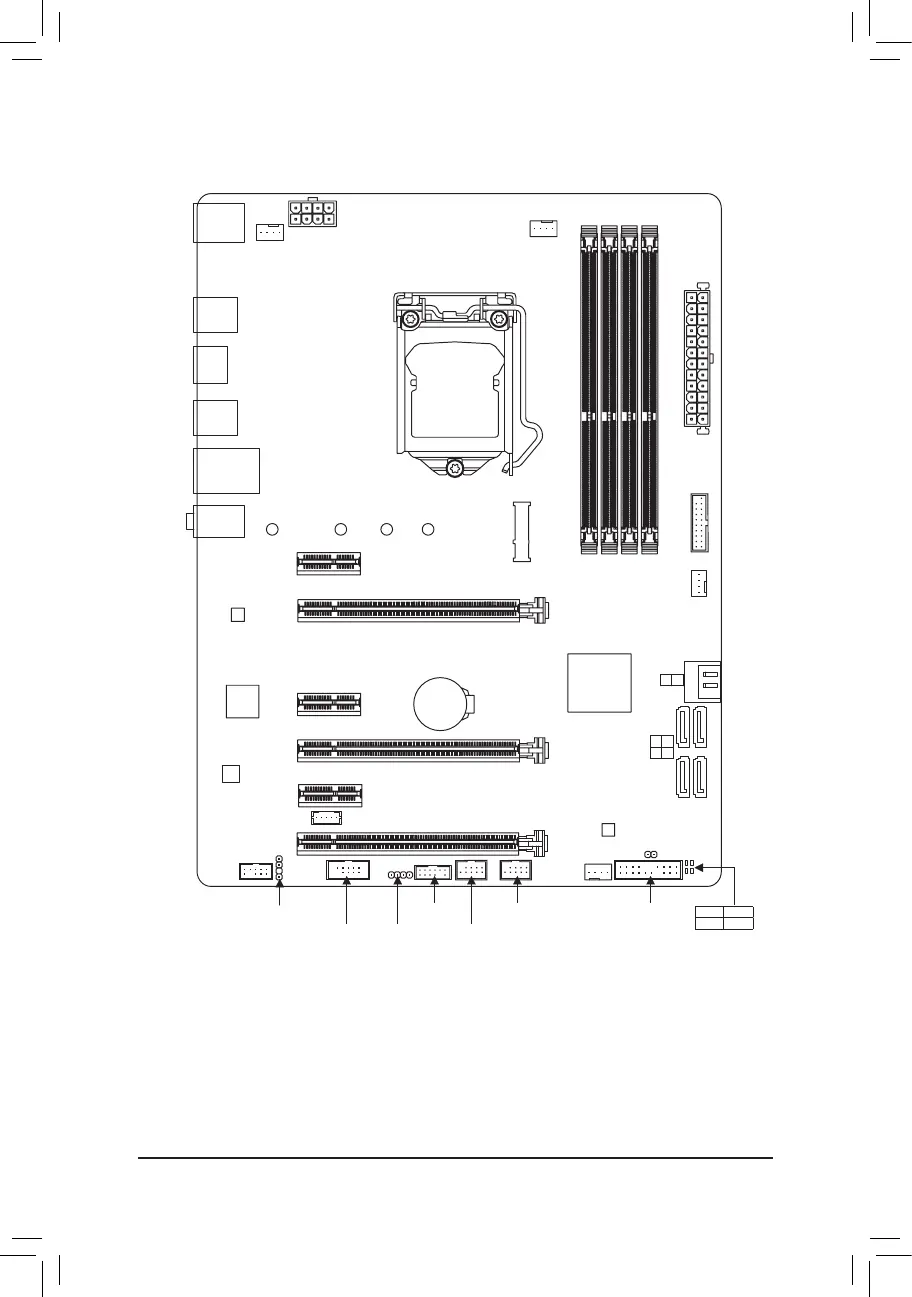

Z390 D Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 Z390 D motherboard 5 Two SATA cables
5 Motherboard driver disk 5 I/O Shield
5 User's Manual
KB_MS
CPU_FAN
ATX_12V_2X4
ATX
F_AUDIO
AUDIO
PCIEX4_2
DDR4_B2 DDR4_A2 DDR4_B1 DDR4_A1
BAT
F_PANEL
LED_C
Intel
®
Z390
CLR_CMOS
M_BIOS
PCIEX1_1
PCIEX16
F_USB1
LGA1151
Z390 D
USB30_LAN
F_USB30
PCIEX1_2
SYS_FAN2
iTE
®
Super I/O
TPM
M2A
SATA3
5 3 4 2
HDMI
Realtek
®
GbE LAN
PCIEX1_3
80 60 42
SYS_FAN3
SPDIF_O
SYS_FAN1
110
R_USB30_2
COM
CODEC
R_USB30_1
SATA3
1 0
PCIEX4_1
CPU DRAM
VGA BOOT
THB_C
F_USB2

Gigabyte Z390 D Specifications

General

Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	Intel Z390 Express
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Cables included	SATA
Bundled software	Norton® Internet Security (OEM) Realtek® 8118 Gaming LAN Bandwidth Control
Drivers included	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7
HDMI version	1.4
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 4000, 4133, 4266 MHz
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium

Weight and Dimensions

Depth	230 mm
Width	305 mm
