Gigabyte Z790M A ELITE AX ICE User Manual

- 19 -

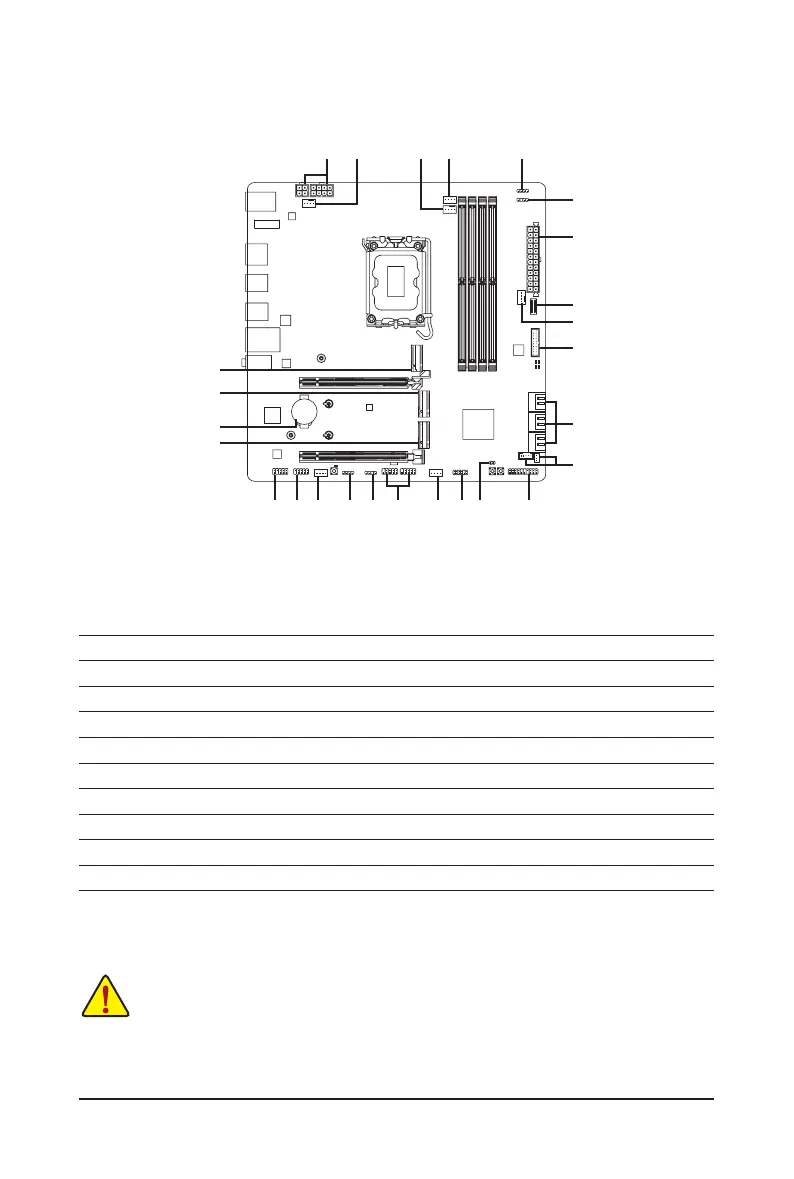

2-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V_2X2/ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SYS_FAN4_PUMP
6) CPU_OPT
7) LED_C1/LED_C2
8) D_LED1/D_LED2
9) SATA3 2/3/4/5/6/7
10) M2A_CPU/M2Q_SB/M2P_SB
11) F_PANEL
12) F_AUDIO
13) F_U32C
14) F_U32
15) F_USB1/F_USB2
16) SPI_TPM
17) COM
18) THB_C1/THB_C2
19) BAT
20) RST
11
14
13
2
8
18
9
15412 16
71
87
36
10
10
10
5
4
4
17
19
20

Gigabyte Z790M A ELITE AX ICE Specifications

General

Chipset	Intel Z790
Form Factor	Micro ATX
Socket	LGA 1700
Memory Support	DDR5
PCIe x1 Slots	1
Bluetooth	Bluetooth 5.2
Storage Interface	4 x SATA 6Gb/s
Networking	2.5GbE LAN
Wireless LAN	Wi-Fi 6E
Audio	Realtek ALC897
PCIe Slots	1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0
RGB Headers	1 x Addressable LED, 1 x RGB LED
