Gigabyte Z790M A ELITE AX ICE User Manual

- 5 -

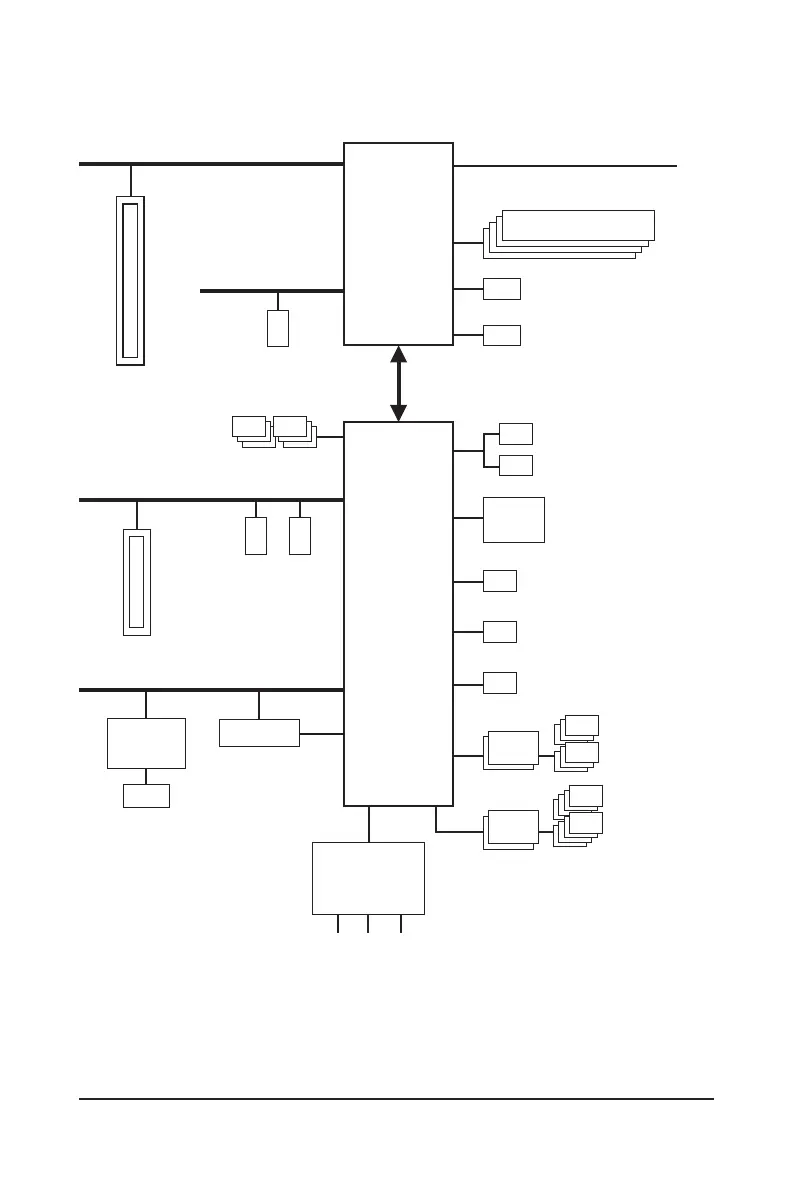

1-2 Motherboard Block Diagram
CPU CLK+/- (80~800 MHz)
DMI 4.0
6 SATA 6Gb/s
eSPI
Bus
SPI
Bus
DDI
Line Out
MIC
S/PDIF Out
iTE
®
Super I/O
6 USB 3.2 Gen 1
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
1 USB 3.2 Gen 2 Type-A
1 DisplayPort
BIOS
TPM
PCI Express 5.0 Bus
1 PCI Express x16
x16
DDI
1 HDMI
1 USB Type-C
®
,
with USB 3.2 Gen 2 support
CODEC
LGA1700 CPU
PCI Express 4.0 Bus
1 M.2 Socket 3
(M2A_CPU)
PCI Express 4.0 Bus
2 M.2 Socket 3
(M2Q_SB, M2P_SB)
x4
1 PCI Express x4
DDR5 5600
(Note)
/5200
(Note)
/4800/4400 MT/s
USB 3.2
Gen 1 Hub
8 USB 2.0/1.1
USB 2.0
Hub
x4
x4x4
(Note) Actual support may vary by CPU.
PCI Express 4.0 Bus
x1
LAN
RJ45
x1
Realtek
®
2.5GbE LAN
CNVi
M.2 WIFI
Intel
®
Z790
Chipset

Gigabyte Z790M A ELITE AX ICE Specifications

General

Chipset	Intel Z790
Form Factor	Micro ATX
Socket	LGA 1700
Memory Support	DDR5
PCIe x1 Slots	1
Bluetooth	Bluetooth 5.2
Storage Interface	4 x SATA 6Gb/s
Networking	2.5GbE LAN
Wireless LAN	Wi-Fi 6E
Audio	Realtek ALC897
PCIe Slots	1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0
RGB Headers	1 x Addressable LED, 1 x RGB LED
