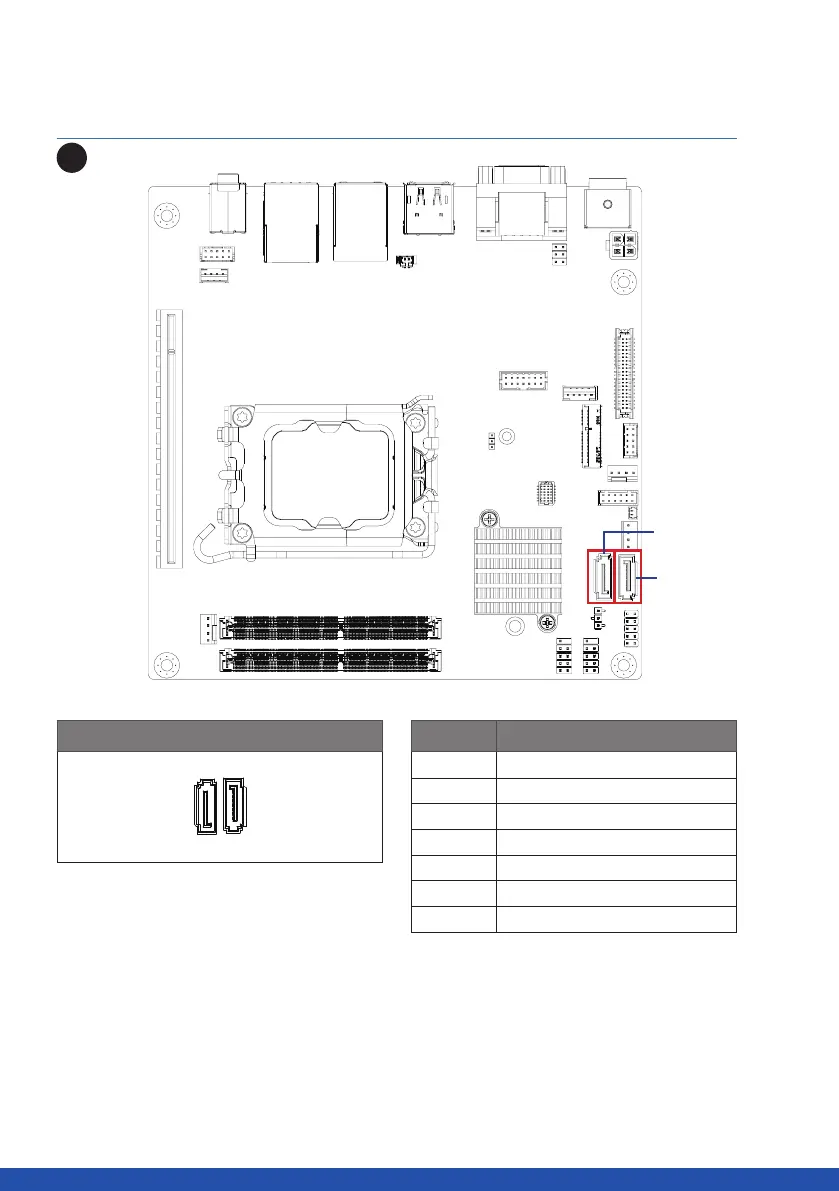

2.2.16 SATA4, SATA5 (SATA 6Gb/s Connector)

20

SATA 5

SATA 4

SATA 6Gb/s Connector Pin No. Definition

1 GND

2 TXp

3 TXn

4 GND

5 RXn

6 RXp

7 GND

1

7

1

SATA 4

SATA 5
