Getting started
Connecting the base station to the telephone network and the
mains power supply

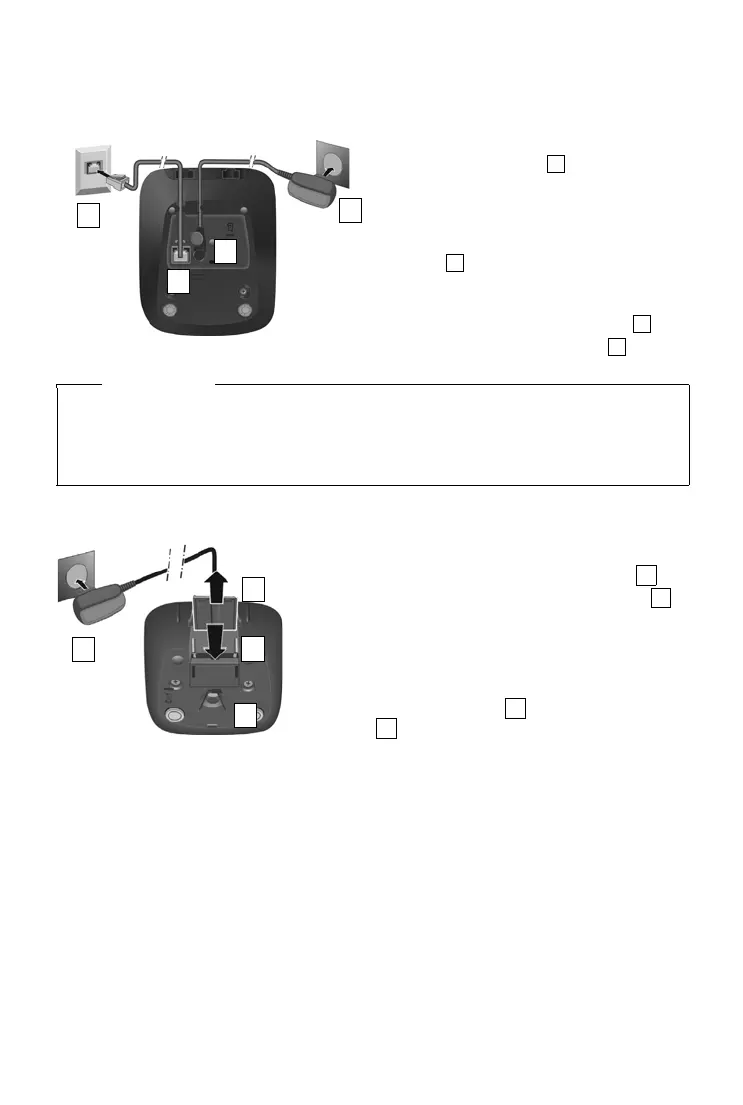

Connecting the charging cradle (if included)
¤ Insert the phone cable into the con-
nection socket at the rear of the
base until it clicks into place and
feed under the cable protection.
¤ Insert the power cable for the power
adapter into the connection socket
at the rear of the base and rotate
the right-angle plug under the cable
protection.
¤ Connect the power adapter .
¤ Connect the phone jack .
1
2
3
4
4
3
2
1
Notes
u The power adapter must always be connected, as the phone will not operate without a
power supply.
u Use only the supplied power adapter and phone cord. Pin connections on telephone
cables can vary .
¤ Connect the flat plug to the charging cradle .
¤ Plug the power adapter into the power socket .
If you have to remove the plug from the charging cradle
again:
¤ Disconnect the power adapter from the mains
power supply.
¤ Press the release button and disconnect the
plug .
1
2
3
4
2
1
3
