Gin Explorer - Riser Diagram

32

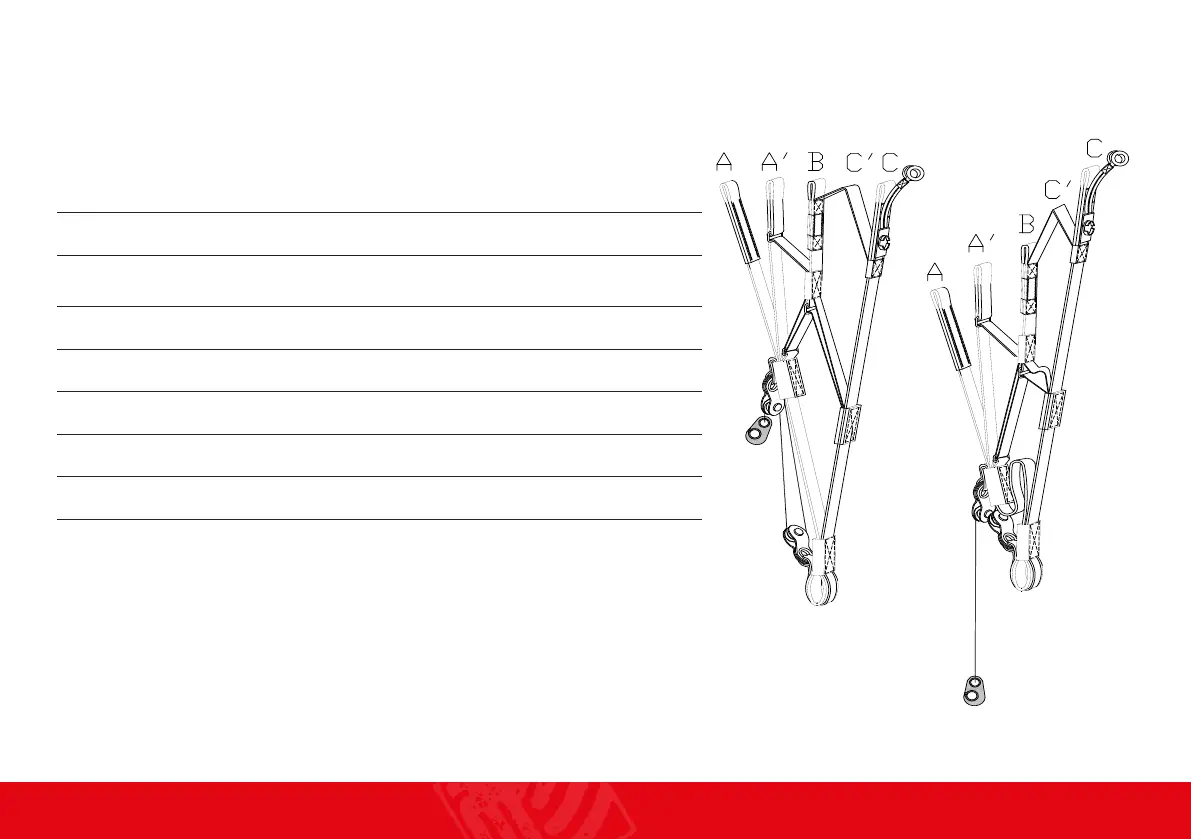

Riser diagram
Riser lengths (XXS size) A A’ B C’ C
Length at trim speed(mm) 470 470 470 470 470
Length at full speed(mm) 370 383 395 433 470
Riser lengths (XS size) A A’ B C’ C
Length at trim speed(mm) 470 470 470 470 470
Length at full speed(mm) 350 365 380 425 470
Riser lengths (S size) A A’ B C’ C
Length at trim speed(mm) 500 500 500 500 500
Length at full speed(mm) 360 380 400 450 500
Riser lengths (M,L size) A A’ B C’ C
Length at trim speed(mm) 500 500 500 500 500
Length at full speed(mm) 360 380 400 450 500
