System 3000
Blind timer and timer Display
The Astro times for Germany are shown in figure (Figure 6). As default setting for mid-week and
the weekend, the lighting switches off in the morning at sunrise and switches on in the evening
at sunset. The programmed switch-off time in the morning is the latest switch-off time of the
lighting and the programmed switching time in the evening is the earliest switch-on time of the
lighting.
When using the Astro function, the lighting can be switched off in the morning and switched on
in the evening. Switching on in the morning and switching off in the evening is not possible in
conjunction with Astro. Memory area Ʀ is suitable for this.
If the lighting is to be switched manually in the morning or evening, the time - -:- - must be set.
Example for using memory area Ʀ
If the Astro function is activated, the switch-on times from memory area ƙ are moved to sunset
and the switch-off times to sunrise. The switching times in memory area Ʀ are not linked to
the Astro function. Additional switching operations can thus be carried out using memory area
Ʀ.
In the following example, external lighting should be switched on in the evening at sunset and
switched off in the morning at sunrise. However, the lighting should not be switched on the en-
tire night but instead be switched off between 23:00 and 4:30. Memory area Ʀ is required for
the additional switching operations in the night.

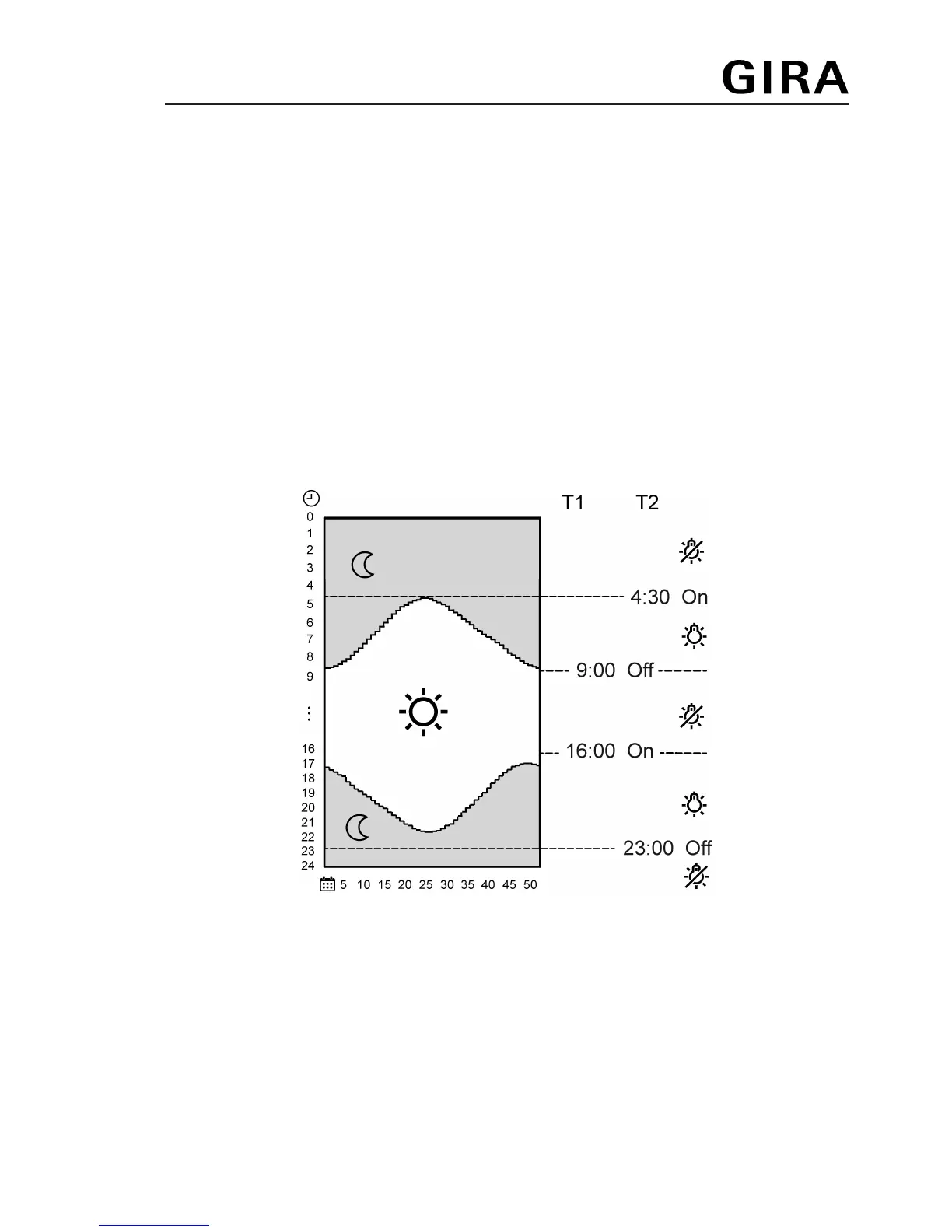

Figure7: Application example for memory areas ƙ and Ʀ
Set date and time
￭ ƣ press.
￭ Setting the ƛƜ
￭ Confirm with ƨ.
The year flashes in the display.
￭ The setting of date, time, country code and automatic summer/winter time changeover
can be changed (see chapter Commissioning).
Saving current time as switching time, quick programming
Switching times can also be saved without calling up the programming menu. The current time
is saved as the switching time for
Mo-Fr
and
Sa-So
.
8 / 10
32596512 10865949 10.07.2018
