Page 5 of 11

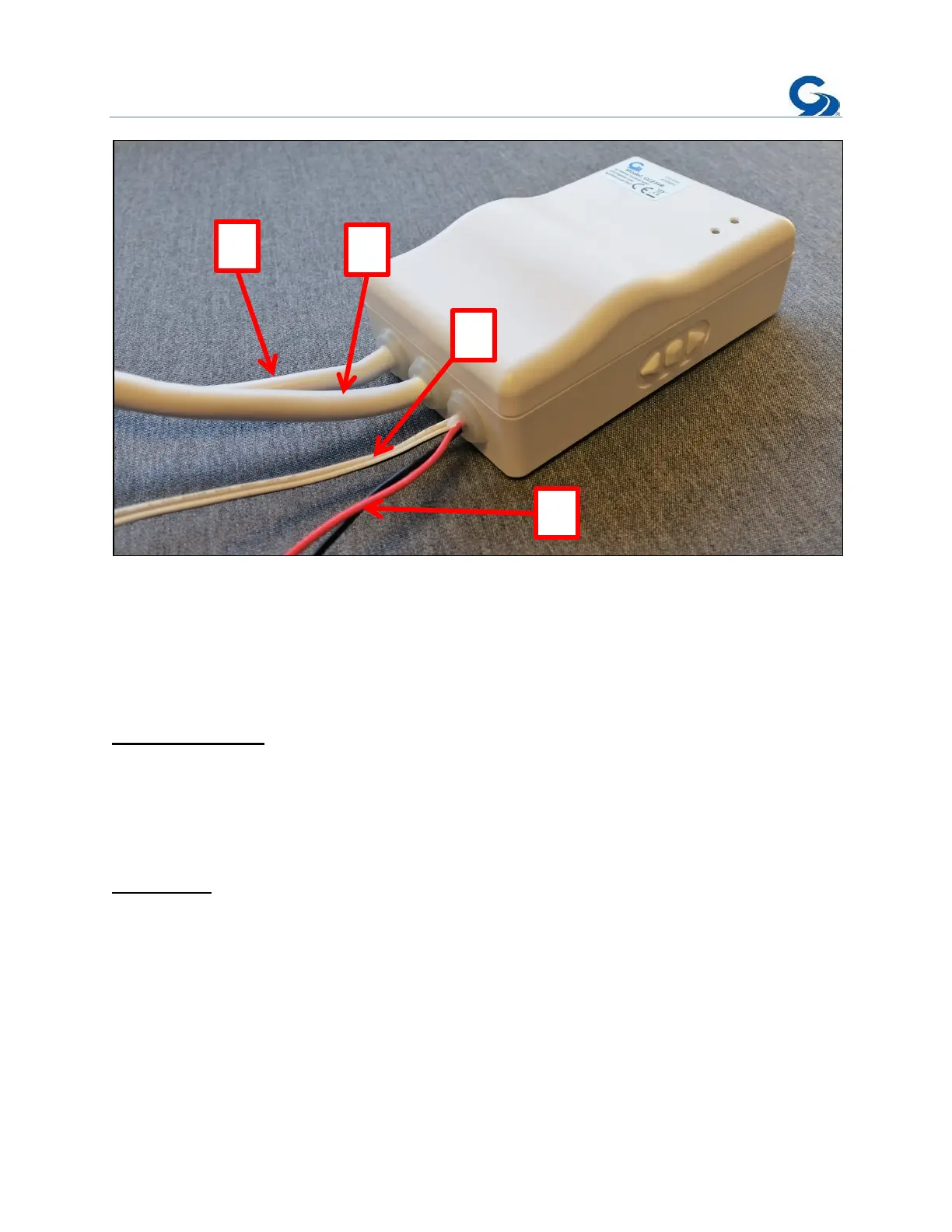

Fig.2
1) 110v AC power supply from vehicle power distribution board.
2) Output to awning motor control.
3) Initiate retract signal from vehicle ignition or parking brake.
4) 12v DC to LED lighting.
Specifications
POWER: 110VAC / 60Hz
AC Input: White = Neutral / Black = Live / Green = Earth
To the Motor: White = Neutral / Red = Direction 1 / Black = Direction 2 / Green = Earth
Ambient T: 0 - 130°F
Installation
A circuit breaker protected 15A/115v AC power supply is required form the Vehicles power
distribution panel as shown in the diagram below.
1.
Install a UL approved 110VAC junction box in which to make the electrical connections.
2.
Route the Awning’s Motor cable to this location and make the connections to the
GC274B in accordance with NEC requirements.
Mount the GC274B on the wall using the screws and tape provided.
To Next Page
