ENUSER’S MANUAL BR15
1. EXCITATION
BR15
Input 230~240V
Output 10V 600mA
Rechargeable Battery 6V/4Ah
2. BEFORE ITS USE
1. Use an independent electric source to prevent electronic disturbances.
2. Don’t place any object on the platform when switching on the indicator.
3. Please, warm-up the scale during 2-3 minutes before using it.
4. Avoid sudden changes in temperature and draughts.
5. Don’t overload the scale; do not exceed its maximum capacity.
3. CONSUMPTION
BR15
Battery life: without back illumination, approx, 160 hours.
With back illumination, approx, 120 hours.

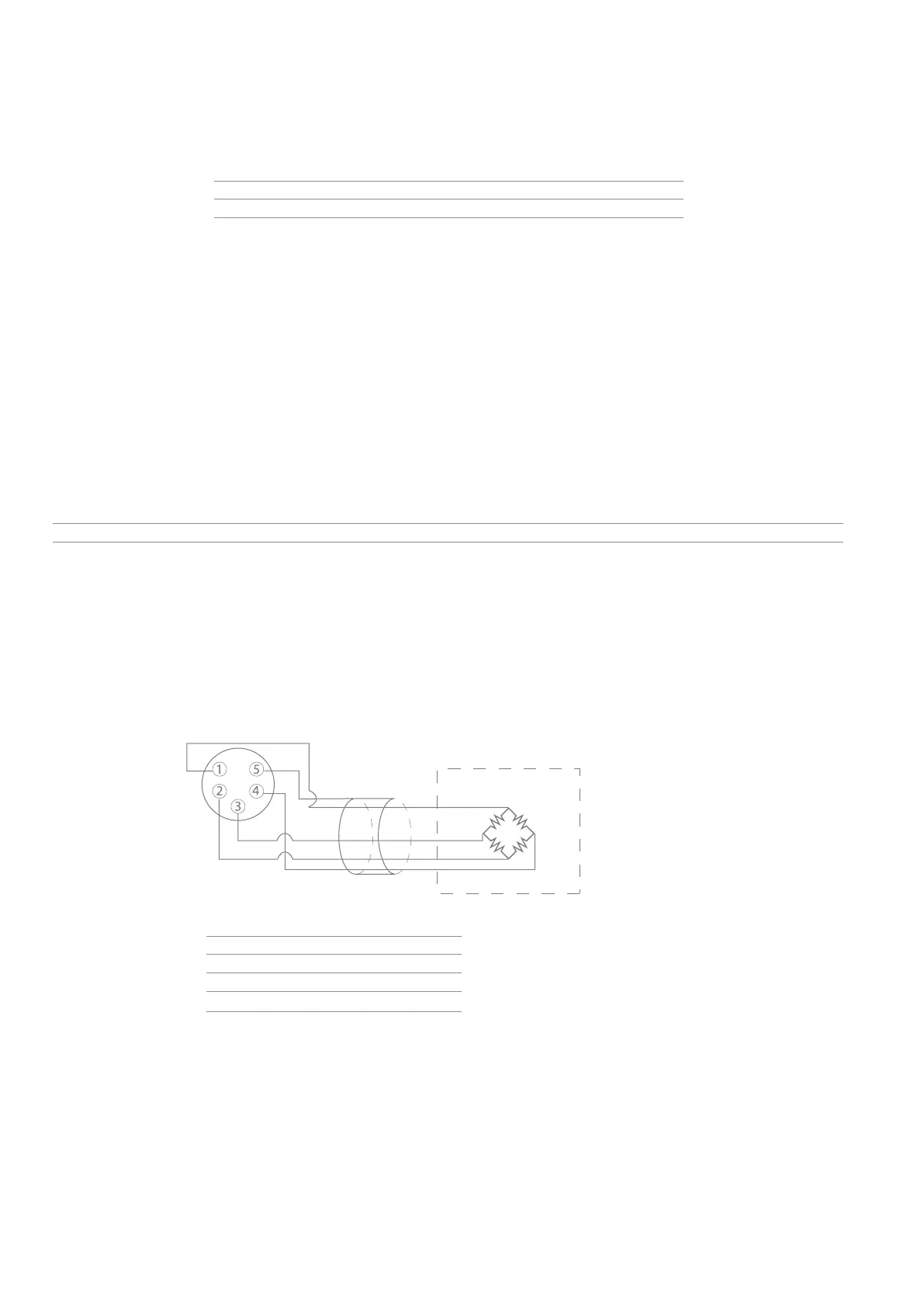

4. LOAD CELL CONNECTION TO THE INDICATOR
The connector of the load cell has 5 pins
• Do not disconnect the connector of the load cell when the indicator is working, because you could damage the equipment.
BROCHE 1 EXC +
BROCHE 2 EXC -
BROCHE 3 SIG +
BROCHE 4 SIG -
BROCHE 5 GND
MALE
LOAD CELL
CABLE
LOAD CELL
EXC
+
EXC -
SIG -SIG +
