Handling instructions
for GISMA connectors
HI 2007 - 001
Document: replaces
MV 2000-020,
MV 2000-030 and
MV 2005 - 011
First issue: 15.07.2008
Rev.-Index: -Z-
From: 29.07.2020
Copyright by:
GISMA GmbH
Page 39 of 44

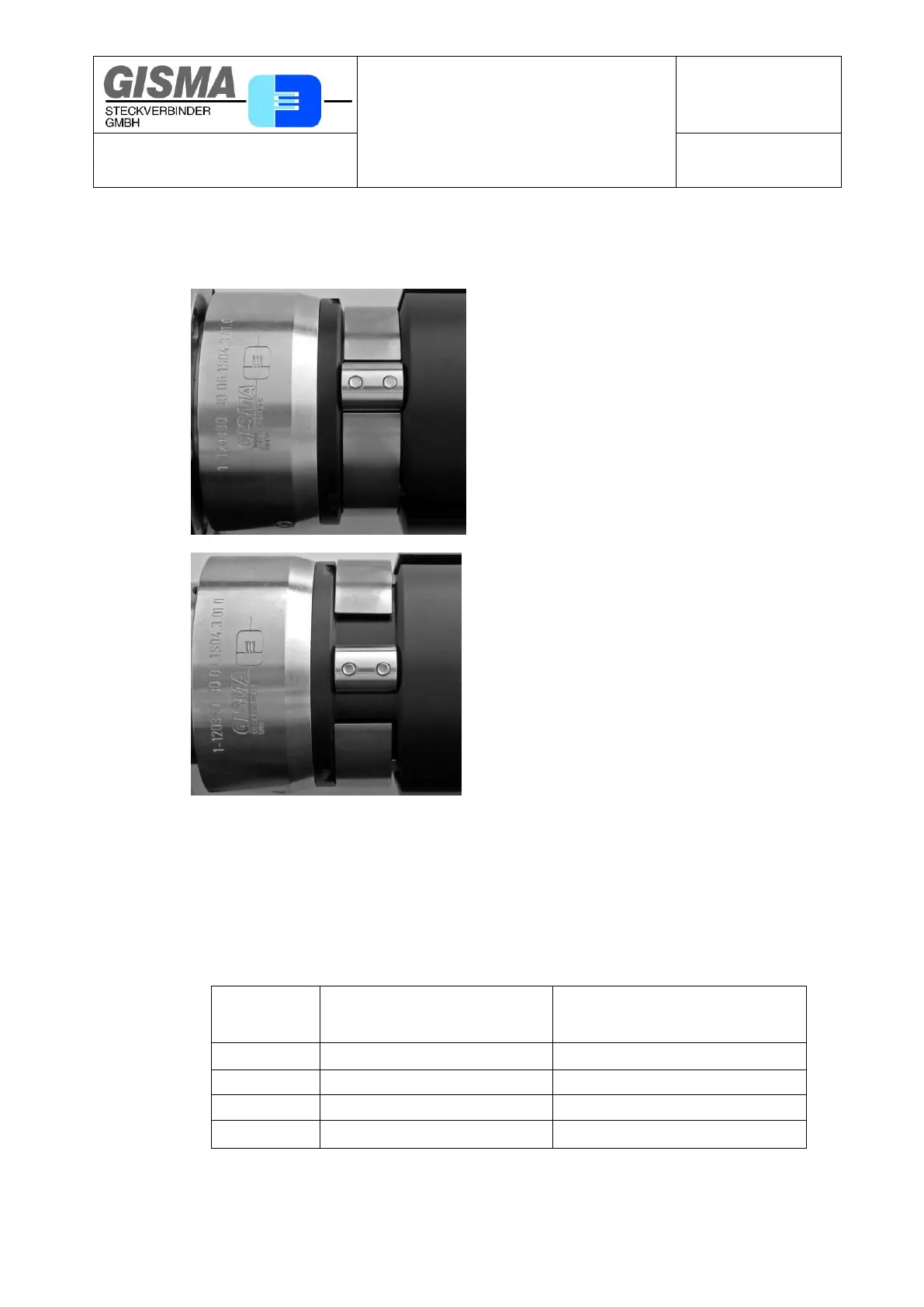

Post Mating Checks
Full engagement will be achieved, if the over-all spring lies back close to the outer
keyway.
Full engagement will be achieved, if the
over-all spring lies back close to the outer
keyway locator.
Plug during mating process or not fully
mated. Over-all spring is away from the outer
keyway locator.
Cathodic Protection
Stainless steel (1.4404/ 1.4571 comparable to 316L/316Ti) or titanium grade 5 stab plate
connectors must be connected to the CP (Cathodic Protection) system at all times. If the
connector is designed with a fixed flange and screw mounting, an additional CP connecting
would not be required. Super Duplex stainless steel connectors should be isolated from the
CP system to reduce the possibility of hydrogen embrittlement.
Mating forces (standard configuration)
Size
Contact arrangement
Mating forces
for contact-Ø 3mm
1
4-way
approx. 250 N
2
7-way
approx. 430 N
3
12-way
approx. 650 N
4
19-way
approx. 900 N
Table: Mating and de-mating forces for diver mateable connectors
