Gizmow Formula - Hour Meter; Ignition Switch; Deck Raise;Lower Switch

Operation
Formula - 20071
21

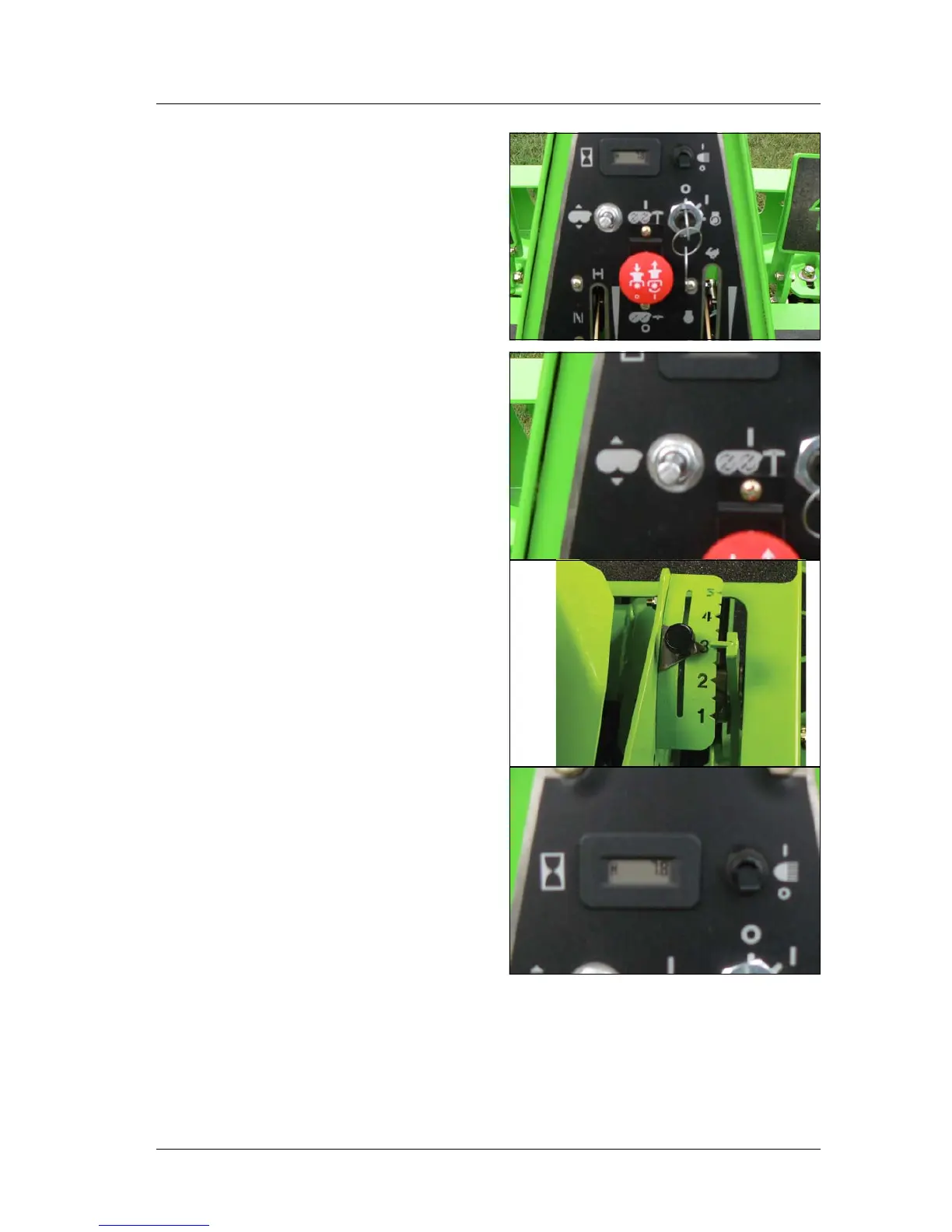

4.1.11 Ignition Switch
The ignition switch is used to start and stop
the engine. The switch has three positions
OFF, ON and START. Insert the key into switch
and rotate clockwise to the ON position.
Rotate clockwise to the next position to
engage the starter (key must be held against
spring pressure in this position).
Brake must be engaged, both foot pedals in
the neutral position, and PTO switch OFF to
start engine.
4.1.12 Deck Raise/Lower Switch
Press the switch down to lower the deck and
press the switch up to raise the deck.
Press the switch down until the indicator
shows the desired height of cut.
IMPORTANT: Do not operate the mower at an
indicated height of cut less than 1. This leads
to early blade and belt wear.
4.1.13 Hour Meter
Located on the control panel. The hour meter
records the hours that the start switch is in the
‘ON’ position.
