Glastender GW24 - GW24 Part Identification; Top View Component Identification; Front Panel Removed Component Identification

3
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com
Digital temperature gauge
Optional empty
chemical switches
Control Panel
Chemical feed lines
Chemical pumps
Water inlet lines
Drainstopper cam
and linkage arm
Circuit Board

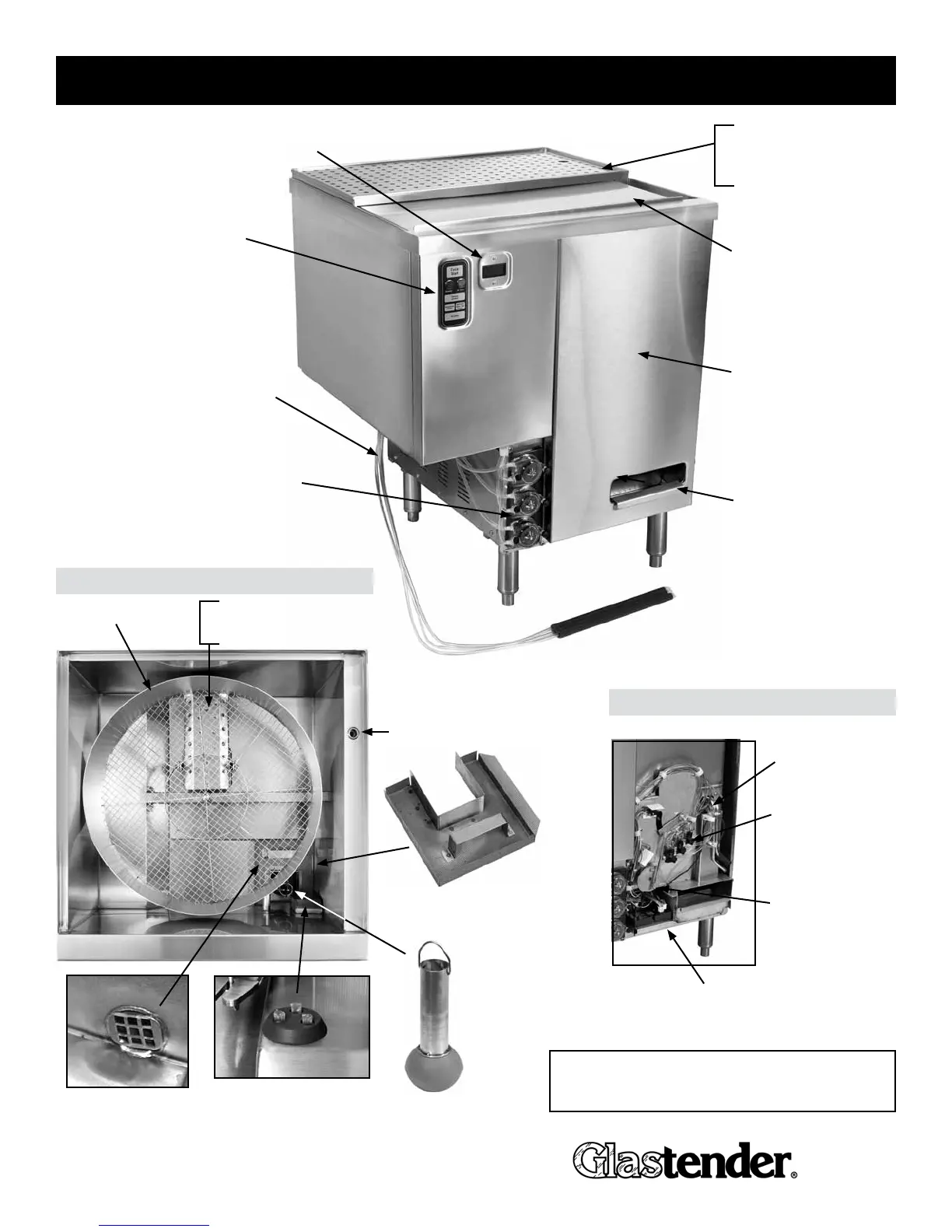

GW24 part IdentIFIcatIon*
Front Panel removed
toP view
1. Main section
11. Inlet screen
Drain hole for drainboard
pan drain tube
2. Drainboard insert
3. Drainboard pan
5. Inner cover
9. Tank screen
10. Drain stopper
12. Scrap tray
4. Sliding cover
13. Water inlets
14. Chemical inlets
6. Conveyor
7. Spray box
8. Spray box gasket
* For a more comprehensive parts list,
reference the GW24 Parts Directory.
