3534

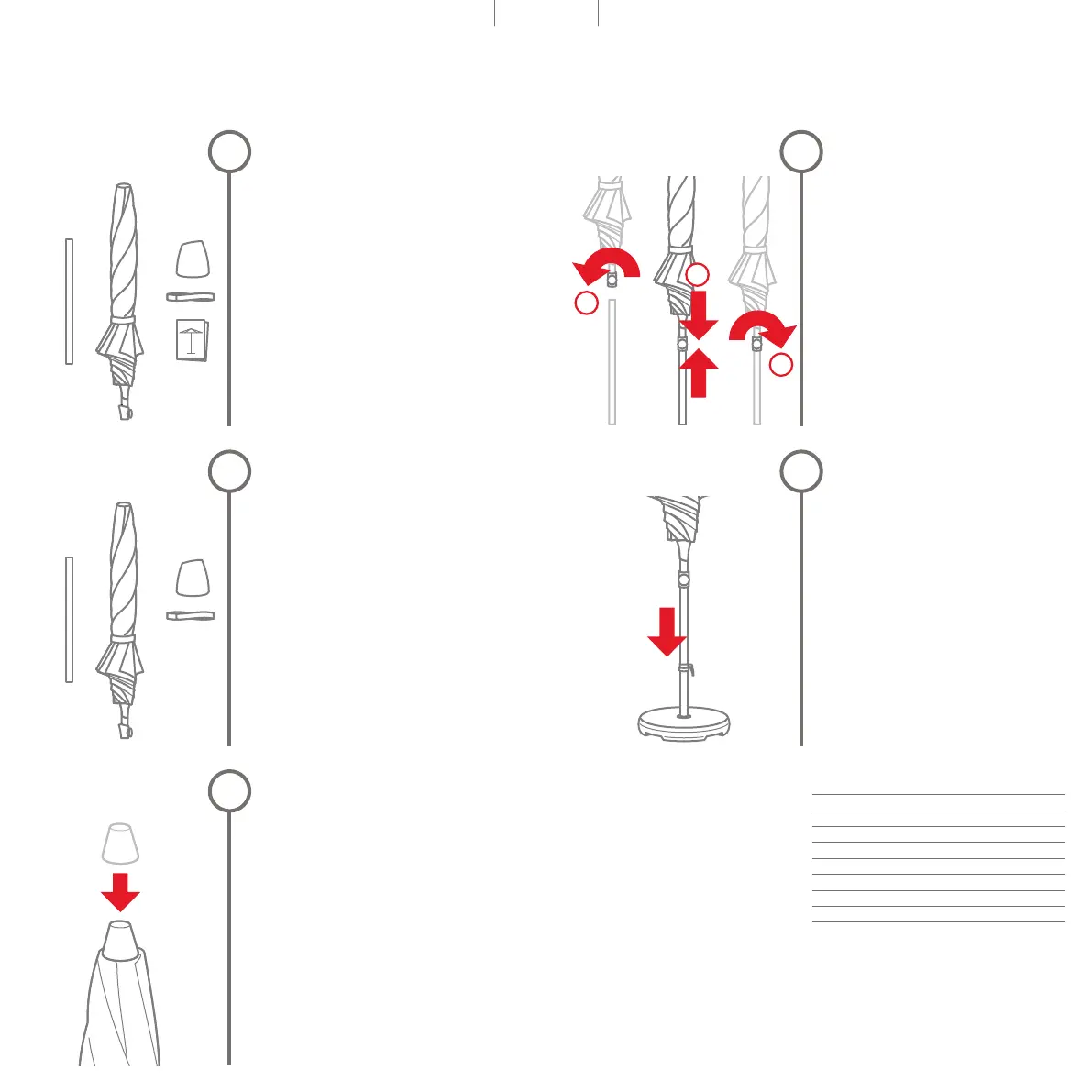

Supplied with:
- Upper pole with shade canopy
- Lower pole
- Shade finial
- Belt (possibly sewn int)
- Operating instructions
Unpack the shade
1
3
In the case of damages, inform the
transport service provider immediately.
!
Please dispose of the packing material
appropriately and keep away from
children.
!
Before first installation check the material
delivered for completeness and sound
condition. Do not install defective
material.
Check material for damages
Shade bases, ground sockets, wall bra-
ckets and/or lawn spikes are available
at your GLATZ dealer.
i
2
Installation and set-up
Set up base on even and stable surface.
Place shade in base
5
Minimal base weights
* maximal wind speed with fixed ground
anchorage
ø 200 > 30 < 75 (9)
Size
[cm]
Base weight
[kg]
Wind speed*
[km/h (Bft.)]
ø 220 > 30 < 65 (8)
ø 300 > 40 < 35 (5)
ø 250 > 40 < 50 (7)
210 x 150 > 30 < 55 (7)
250 x 200 > 40 < 40 (6)
200 x 200 > 40 < 50 (7)
240 x 240 > 40 < 40 (6)
Do not use the sunshade without
correctly mounted shade finial.
!
1. Put on the shade finial
2. Screw the shade finial on well
3. Check that it is firmly attached
Mount the shade finial
In order to avoid damages, do not
over-tighten the clamping screw.
!
1. Loosen the clamping screw sufficiently
2. Push the upper pole into the lower pole
3. Tighten the clamping screw
4. Check that it is firmly attached
Put the sunshade together
4
4.1
4.2
4.3
