3736

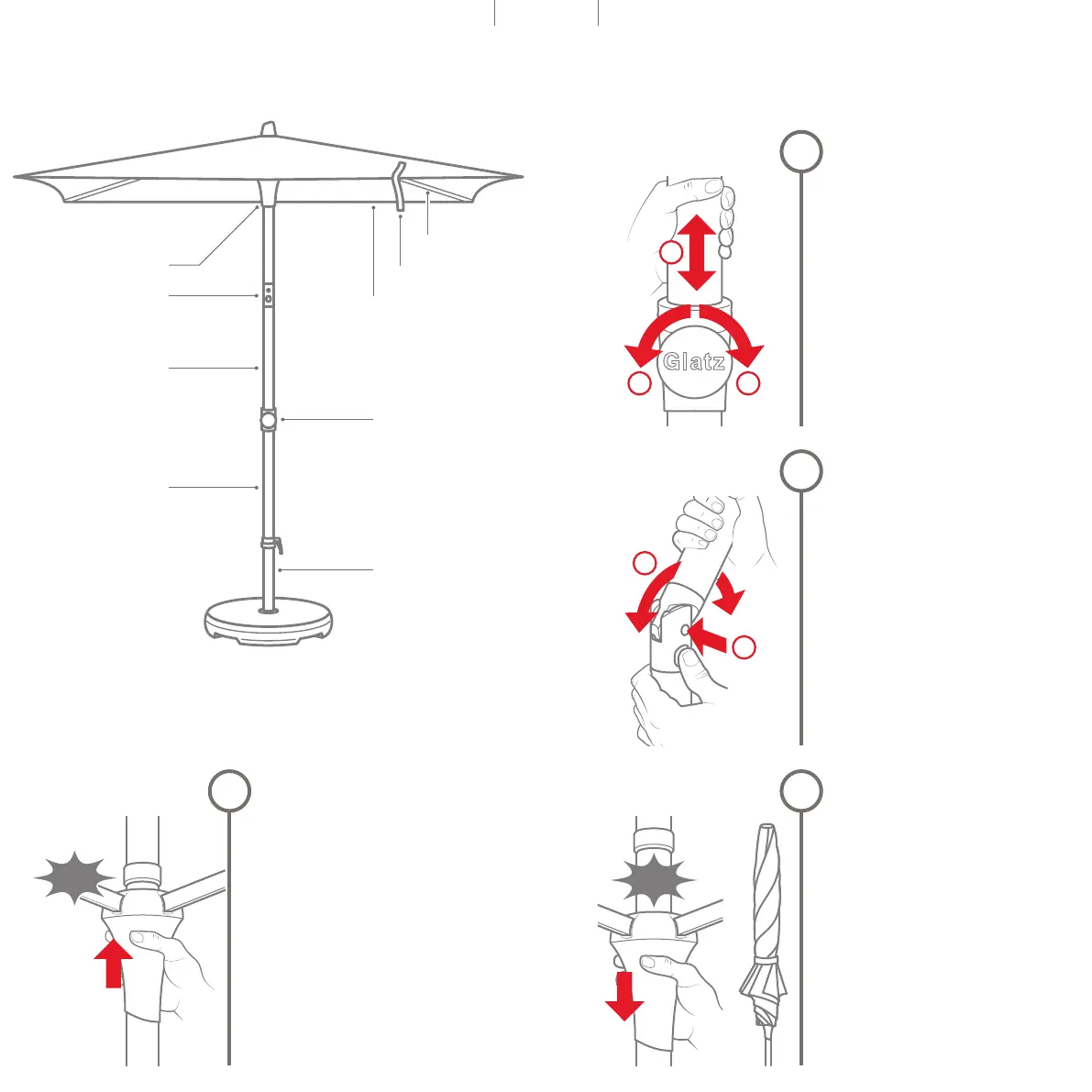

Remove the protective cover, if present
1. Loosen the belt
2. Pull the supporting rods outwards
slightly
3. Slide the slider upwards
4. Slider engages audibly above
Open shade
1
Use
When adjusting the shade height, keep a
firm hold on the upper pole, to prevent it
lowering accidentally.
1. Hold upper pole firmly
2. Loosen clamping screw
3. Adjust shade height to suit
4. Tighten the clamping screw
Adjust the shade height
2
Click
When adjusting the shade height, keep
a firm hold on the moving part of the
upper pole, to prevent it tipping over
accidentally.
1. Hold moving part firmly
2. Push tilt lock in completely
3. Tilt shade
Tilt the shade canopy
3
Clamping screw
Belt*
Cover
Shade base
(optional)
Lower pole
Tilt lock
Slider
Upper pole
1. Shade canopy in an upright position
2. Unlatch the slider downwards
3. Pull the slider downwards
4. Fix/wrap the cover
5. Attach the belt
Close shade
4
Click
The slider must engage audibly above.
Ensure that the area around the shade
is free of obstacles.
!
The tilt-lock must audibly engage
when putting the sunshade in upright
position!
!
If required, pull over the protective
cover (shade must be dry).
i
2.2
3.2
3.3
2.4
2.3
* depending on the fabric class, either separate or
sewn onto the cover
Supporting rods
