37
4
2. Place swivel base on cross base
3. Adjust holes / position
4. Place 4 washers in position
5.
Pre-assemble
swivel base
with
4 round-headed screws (M8 × 20mm)
Pre-assemble swivel base
4x
The sunshade is very heavy. Work
in a threesome and hold the sun-
shade securely.
!
5
1. Place sunshade on swivel base
2. Attach sunshade tightly to swivel
base, using 2 washers and 2 round
headed screws
3. Insert crank into carriage
Pre-assemble sunshade

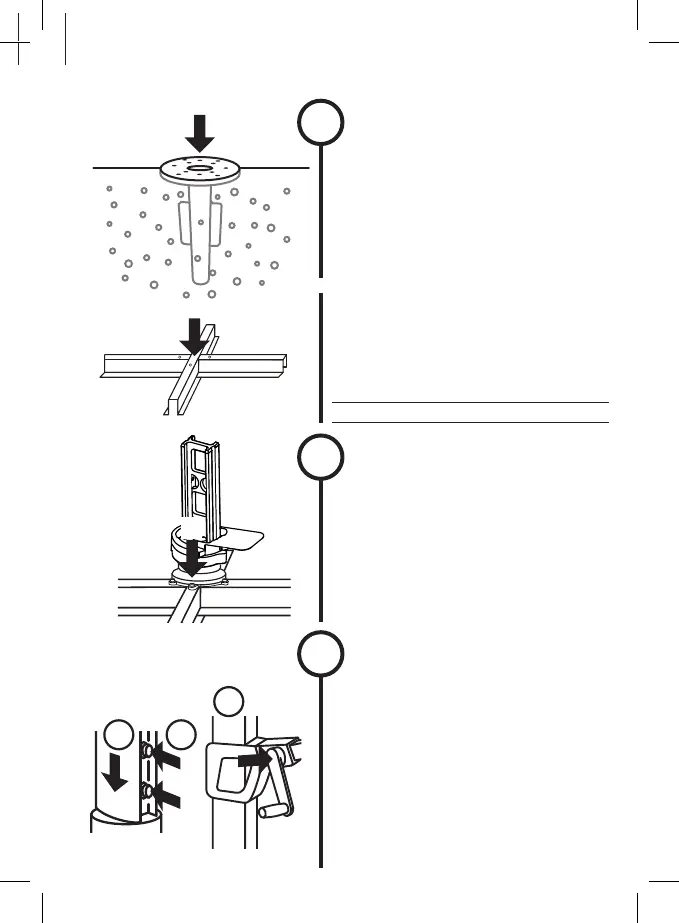

Prepare the floor fastening
Floor fastening weights and wind
resistance
Size minimum weight
[cm] [kg]
40 x 40 x 4 120
3
Place the floor fastening in accordance
with the separate instructions.
Prepare the floor fastening
or…
5.3
5.1 5.2
