INSTALLATION & USE
OPERATION OF CONTROLS
low mid
booster
light
on/off

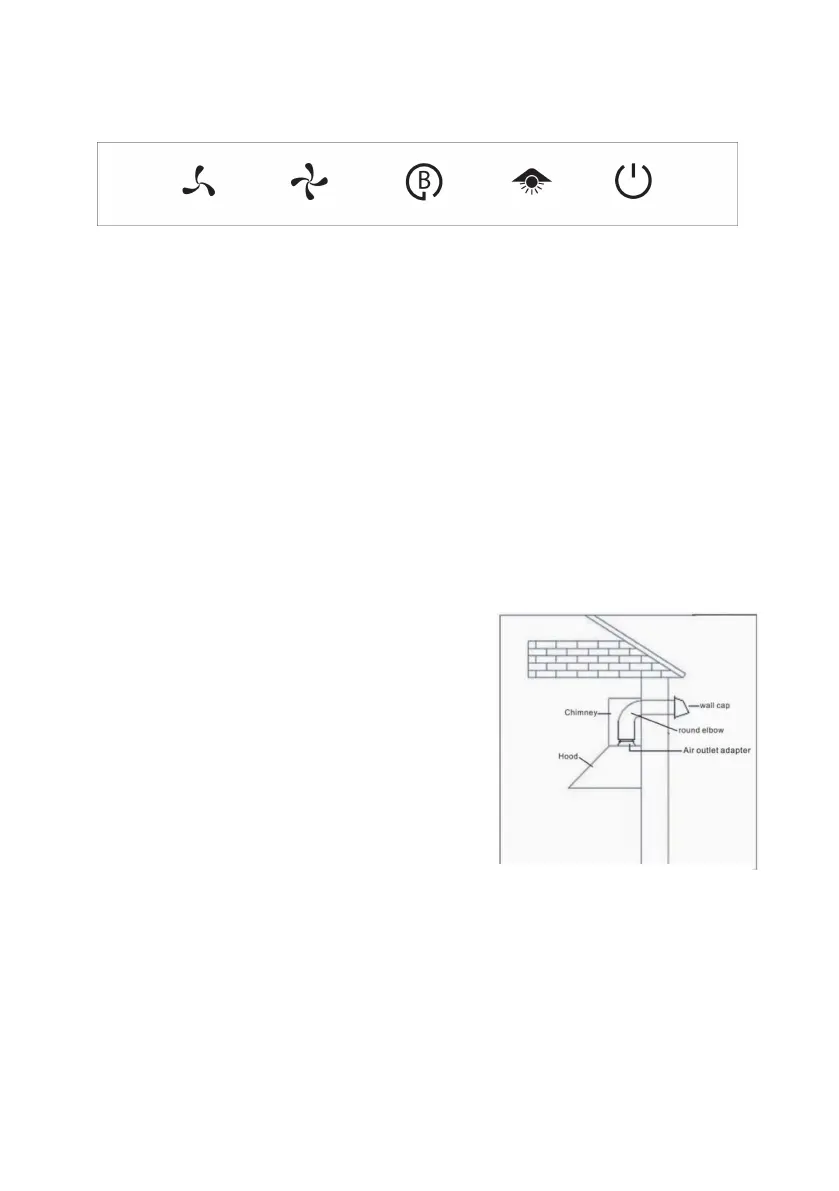

The hood is operated using the touch control panel.
The on/off symbol controls the hood power on and off.
The light symbol turns the shadow proof light on and off.
The fan symbols control the fan speed on 3 settings, low, mid speed and
booster for stir frying type applications.
Grease filters
The gr
ease filters should be cleaned frequently. Use a warm detergent
solution. The grease filters are washable and can be washed in a light cycle
of a dishwasher. This may cause discolouration but does not affect the
function of the filters
See "INSTALL FILTERS" section for removal and installation instructions.
INSTALLING THE DUCTWORK
Caution: To reduce fire risk, use metal ducting.
The outlet is 150mm diameter - reducing
the diameter will increase noise levels.
1.
Decide where the ductwork will run
between the hood and the outside.
2.
A straight, short duct run will allow the
hood to perform most efficiently.
3.
Long duct runs, elbows, and transitions
will reduce the performance of the rangehood. Larger diameter ducting
should be considered for best performance for longer duct runs.
4.
The air must not be discharge into a flue that is used for exhausting fumes
from appliances burning gas or other fuels. "Regulations concerning the
discharge of air have to be fulfilled".
5.
Install wall cap. Connect round metal ductwork to cap and work back
towards hood location. Use duct tape to seal the joints between
ductwork sections.
