5.

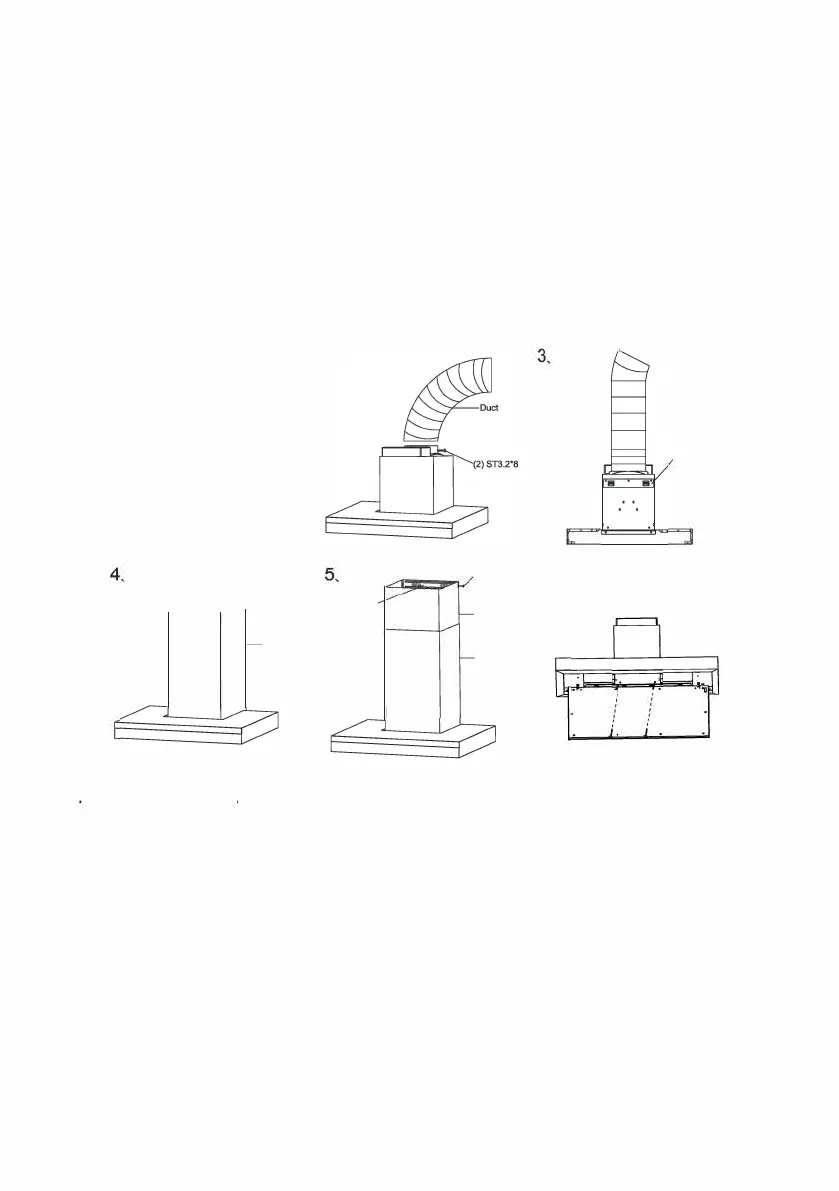

Secure the flue chimney mounting bracket to the wall using (2) ST 2.9 x
14mm mounting screws and wall anchors.
6.
Raise the flue chimney top until its holes align with holes in the chimney
mounting bracket (located on the wall).
7.
Level the hood and secure the chimney with 2 chimney bracket screws.
8.
Fix the flue chimney bottom with 3 screws from inside of body.
1. 2.
, ,
I
I
I
"
J
J
J
INSTALL FILTERS
Bottom
Bcket
6.
1.
To remove the grease filter, push in on the metal latch tab. This will
disengage the filter from the hood. Tilt the filter downward and
remove.
2.
To install the grease filter, align rear filter tabs with slots in the hood. Push
in the metal latch tab, push filter into position and release. Make sure the
filter is securely engaged after assembly.
