5

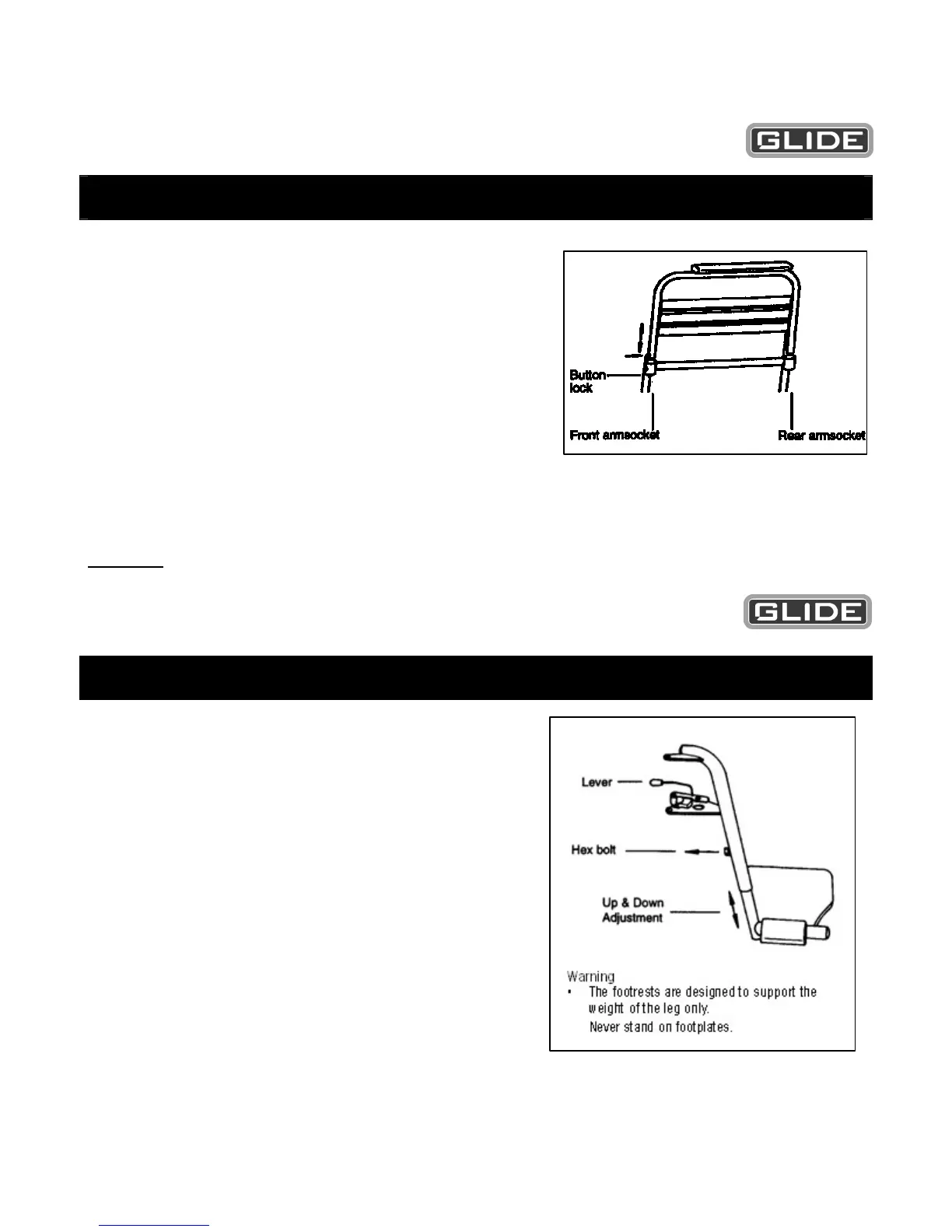

Section 4
Armrest
To remove:
• Push button and hold in on front arm socket.
• Using the other hand lift armrest upwards.
Note: Wheelchairs may be supplied without button
locks.
To install:
• Replace armrest into front and rear arm sockets,
push button in and armrest down
simultaneously.
• Ensure armrest is secure and button has popped
out.
Warning
• Never lift wheelchair by armrest as damage may
occur.
Section 5
Footrest
To remove:
• Push lever inwards to unlock and swing
outwards.
• Lift upwards to remove.
To install:
• Insert footrest back on the two locating pins
and swing inwards for automatic locking.
To adjust footplates:
• Remove hexagonal bolt.
• Move up or down. Line up the nearest hole for
the desired height.
• Replace hexagonal bolt and tighten.
Note: Your wheelchair may be fitted with
swing
away armrests. Simply lift up full arm and
swing to one side or lift up and remove
completely.
