Global 246340 - Attaching Duct to Ventilator Fan; Step 1: Unfold Ducting; Step 2: Extend Ducting; Step 3: Prepare Quick-Connect End

Customer Service
1-800-645-2986
Read and Save
These Instructions
globalindustrial.com

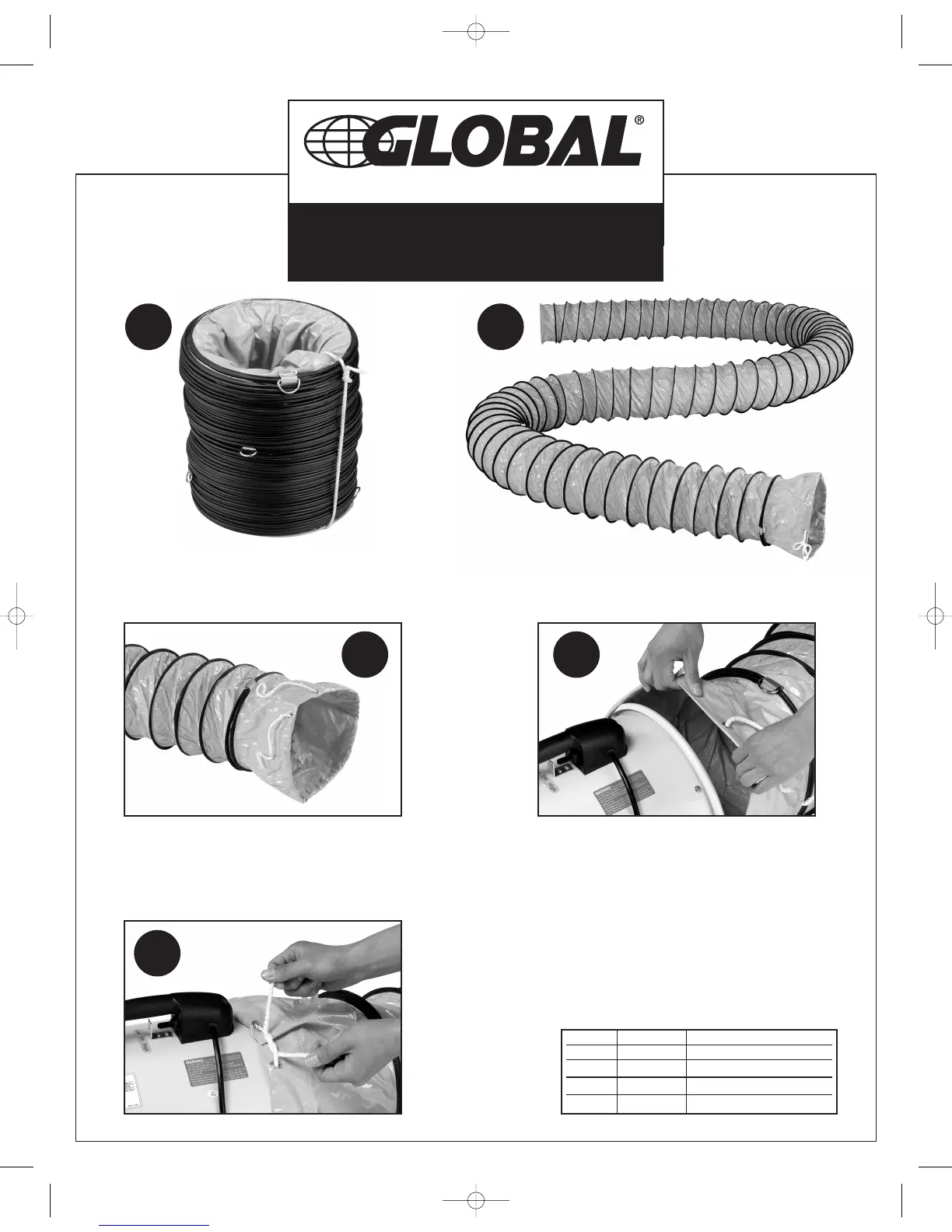

Attaching Duct
to Ventilator Fan
Untie string to
unfold ducting.
Fully extend length of ducting
and lay on floor or flat surface.
Open & unfurl the quick-connect
end of ducting.
Note: Quick-connect end includes
tie-string.
Wrap the quick-connect end over
the edging of blower fan.
Note: Wrap ducting over air outlet
for ventilation or over the air inlet
for exhausting applications.
Pull and tie
string over the
duct edging to
secure duct
in place.
Model Length Ft. Description
246341 16 For 8” Fan (Model 246340)
246342 32 For 8” Fan (Model 246340)
246344 16 For 12” Fan (Model 246343)
246345 32 For 12” Fan (Model 246343)
3
4
1 2
5
Portable Ventilator Fan Operation Manual 8/5/10 2:40 PM Page 2
