CONTENTS
• Machine
• 2 Batteries
• Squeegee Assembly
• Battery Charger
• Pad Driver
• Extra Squeegee

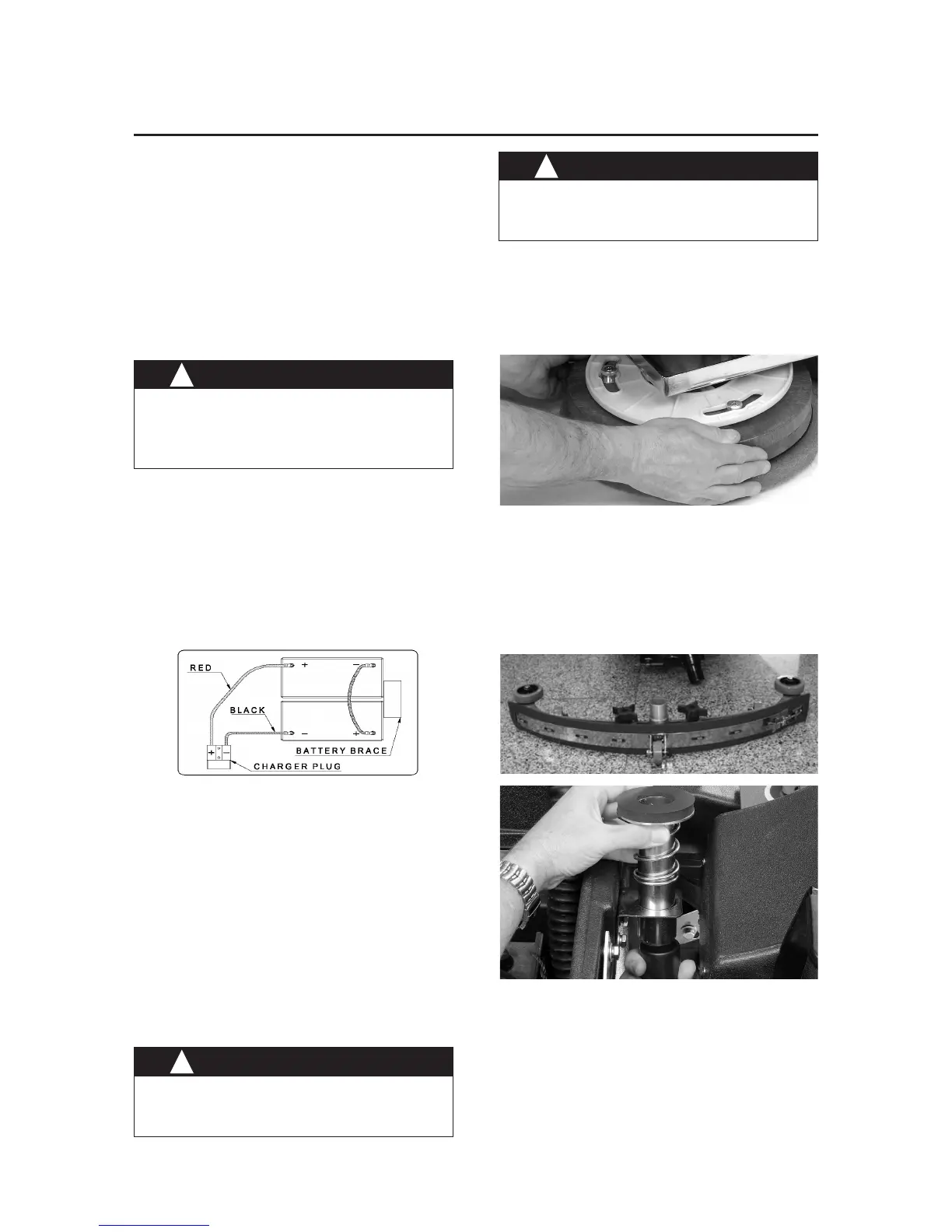

BATTERY CONNECTIONS
The batteries and charger are shipped separately and
will need to be installed and connected as shown in the
diagram below.
1. Be sure power switch is in the “off” position.
2.
Open recovery tank to gain access to battery compartment.
3. Carefully place the two batteries into the
compartment as shown in figure below. Place the
battery brace at the rear of the two batteries. DO
NOT DROP BATTERIES INTO COMPARTMENT!
4. Connect battery cables in the following sequence.
1. RED to POSITIVE
2. BLACK to NEGATIVE
5. Apply a coat or protective spray on the cable
connections to prevent battery corrosion.
MACHINE SET UP - PRE-OPERATION CHECKS
1. Check battery meter to make sure batteries are fully
charged. (see BATTERY CHARGING)
2. Check that squeegee is properly installed.
3. Check that brush / pad is properly installed.
INSTALLING PAD DRIVER OR BRUSH
1. Ensure that the machine is turned off
2. Lower brush head assembly to the floor by stepping
on the foot pedal and pushing pedal forward.
3. Tilt the machine backward to access the drive motor
hub.
4. If using a pad driver, first attach the appropriate pad
to the pad driver surface.
5. Mount the pad driver or brush to the drive motor hub
by lining up the three studs with the three holes in the
drive motor hub. Once in the holes, rotate the driver
toward the spring clip to lock driver into place.
MOUNTING THE SQUEEGEE
1. Pull back on the squeegee lift lever to raise the
squeegee bracket up.
2. Loosen the two knobs on the squeegee and slide the
squeegee into the slots at the rear of the squeegee
bracket (the wheels on the squeegee point to the
back).
3. Tighten the knobs securely.
4. Vacuum hose connects securely to squeegee
pick-up tube and rests with metal ring and spring
which connects to recovery tank with suction
when motor is on.
MACHINE SET UP & INSTALLATION
WARNING
Batteries emit hydrogen gas. Explosion or
fire can result from hydrogen gas. Keep
sparks and open flames away! Keep battery
compartment open when charging.
5
!
CAUTION
Remove the squeegee assembly prior to
tilting the machine backwards. It makes the
process faster and easier.
!
WARNING
Do not keep the machine tilted back for
a long time. This could cause battery acid to
leak from the batteries.
!
