7. CONNECT WATER DRAIN LINES
• All water connections and drains must comply with local codes.

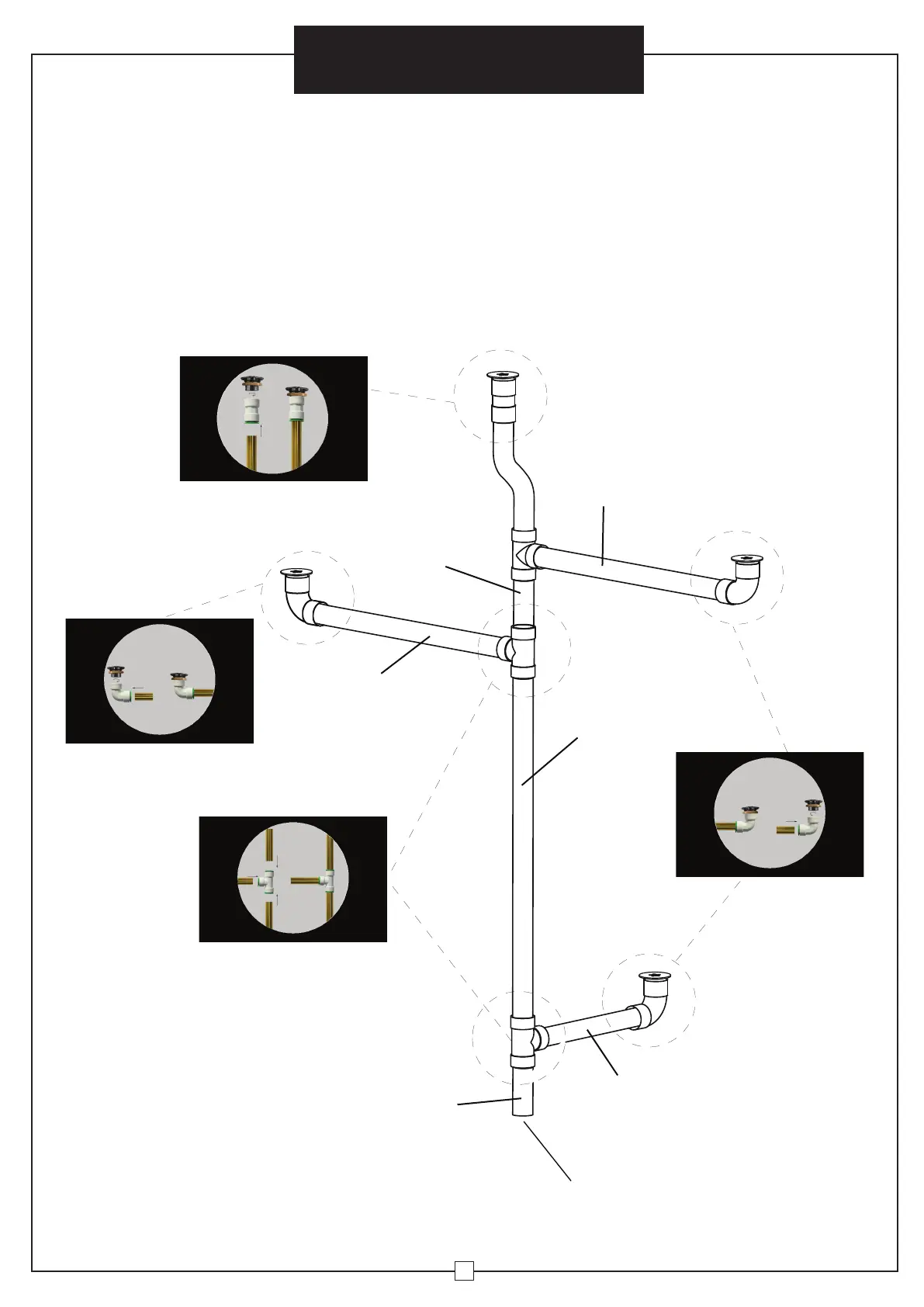

• Through the rear access windows, connect water drain lines as illustrated below.
NOTE: All drain lines attach with quick connect connections.
• Installation of a trap on the water drain line may be necessary; check local codes.
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
P11
(16-3/4'')
Connect (P9) to Drinking
Fountain Drain and insert (P11)
Connect all 3 Drain Tubes
to (P10)
Connect (P8) to Bottle
Filler Drain and insert (P12)
Connect (P9) to Drinking
Fountain Drain and insert (P11)
P11
(3-3/4'')
P11
(16-3/4'')
P11
(19'')
P11
(2-1/2'')
P11
(14-1/4'')
Confirm with local codes for
trap and other drainage requirements
