Instruction Manual
9

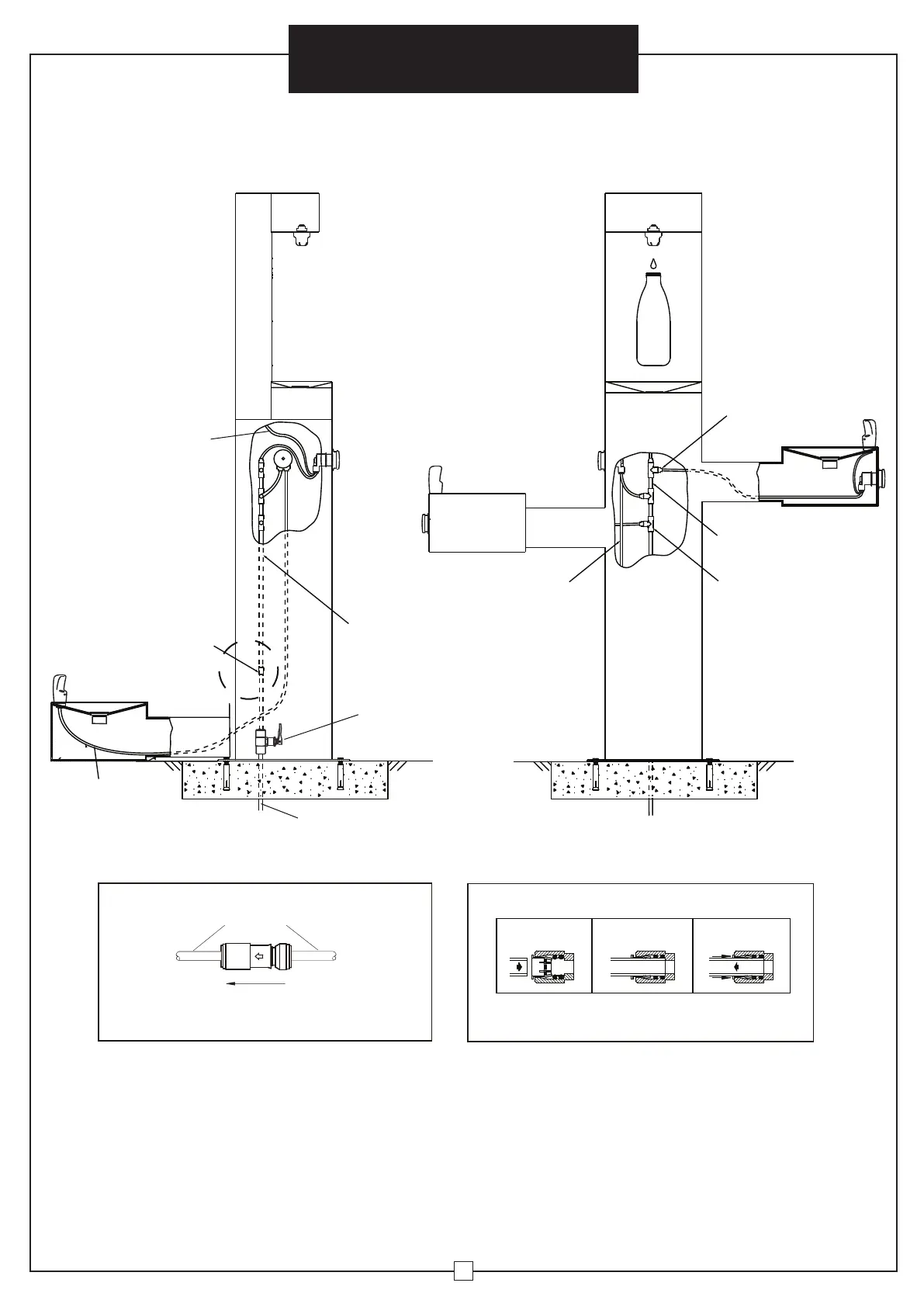

FIG. 1
3/8” O.D. TUBE CONNECT
COLD WATER SUPPLY
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
A B C
FIG. 2
WATER INLET LINE CONNECTION BREAKDOWN:
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
NOTE: WATERFLOW DIRECTION
• If drinking fountain is being installed in areas where cold temperatures may occur, wrap
pipe insulation (P7) around all water inlet lines.
• Installation of a trap on the water drain line may be necessary; check local codes.
Always remove trap before winterization draining.
CAUTION: Before freezing temperatures occur, see Draining and Winterization section
of this manual (page 13) for proper preparation.
P4: Straight Flow Check Valve: All Water Inlet Connec�ons:
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
Install Shut-off Valve
(Not Included)
WATER
SOURCE
P5
(39-1/4”)
P2
P3
P6
(2”)
P5
(51-1/4”)
P6
(21-3/4”)
P4
P5
(51-1/4”)
SIDE VIEW FRONT VIEW
