Global 761221 - Connect Water Inlet Lines

P5
(51-1/4”)
Instruction Manual
8
6. CONNECT WATER INLET LINES
• Install a shut-off valve (not included) on the water supply.
• All water connections and drains must comply with local codes.

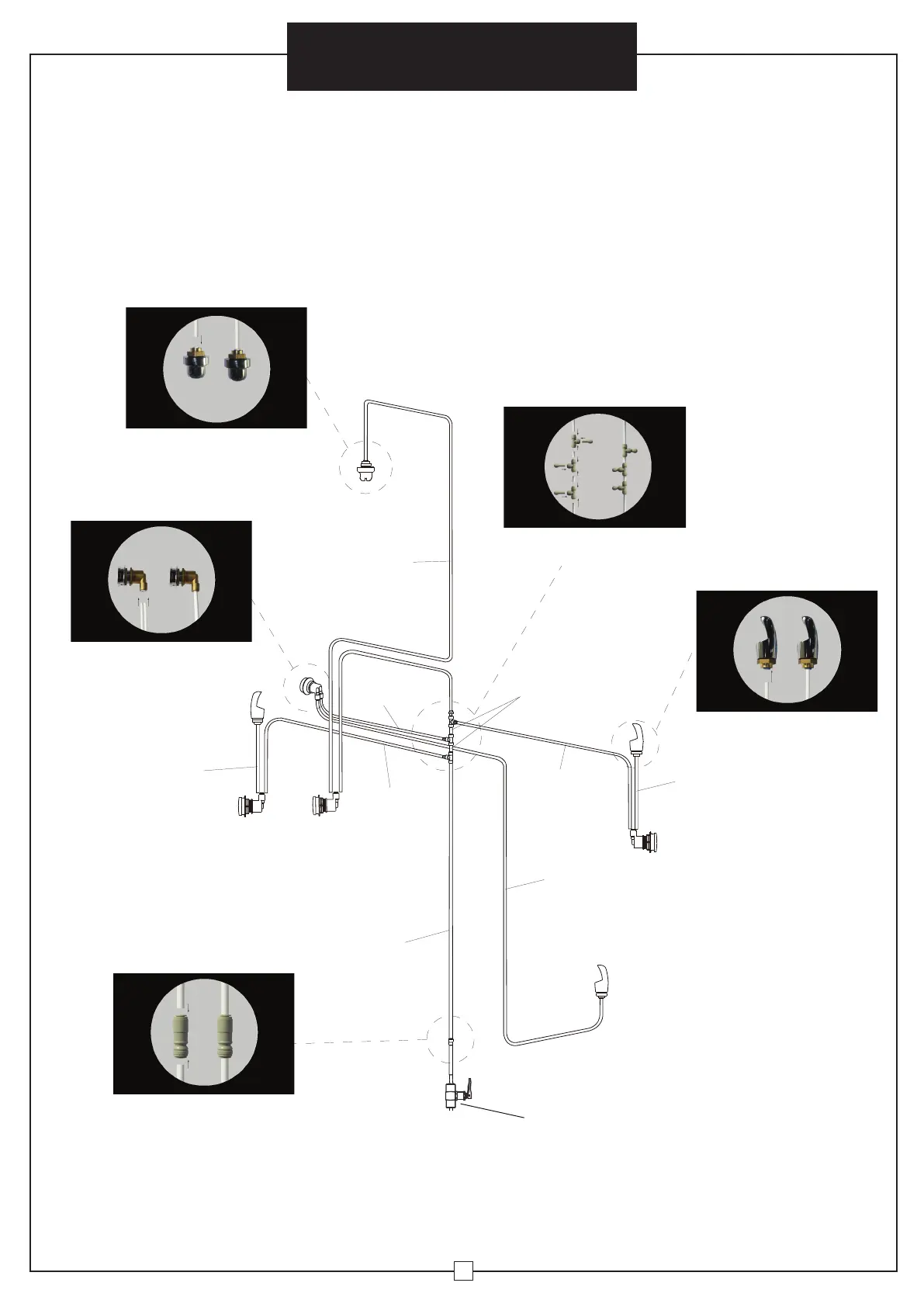

Though the rear access windows, connect water inlet lines as illustrated below:
Connect (P5) to Spout
Connect Inlet Adapter (P2) to
Union T-Connector (P3)
Connect (P5) to Bubbler
P6
(21-3/4”)
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
Connect (P5) to Push Button
Connect (P6) to Straight
Flow Check Valve (P4)
(See Fig. 1 on next page)
INSTALL SHUT-OFF VALVE
(NOT INCLUDED)
P6
(2”)
P5
(6-1/4”)
P5
(6-1/4”)
P5
(39-1/4”)
P5
(25-1/2”)
P5
(6-1/4”)
P5
(25-1/2”)
