Global 761221 - Specifications; Part Breakdown; Required Tools

SPECIFICATIONS
Features:
316 Stainless, Laminar Flow, Heavy Duty, Vandal Resistant
Finish: SS Finish, Black(BK), Blue(BL), Green(GN)
Power: No Electrical Required
Bubbler Vandal Resistant
Activation Type: Push Button
Mounting Type: Floor Mount/Free Standing
Product Dimensions: 47-3/4"L x 28-1/2"W x 60-1/4"H
Weight: 143 lbs.
Installation Location: Outdoor
No. of Stations: 4

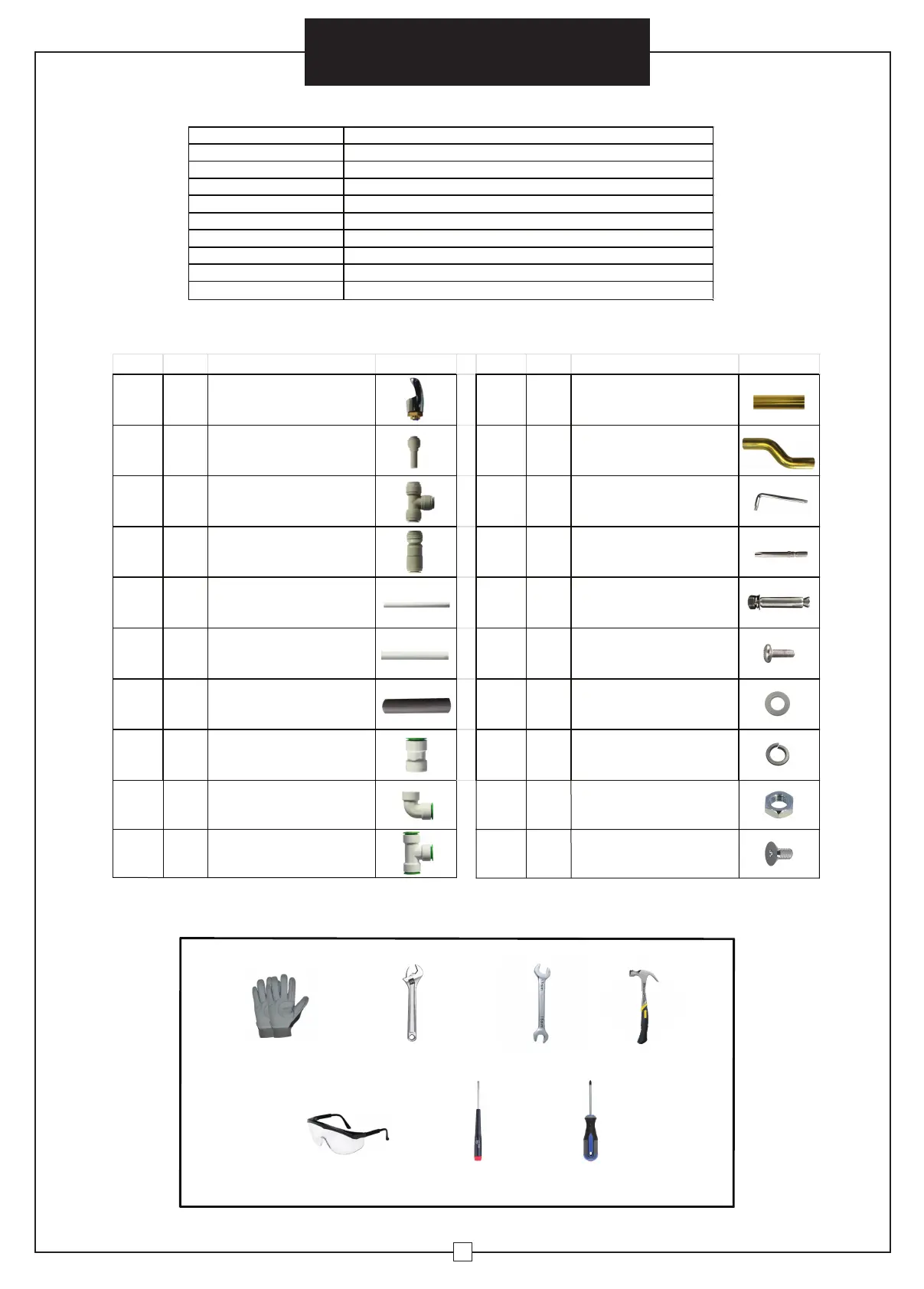

PART BREAKDOWN
Instruction Manual
3
REQUIRED TOOLS:
Safety Gloves
15-17mm
Wrench
Hammer
Safety Glasses
Adjustable Wrench
Phillips-Head
Screwdriver
Ref. Qty. Descrip�on Ref. Qty. Descrip�on
P1 3 Bubbler
P2 4 Inlet Adapter
P3 3
Union T-Connector
P11 6
Drain Tubing
P4 1
Straight Flow Check Valve
P12 1
Offset Drain Tubing
P5 8
1/4" O.D. Water Inlet
H1 1
Torx Key Wrench
P6 4
3/8" O.D. Water Inlet
H2 1
Torx Drill Bit
P7 12 Pipe Insula�on
H3 4
Anchor Kit
P8 1
Straight Drain Connector
H4 8
M6 x 10 Pan Head Screw
(1) 39-1/4”, (2) 25-1/2”, (3) 6-1/4”,
(1) 13”, (1) 51-1/4”
(1) 21-3/4”, (1) 4“, (2) 2”
(2) 16-3/4”, (1) 19”, (1) 3-3/4”
(1) 14-1/4”, 2-1/2”
Small Flathead
Screwdriver
P9 3
Elbow Drain Connector
P10 3 T-Shape Drain Connector
H5
H6
H7
4
4
4
M10 Washer
M10 Lock Washer
M10 Nut
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
H8 M6 Flat Head Screw4
