Globe GL Series Quick Manual

JUNE 2018 GFS-400 (Formerly A-39)
QUICK RESPONSE AUTOMATIC
SPRINKLERS GL SERIES INTERME-
DIATE LEVEL UPRIGHT PENDENT
NOTE: METRIC CONVERSIONS ARE APPROXIMATE.
1
OTHER FINISHES AVAILABLE ON SPECIAL ORDER.
SPECIFICATIONS
PRINTED U.S.A.
4077 AIRPARK DRIVE, STANDISH, MICHIGAN 48658
F A X 9 8 9 - 8 4 6 - 9 2 3 1
www.globesprinkler.com
9 8 9 - 8 4 6 - 4 5 8 3
1-800-248-0278
GLOBE
®
PRODUCT WARRANTY
Globe agrees to repair or replace any of its own manufactured
products found to be defective in material or workmanship for a
period of one year from date of shipment.
For specic details of our warranty please refer to Price List
Terms and Conditions of Sale (Our Price List).
QUICK RESPONSE
AUTOMATIC SPRINKLERS
GL SERIES
INTERMEDIATE LEVEL
UPRIGHT PENDENT
ORDERING INFORMATION
• Quantity • SIN • Style • Orice
• Thread Size • Temperature • Finishes desired
• Quantity - Wrenches - P/N 325390 (1/2");
P/N 312366 (L.O.); P/N 333010 (E.L.O.)
SPECIFY
APPROVALS
NOMINAL "K" FACTOR THREAD SIZE LENGTH FINISHES
5.6 (80 metric) 1/2"NPT (15mm) 2 1/4" (5.7cm)
Factory Bronze
1
8.0 (115 metric) 1/2"NPT (15mm) 2 1/4" (5.7cm)
8.0 (115 metric) 3/4"NPT (20mm) 2 7/16" (6.2cm)
11.2 (160 metric) 3/4"NPT (20mm) 2 7/16" (6.2cm)

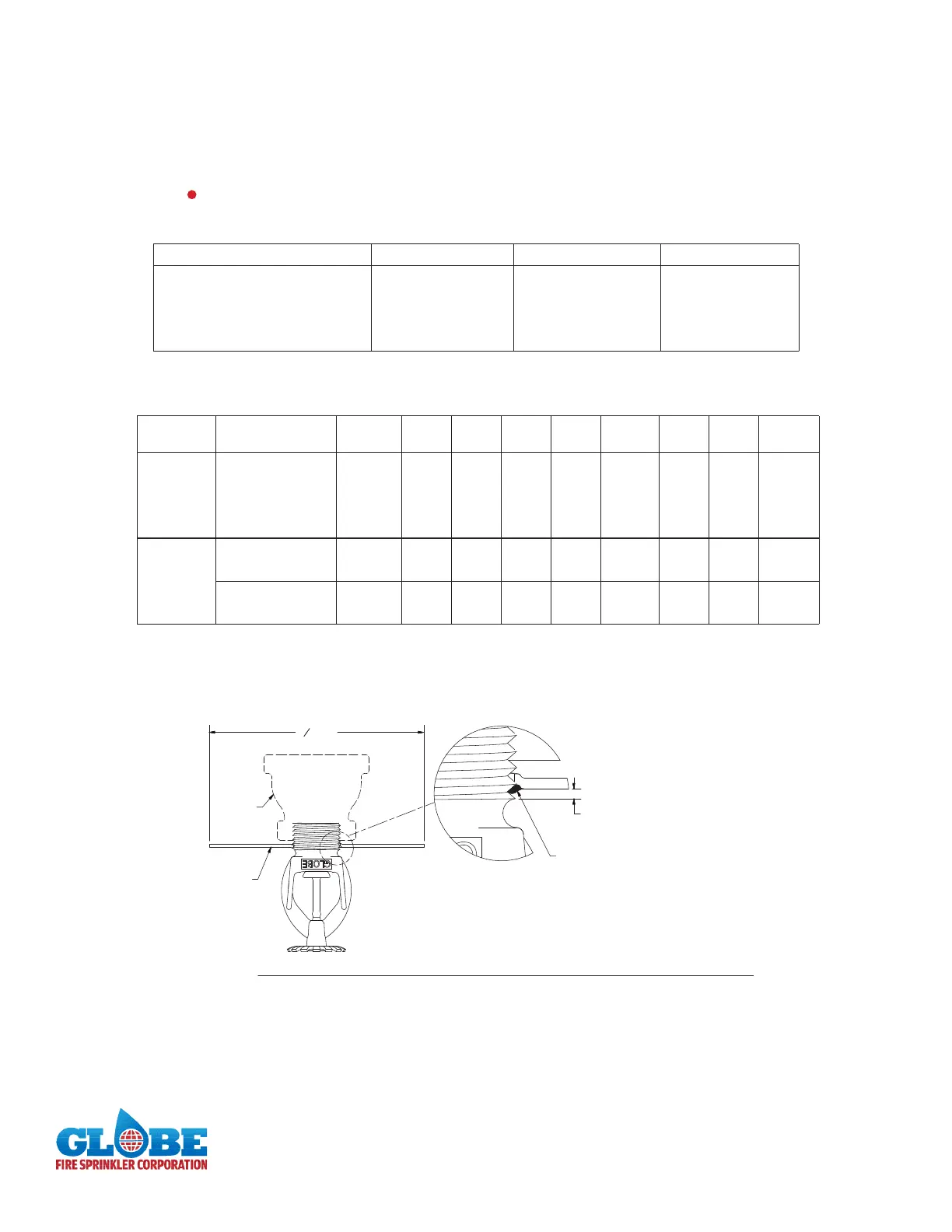

A A
RACK SHIELD
1" x 1/2"
REDUCER
3
3
4
" DIA.
0 to ONE-HALF
THREAD MAX.
ADHERE RACK SHIELD INTO PLACE AS SHOWN,
USING LOCTITE OR EQUIVALENT.
NOTE: INSTALL RACK SHIELD ONTO SPRINKLER THREADS BEFORE SYSTEM INSTALL.
1
SPRINKLERS SHALL BE LIMITED AS PER THE REQUIREMENTS OF NFPA13 AND ANY OTHER RELATED DOCUMENTS.
*
1/2"NPT; RETRO-FIT ONLY
STYLE
SIN
(previous SIN)
"K"
FACTOR
135°F
(57°C)
155°F
(68°C)
175°F
(79°C)
200°F
(93°C)
286°F
(141°C)
cULus FM
SHIELD
P/N
UPRIGHT
GL5617 5.6 X X X X X X X
N/A
GL8117 8.0* X X X X X X ---
GL8120 8.0 X X X X X X X
GL1124 11.2 --- X X X X X ---
$
PENDENT
GL5601 (GL5612) 5.6 X X X X X X X
325706
GL8101 (GL8112) 8.0* X X X X X X ---
GL8106 (GL8108) 8.0 X X X X X X X
325707
GL1114 (GL1115) 11.2 --- X X X X X ---
$
THE WATER SHIELD FOR THE PENDENT MAY BE EITHER FACTORY FITTED OR INSTALLED IN THE FIELD, PLEASE SPECIFY ON ORDER.
