DEC 2017 GFS-410 (Formerly A-48)
QUICK RESPONSE
UPRIGHT PENDENT
AUTOMATIC SPRINKLERS
FOR USE IN NFPA 13
CMDA
STORAGE APPLICATIONS
TECHNICAL DATA
• See reverse side for Approvals and Specifi cations.
• Temperature Ratings -
155°F (68°C), 175°F (79°C), 200°F (93°C), 286°F (141°C)
• Water Working Pressure Rating - 175 psi (12 Bars)
• Factory tested hydrostatically to 500 psi (34 Bars)
• Maximum low temperature glass bulb rating is -67°F (-55°C)
• Frame - bronze • Defl ector - brass • Screw - brass
• Bulb seat - copper • Spring - nickel alloy • Seal - tefl on
• Bulb - glass with alcohol based solution, 3mm size
DESCRIPTION AND OPERATION
SPRINKLER TEMPERATURE RATING/CLASSIFICATION and COLOR CODING
CLASSIFICATION
AVAILABLE SPRINKLER
TEMPERATURES
BULB COLOR
N.F.P.A. MAXIMUM
CEILING TEMPERATURE
ORDINARY
INTERMEDIATE
HIGH
155°F
175°F/200°F
286°F
68°C
79°C/93°C
141°C
RED
YELLOW/GREEN
BLUE
100°F
150°F
225°F
38°C
66°C
107°C

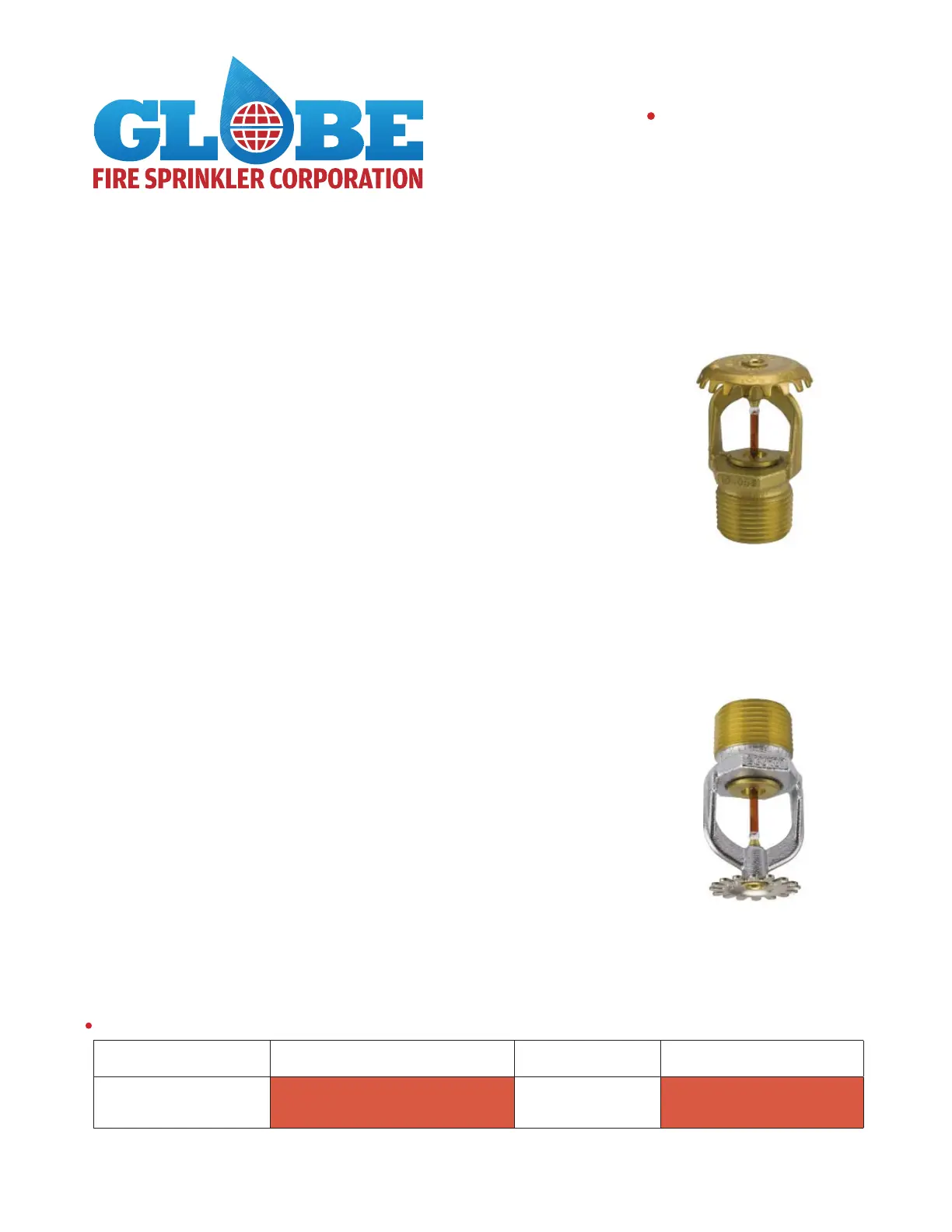

QUICK RESPONSE
UPRIGHT
GL1123
The Globe Quick Response GL1114 Pendent and
GL1123 Upright Sprinklers are intended for use in NFPA 13
Systems when installed in accordance with Control Mode Density
Area protection criteria as specifi ed in the NFPA 13 standard.
The GL1114 and GL1123 sprinklers have a low profi le yet
durable design which utilizes a 3mm frangible glass ampule as
the thermosensitive element. While the sprinklers provide an
aesthetically pleasing appearance, they serve to protect various
area coverages. This sprinkler series is available in pendent, and
upright styles, and several temperature ratings and fi nishes to
meet varying design requirements.
The heart of Globe's GL1114 and GL1123 sprinklers prov-
en actuating assembly is a hermetically sealed frangible
glass ampule that contains a precisely measured amount of
fl uid. When heat is absorbed, the liquid within the bulb expands
increasing the internal pressure. At the prescribed temperature
the internal pressure within the ampule exceeds the strength
of the glass causing the glass to shatter. This results in water
discharge which is distributed in an approved pattern.
QUICK RESPONSE
PENDENT
GL1114
SERIES GL-QR/ST
SERIES GL-QR/ST
