8 Flue Preparation Telescopic and Standard Flue
Diagram 8.2
12842
45
o
Bend
2000460485
(2off)
90
o
Bend
2000460484
0.5m
EXTENSION
2000460481
1m
EXTENSION
2000460482
2m
EXTENSION
2000460483
VERTICAL
FLUE
ADAPTOR
A2024600

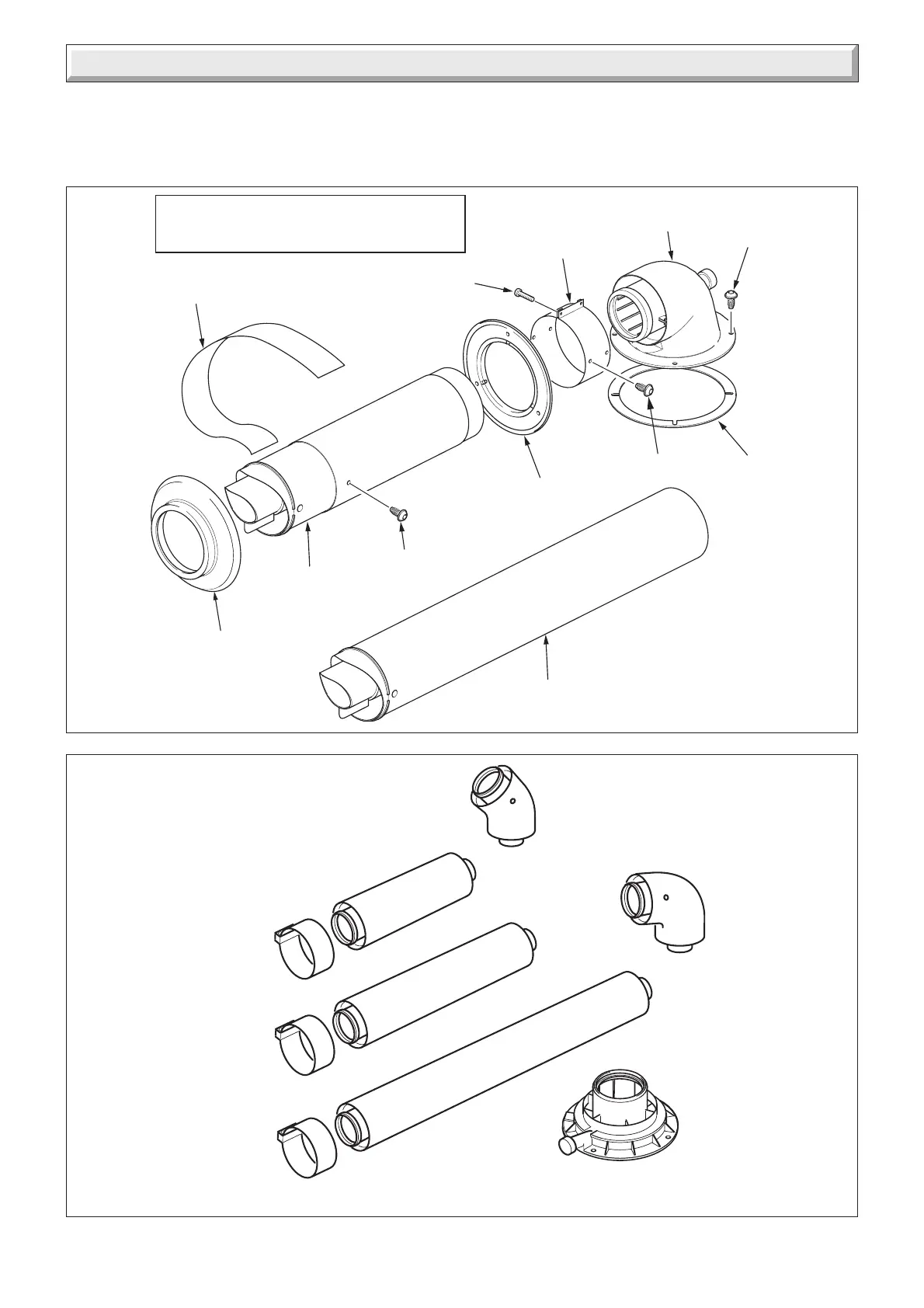

8.1 Flue Components
The components supplied in the Standard and Telescopic kit
are shown in diagram 8.1.
12841
Diagram 8.1
TELESCOPIC
TERMINAL ASSEMBLY
SEALING
COLLAR
SEALING
COLLAR
SECURING
COLLAR
FLUE
ELBOW
GASKET
(fitted)
SEALING
TAPE (telescopic only)
Top Outlet Horizontal Concentric Flue Packs:
A2043600 Horizontal telescopic flue pack.
A2043400 Standard horizontal flue pack.
STANDARD
TERMINAL ASSEMBLY
SCREW x 1
SCREW x 2
SCREW x 2
SCREW x 4
Additional flue accessories are available to suit your site
conditions, see diagram 8.2.
The Glow-worm Flue Options Guide, available on request or
through the web site, describes in detail the necessary
accessories.

Glow-worm 18hxi Specifications

General

Model	18hxi
Category	Boiler
Type	Condensing
Fuel	Natural Gas
Central Heating Output	18 kW
Flue Options	Horizontal/Vertical
Mounting	Wall-mounted
ERP Rating	A
Weight	32 kg
Central Heating Flow Temperature Range	30°C - 80°C
