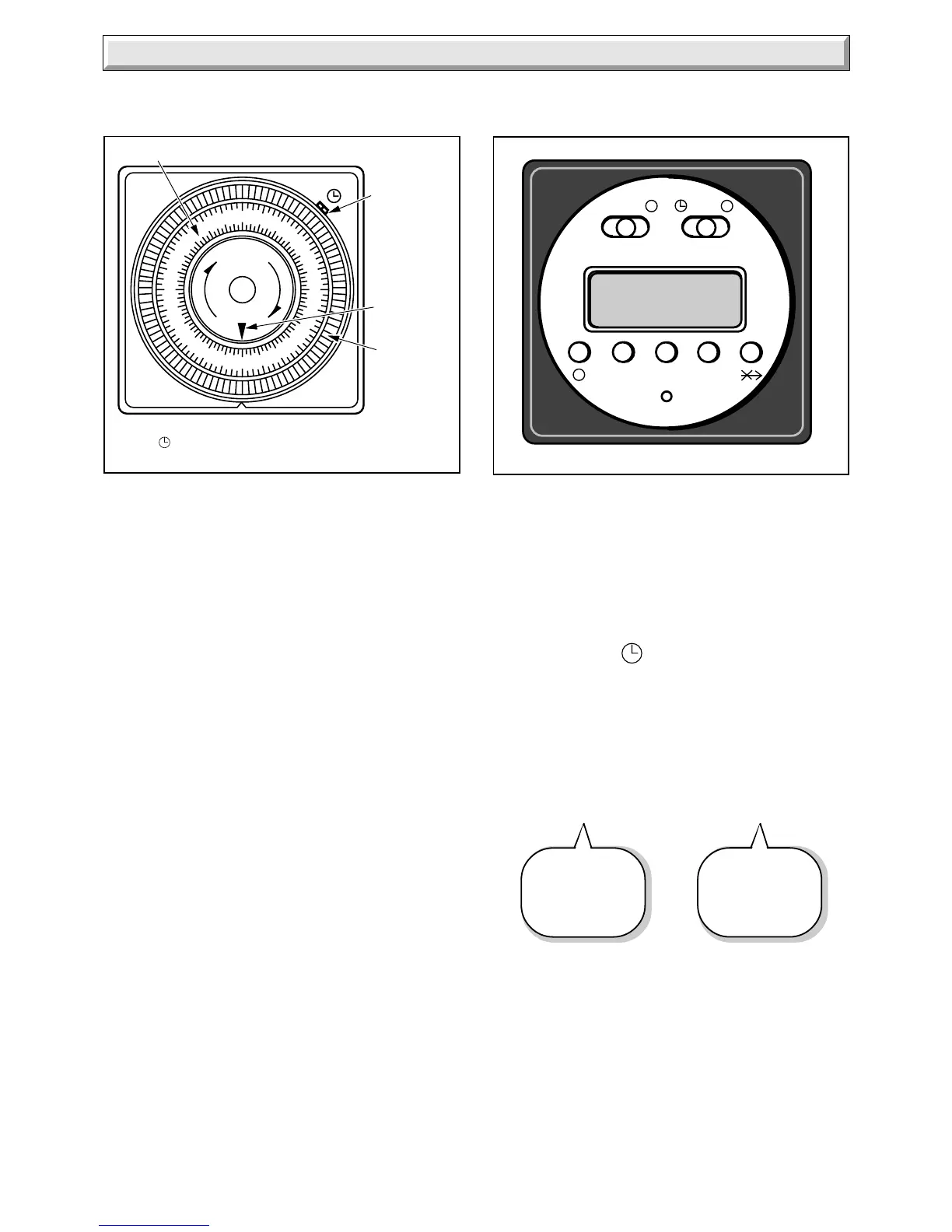

Digital Clock / Timer
221062A
AUTO
RUN
MT
WTh
FS
Su
P
DAY HR MIN
P
R
Diagram 5
CLOCK/TIMER
CLOCK/TIMER
MOUNTING
BRACKET
RETAINING
CLIP (2)
5657
SPACER
Because of our constant endeavour for improvement details may vary slightly from those in the instructions.
DIGITAL CLOCK/TIMER STYLE 2
5650
Diagram 7
Setting Instructions for SWIFT-FLOW
Digital Timer Style 2.
The following instructions are provided so that, if the
Instructions for Use are missing the clock/timer can be
set working.
This is a twenty four hour clock, that is 1pm is 1300.
1. Press “R” Reset.
2. Set switch to “ ”.
3. Set time of day “HR” “MIN”.
4. Set day of week “DAY.
5. Set switch to “RUN” - colon will flash.
Once this is done the following preset times will
operate:-
MON to FRI - “ON” 06.30
“OFF” 08.30
“ON” 16.30
“OFF” 22.30
SAT and SUN - “ON” 07.00
“OFF” 09.00
“ON” 16.00
“OFF” 23.00
COMMON
MAINS
NEUTRAL
(N)
HEATING ON
MAINS
LIVE (L)
KEY
BROWN
BLUE
YELLOW
BR
B
Y
Diagram 6
Y
Y
BR
B
ELECTRICAL
CONNECTORS
CLOCK/
TIMER
*
4 WAY
TERMINAL
BLOCK
*Remove yellow
*link
Y2
Y1
N
L
B BRYY
BRBYY
5347
RESET
BUTTON
