10

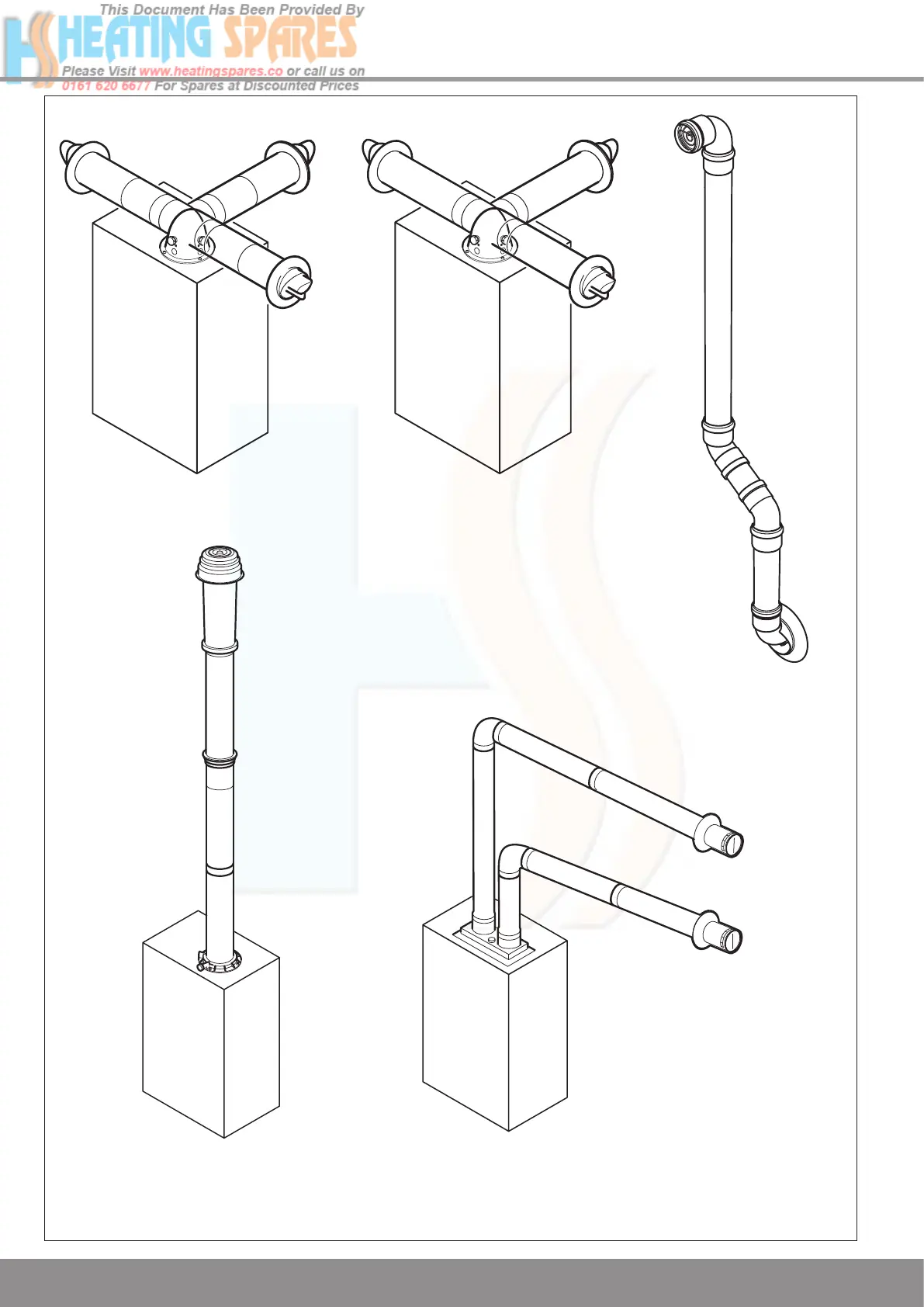

4 Flue Options and Terminal Clearances
Top horizontal telescopic flue (Ø60/100)
Part No. A2043600 - Section 10, page 20
Top horizontal standard flue (Ø60/100)
Part No. A2043400 - Section 10, page 24
Twin Flue
Twin Flue Adapter, concentric flue (Ø80)
Part No. A2011000 - Section 10, page 31
Diagram 4.1
Plume Management Kit
basic set, white, concentric flue
(Ø60/100) - Part No. A2044100 for
use with Part No. A2043400 and
Part No. A2043600 - Section 10,
page 34
Vertical Flue
Vertical Flue Adapter, concentric flue (Ø60/100)
Part. No. A2024600 - Section 10, page 28
Vertical flue terminal kit, concentric flue (Ø60/100)
Part. No. 2000460480 - Section 10, page 28
