Onan Motor Generator

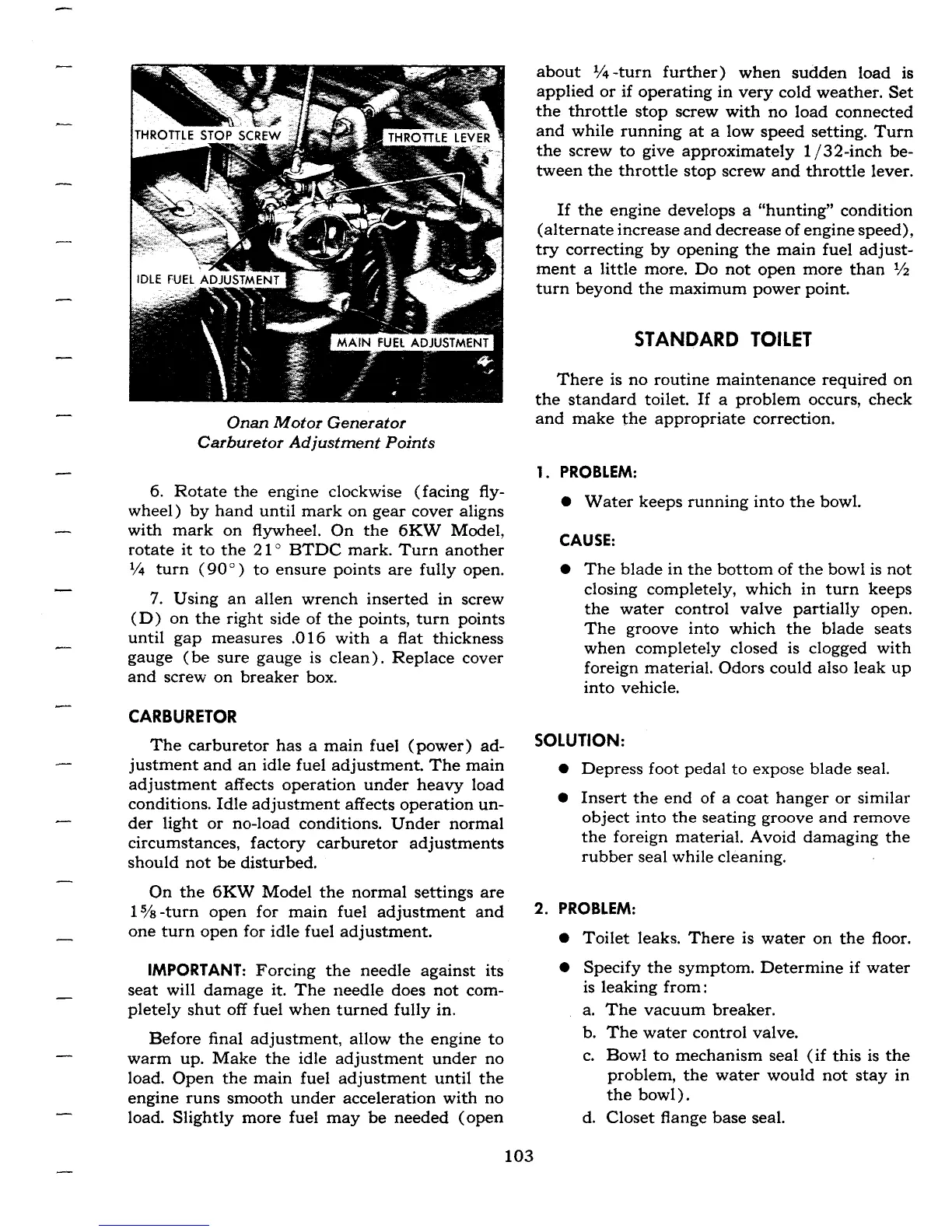

Carburetor Adjustment Points
6 . Rotate the engine clockwise (facing fly-
wheel) by hand until mark on gear cover aligns
with mark on flywheel . On the 6KW Model,
rotate it to the 21 ° BTDC mark . Turn another
1 /a
turn (90 0 ) to ensure points are fully open .
7 . Using an allen wrench
inserted in screw
(D) on
the right side of the points, turn points
until gap measures
.016 with a flat thickness
gauge (be
sure gauge is clean) . Replace cover
and
screw on breaker box .
CARBURETOR
The carburetor has a main fuel (power) ad-
justment and an idle fuel adjustment . The main
adjustment affects operation under heavy load
conditions . Idle adjustment affects operation un-
der light or no-load conditions . Under normal
circumstances, factory
carburetor adjustments
should not
be disturbed .
On the 6KW Model the normal settings are
1 5 /8 -turn open for main fuel adjustment and
one turn open for idle fuel adjustment .
IMPORTANT : Forcing the needle against its
seat will damage it . The needle does not com-
pletely shut off fuel when turned fully in .
Before final adjustment, allow the engine to
warm up . Make the idle adjustment under no
load .
Open
the main fuel adjustment until the
engine
runs smooth under acceleration with no
load . Slightly more fuel may be needed
(open
10 3
about 1 /4 -turn further) when
sudden load is
applied or if operating in very cold weather
. Set
the throttle stop screw
with no load connected
and while running
at a low speed setting . Turn
the
screw to give approximately 1/32-inch be-
tween the throttle stop screw and throttle lever .
If the engine develops a "hunting" condition
(alternate increase and
decrease of
engine speed),
try correcting by opening the main fuel adjust-
ment a little more . Do not open more than 1 /z
turn beyond the maximum power point .
There is no routine maintenance required on
the standard toilet . If a problem occurs, check
and make the appropriate correction .
1 . PROBLEM :
Water keeps running into the
bowl
.
CAUSE :
The blade in the bottom of the bowl is not
closing completely, which in turn keeps
the water control valve partially open
.
The groove into which the blade seats
when completely closed is clogged with
foreign material . Odors could also leak up
into vehicle .
SOLUTION :
Depress foot pedal to expose blade seal .
Insert the end of a coat hanger or similar
object into the seating groove and remove
the foreign
material . Avoid damaging
the
rubber seal while cleaning .
2 . PROBLEM :
STANDARD TOILET
Toilet leaks . There is water on the floor .
Specify the symptom . Determine if water
is leaking from
a . The vacuum breaker .
b . The water control valve .
c . Bowl to mechanism seal (if
this is the
problem,
the water would not stay in
the bowl) .
d . Closet flange base seal .
