Removing Engine
Access Cover

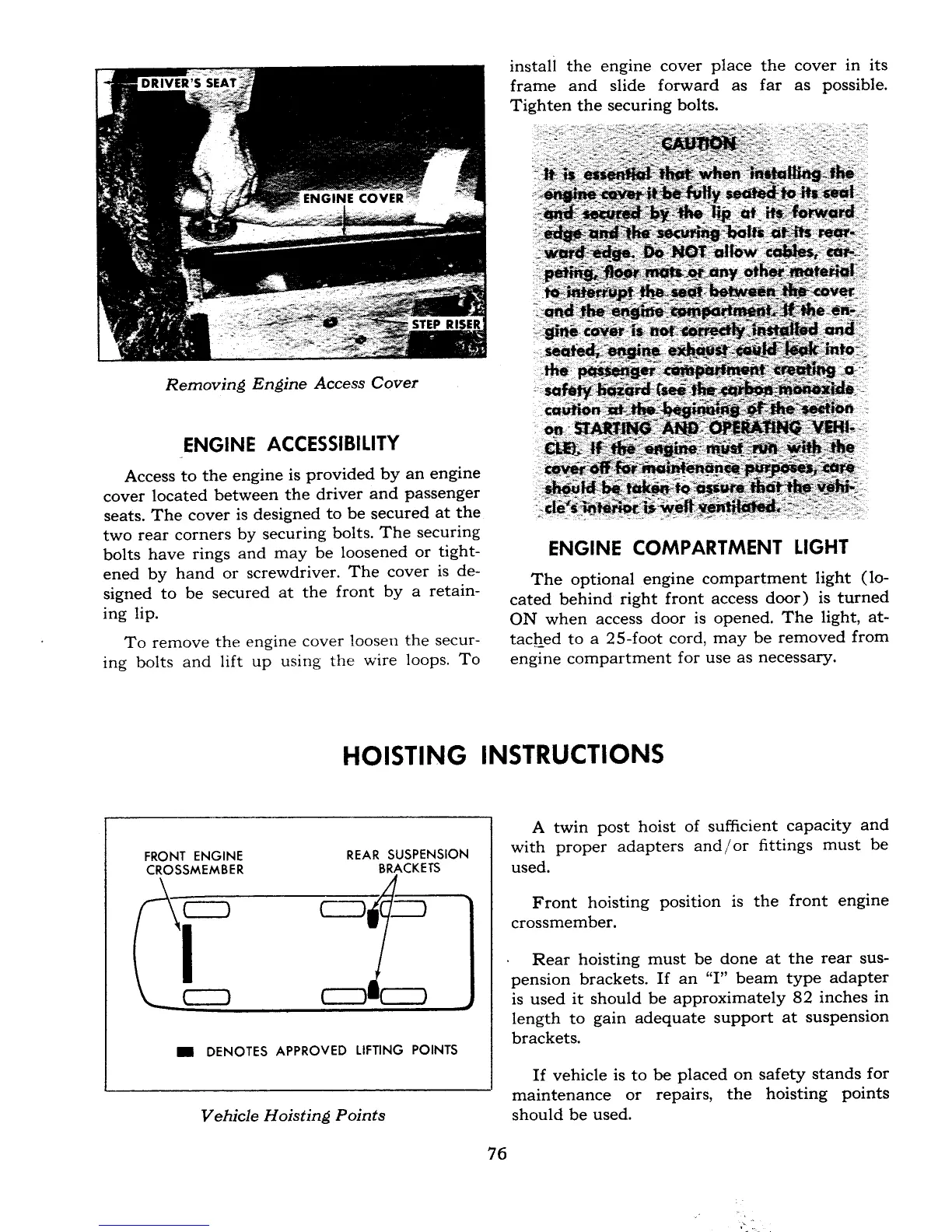

ENGINE ACCESSIBILITY
Access
to the engine is provided
by an engine
cover located
between the driver
and passenger
seats . The
cover is designed to be secured
at the
two rear
corners by securing bolts .
The securing
bolts have
rings and may be loosened
or tight-
ened by
hand or screwdriver . The
cover is de-
signed to be
secured at the front by a
retain-
ing lip .
To remove the
engine cover loosen the secur-
ing bolts and lift up
using the wire loops . To
FRONT ENGINE

REARSUSPENSION
CROSSMEMBER

BRACKETS
DENOTES APPROVED
LIFTING POINTS
Vehicle Hoisting
Points
HOISTING INSTRUCTIONS
7 6
install the engine cover place the cover in its
frame
and slide forward as far as possible .
Tighten the securing
bolts .
It- is essentiat - that when
installing_
.
the
engine covet it be
fully
seated to its
seal
emf
secured-by the lip at - its forward
edge -
nrrd - the securing bolts of its rear-
: worst- - edge . DoNOT allow cables,
car- .
peting, -floor mots-or any other material
to- interrupt the seat between-the - cover
and the engine comport ti_ nt, 1(the
en-
Sine
cover is not correctly installed and
seated, engine exhaust
.cou_tci look into -
the passenger
compartment creating a
safety hazard Csee the curb
.rnoaoxide
caution - at the : begirnrfirag of-thesection
on
STARTING
-
AND -- Of OPERATING
i(EHl-
trW .
If the engine, rust run with-
the
cover of
for - maintenance purposes, care
shoo Id
b
taken to
assure- that - the - v_ehi- -
cle's interior is welt
ventilated . -
ENGINE COMPARTMENT
LIGHT
The optional engine compartment
light (lo-
cated behind
right front access door) is
turned
ON when access
door is opened . The light, at-
tached to a 25-foot
cord, may be removed from
engine compartment for use
as necessary .
A twin
post hoist of sufficient
capacity and
with proper
adapters and/or
fittings must be
used .
Front hoisting position
is the front engine
crossmember .
Rear hoisting must be done at
the rear sus-
pension brackets . If an "I" beam type
adapter
is used it
should be approximately 82
inches in
length to
gain adequate support at
suspension
brackets .
If vehicle is to
be placed on safety stands
for
maintenance or
repairs, the hoisting points
should be used .
