Your panel of switches may not appear
exactly as they do in the examples above, but
they should be similar.
The switch positions on your hand-held
transmitter may be labeled, as follows:
• A switch in the up position may be labeled
as “Up,” “+,” or “On.”
• A switch in the down position may be
labeled as “Down,” “−,” or “Off.”
• A switch in the middle position may be
labeled as “Middle,” “0,” or “Neutral.”

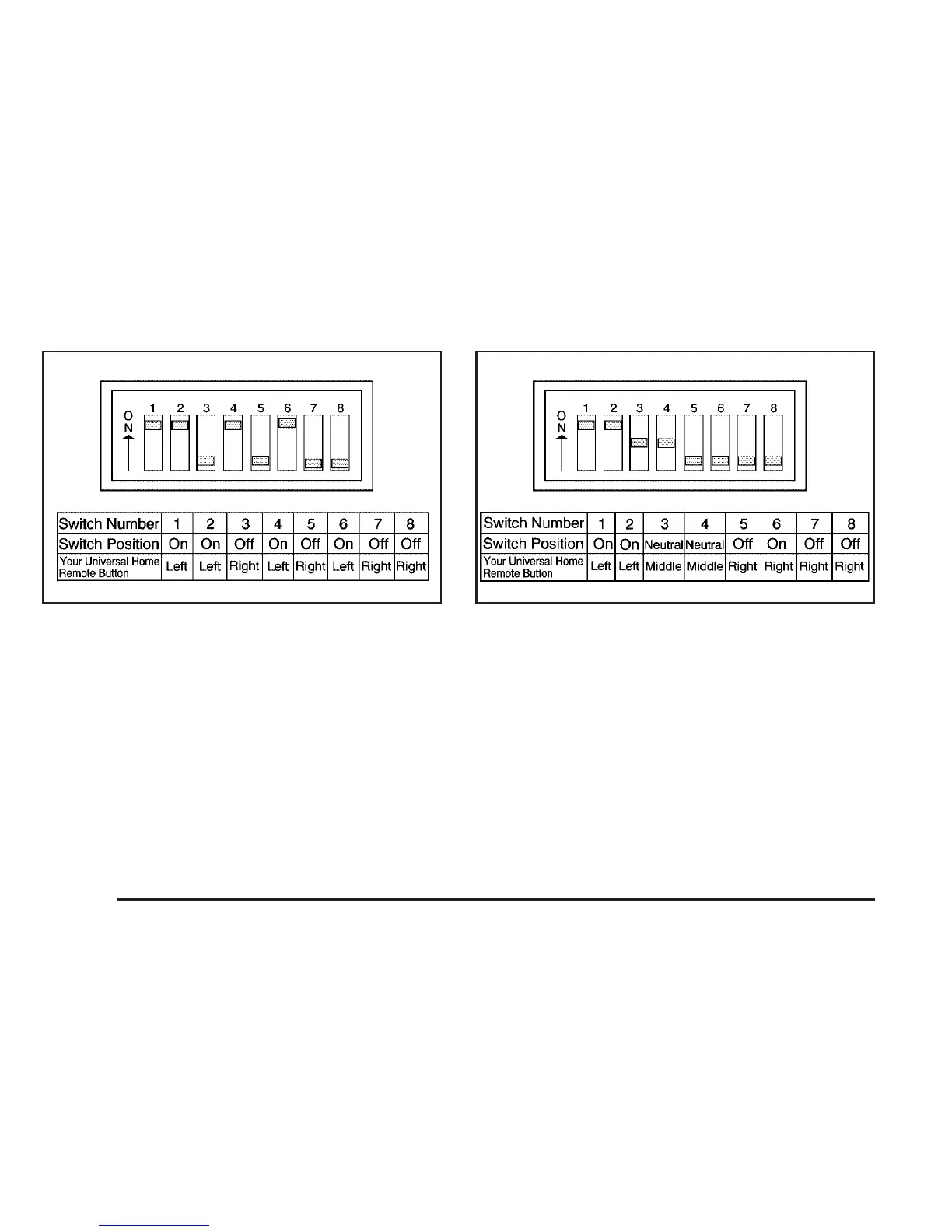

Example of Eight Dip Switches with Two Positions Example of Eight Dip Switches with Three Positions
158
