336 VEHICLE CARE
Fuses Usage
26 Engine control
module
27 Injectors/Ignition 2
28 Charged air cooler
29 Transmission aux oil
pump/Transmission
reverse lock out
30 Injectors/Ignition 1
31 Emissions 1
32 Emissions 2
33 Starter solenoid
34 –
35 –
36 Starter pinion
37 AC clutch
38 –
39 –
40 –
41 –
42 Water pump
43 –
Fuses Usage
44 –
Relays Usage
47 –
48 Front wiper speed
49 Front wiper control
51 –
52 Engine control
module
53 Starter solenoid
54 Starter pinion
55 –
57 AC clutch
58 –
Instrument Panel Fuse
Block
The instrument panel fuse block is in
the end of the driver side of the
instrument panel.

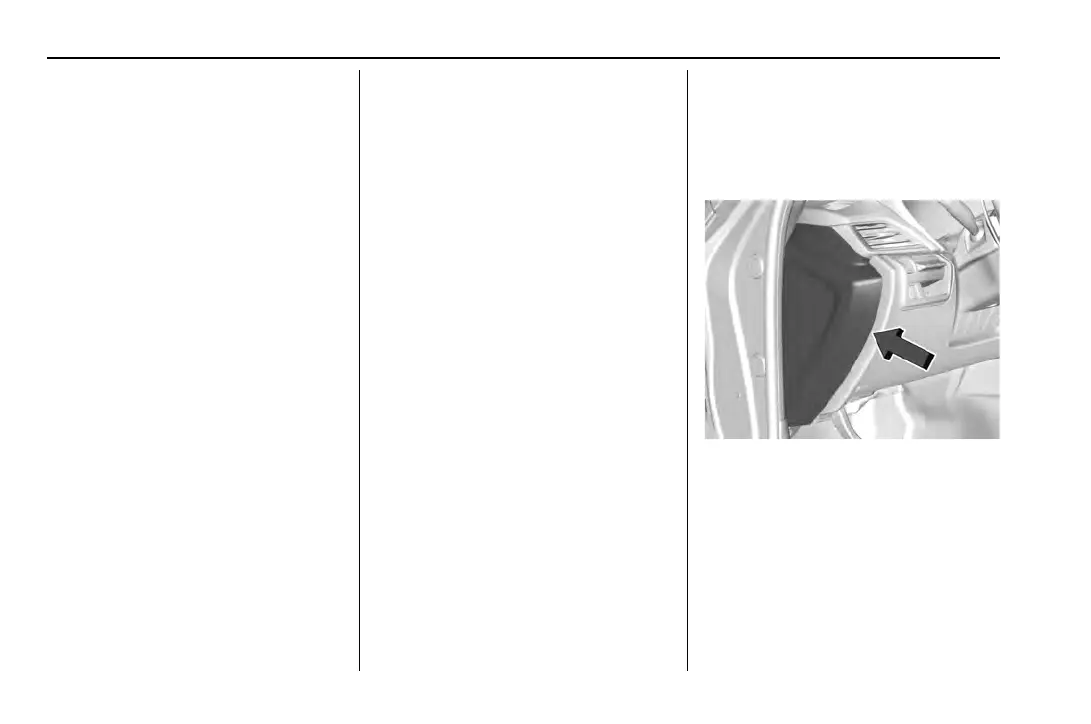

To access the fuses, remove the end
panel by gently prying with a plastic
tool near each clip, beginning at the
point shown.
